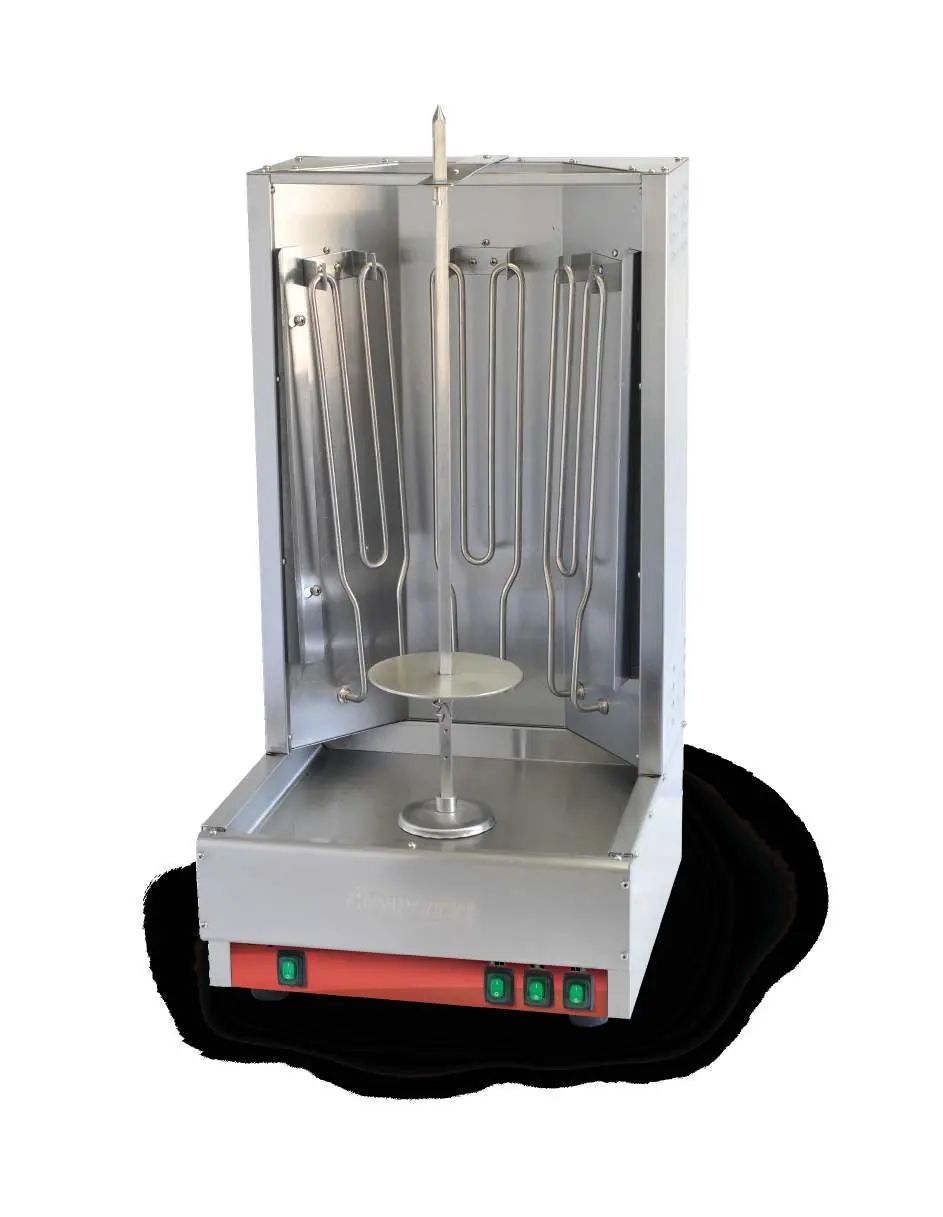

User Manual for Avantco Electric Vertical Broiler 177VBE101A and 177VBE102M
Comprehensive user guide for Avantco Electric Vertical Broilers 177VBE101A and 177VBE102M. Includes installation, operation, meat cone loading, cleaning, maintenance, and safety instructions.
Quick answers from the manual
Quick answer
- The Avantco Electric Vertical Broiler is designed for commercial cooking of meat cones (gyros, shawarma). It requires a grounded power connection, level installation, and daily cleaning of the basin and spit assembly. p. 1, 6
Key actions
- Load the meat cone by placing the spit assembly through the cone and securing it in the easy-load latch. p. 6
- Clean the unit daily by removing grease with a non-scratch scraper and washing the basin and spit assembly. p. 8
First start
- Wash the protective oil from all surface parts and the tank interior with hot soapy water before first use. p. 5
Problems and fixes
Cone not turning
Check if the lower part of the spit assembly is seated in the motor hole properly.
p. 6Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| 177VBE101A Power | 1750W | Power consumption for the 20 lb capacity model. | p. 4 |
| 177VBE102M Power | 4170/5550W | Power consumption for the 65 lb capacity model. | p. 4 |
Where to find it in the PDF
- Specifications p. 4
- Parts Diagram p. 11, 12
Table of contents
Manual images
Click an image to enlargeQuick Guide
This manual provides essential instructions for the Avantco 177VBE101A and 177VBE102M Electric Vertical Broilers. These units are designed for commercial, indoor use only. Always inspect the unit for damage before use and ensure it is installed on a level, non-combustible surface.
Installation
Electrical Connection: Ensure the unit is connected to a properly grounded power socket with the correct voltage. 177VBE101A requires 120V (NEMA 5-15P), while 177VBE102M requires 208/240V (NEMA 6-30P). Do not use multiple sockets or extension cords.
Clearances: Maintain a minimum clearance of 12 inches (30 cm) from sides and back for combustible construction, and 4 inches (10 cm) for non-combustible construction. Keep 16 inches (41 cm) away from open-top flame units.
Before First Use: Thoroughly wash the protective oil from all surface parts and the tank interior using hot soapy water. Rinse and dry completely.
Operation
Start Up: Connect the power supply, turn on the motor switch to rotate the spit, and flip the heater switch(es) to begin cooking. Note that the 177VBE102M has three independently controlled heating elements.
Loading Meat Cones: Place the spit assembly through the cone, ensuring the smaller diameter is supported on the round disk. Secure the spit assembly into the easy-load latch at the top and lower it into the base to engage the motor drive. Keep meat 3-5 inches from the heat source.
Cooking Guidelines: Meat must cook continuously until carved. Do not turn the unit off during the day to compensate for slow periods. Ensure meat reaches a minimum internal temperature of 158°F (beef) or 170°F (poultry/pork).
Cleaning and Maintenance
Daily Cleaning: Cut power and allow the unit to cool completely. Use a non-scratch scraper to remove excess grease. Clean the basin, spit assembly, and grease protection cap daily with warm water and mild soap. Do not get water or soap into the motor gear assembly.
Heavy Cleaning: For stubborn deposits, use a non-metallic scouring pad. Never use wire brushes, steel wool, or corrosive cleaners like vinegar. Always rub with the grain of the stainless steel.
Specifications
- 177VBE101A: 120V, 1750W, 20 lb. capacity, 2.5 RPM.
- 177VBE102M: 208/240V, 4170/5550W, 65 lb. capacity, 2.5 RPM.
Manufacturer information
Avantco Equipment
Practical help
Common problems
Meat cone is not turning
Ensure the lower part of the spit assembly is seated properly in the motor hole.
Unpleasant smell or grinding noise
Stop use immediately and contact a qualified technician for inspection.
Meat not cooking evenly
Ensure meat is 3-5 inches from the heat source; higher placement on the spit cooks faster.
Before use
- Inspect the unit for any damage or defects.
- Ensure the unit is installed on a level, non-combustible surface.
- Verify the power supply matches the rating label.
- Wash protective oil from all surface parts and the tank interior.
- Check that the spit assembly is installed correctly.
Specs in practice
- NEMA 5-15P / 6-30P
- Standard plug types; ensure your wall outlet matches these configurations.
Images and diagrams

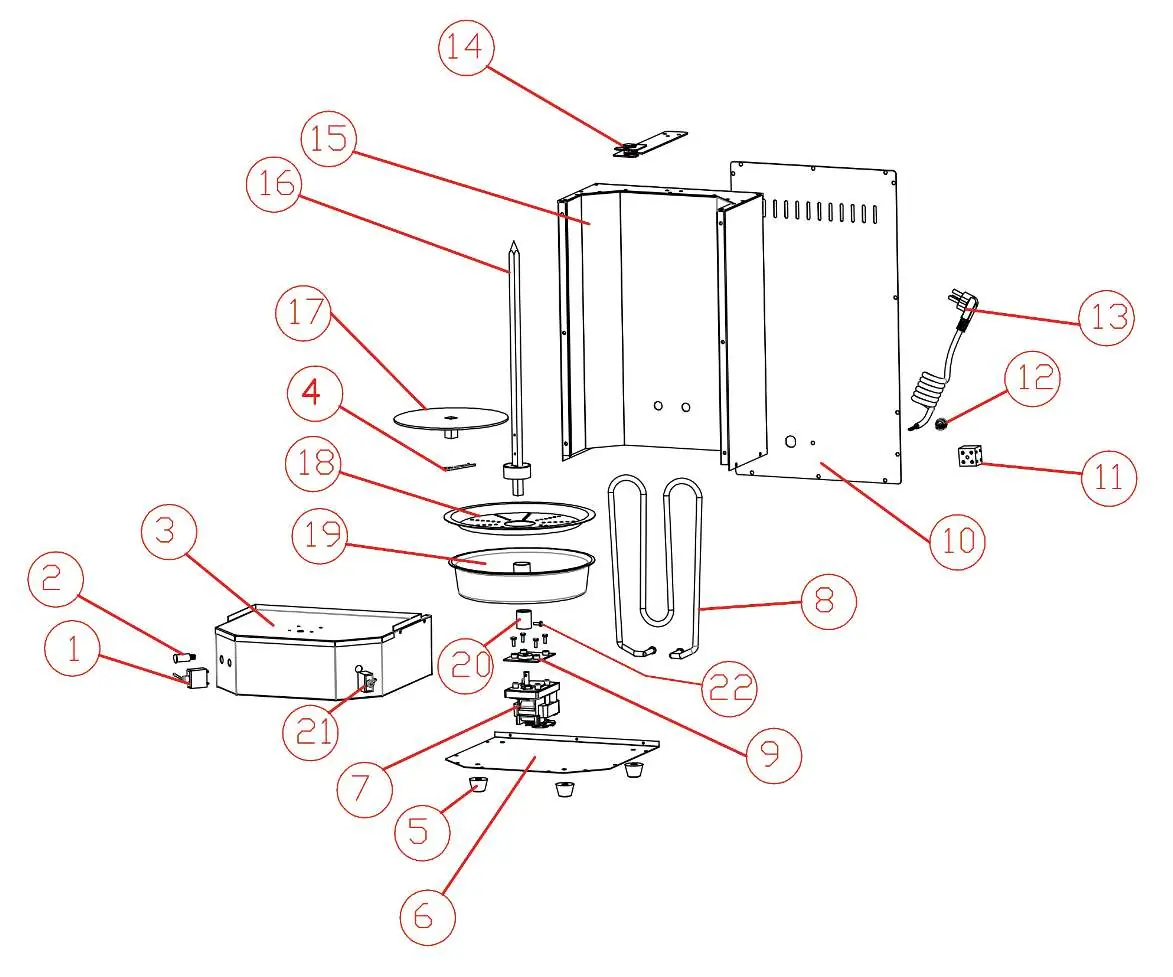

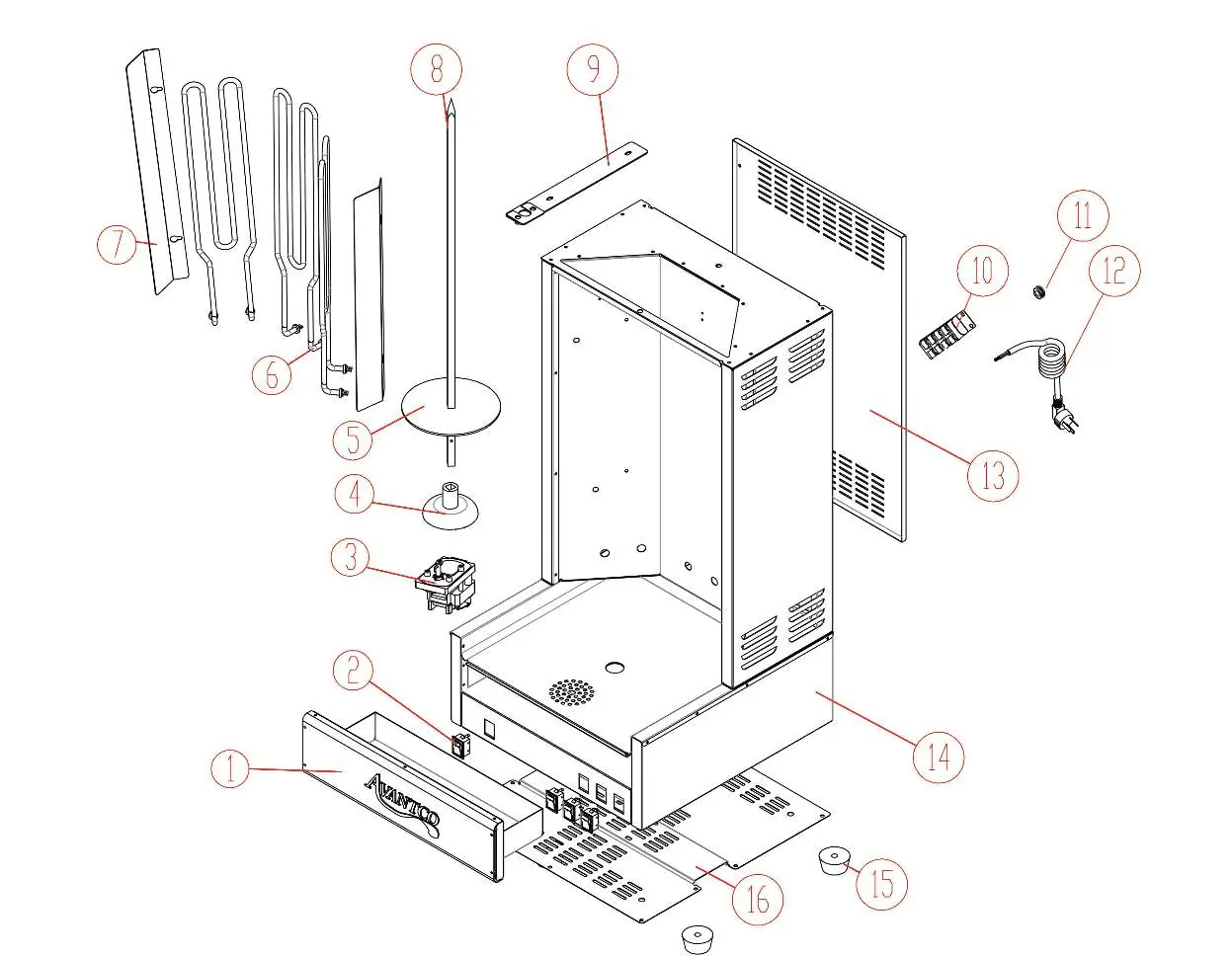

- Parts Diagram: Identifies all components including the motor, heater, spit assembly, and grease collection parts.

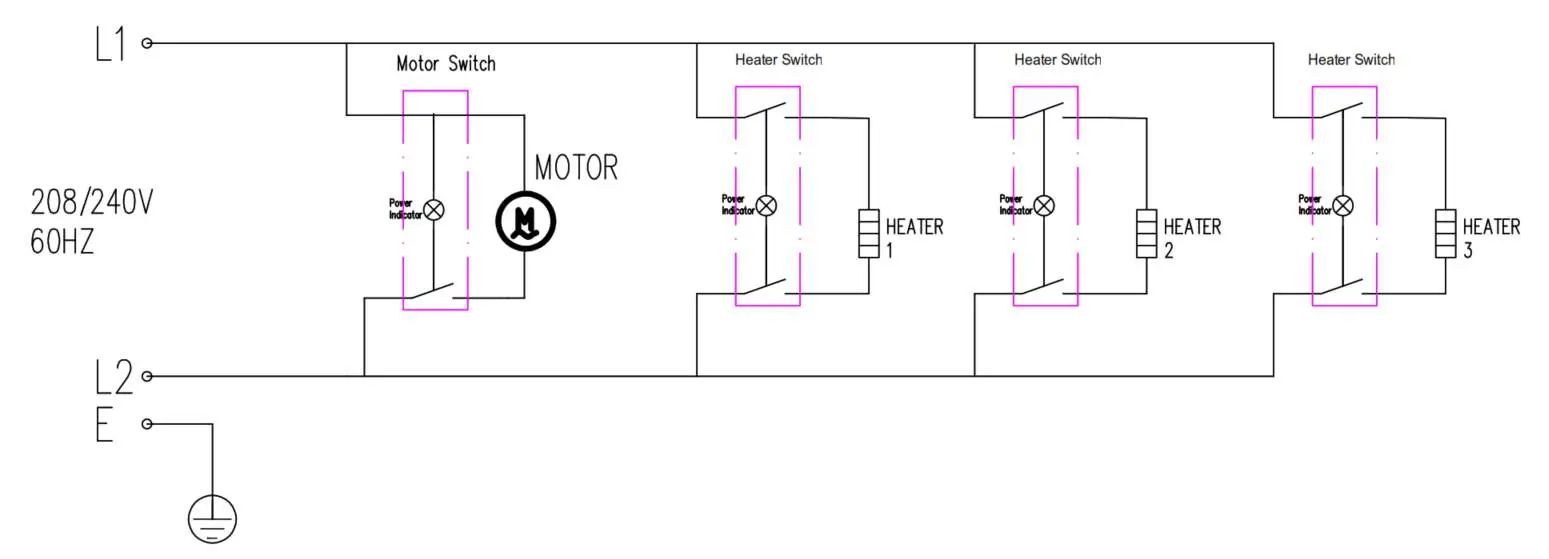

- Circuit Diagram: Shows the electrical wiring for the motor and heating elements.
Model compatibility
- 177VBE101A is for 120V power.
- 177VBE102M is for 208/240V power.
- Use only recommended accessories like the Avantco Kebab Slicer.
