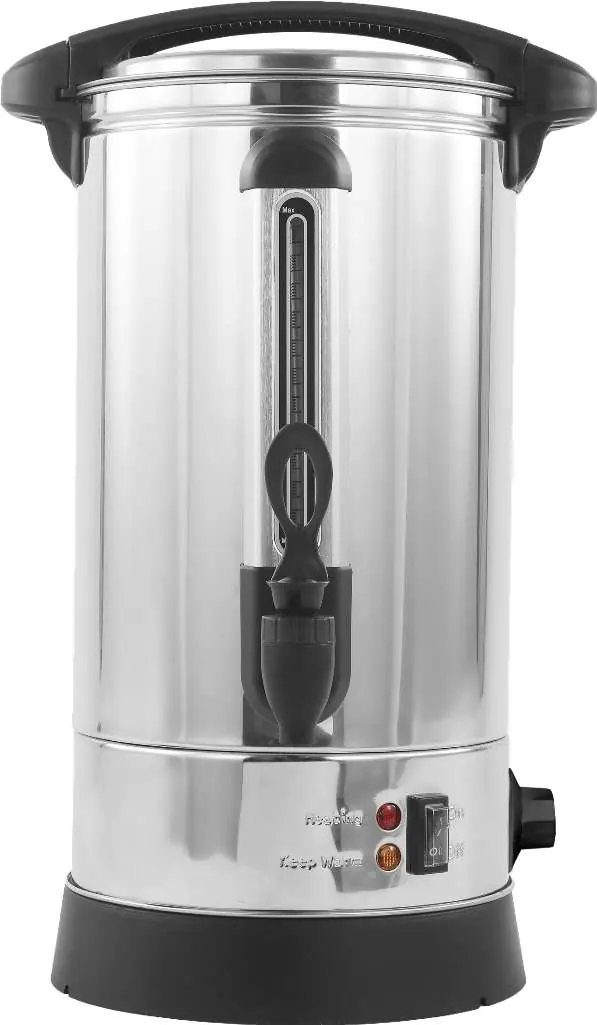

User Manual for Avantco Electric Water Boilers
Quick guide for Avantco Electric Water Boilers (177WB8L, 177WB10L, 177WB19L, 177WB29L). Includes safety instructions, operating steps, cleaning, and technical specifications.
Quick answers from the manual
Quick answer
- To operate the Avantco water boiler, fill it with water below the 'FULL' indicator, plug it into a grounded outlet, and press the 'ON' button. The unit will heat the water and automatically switch to 'KEEP WARM' mode once boiling temperature is reached. p. 3
Key actions
- Filling the boiler p. 3
- Cleaning the boiler p. 3
First start
- Rinse the unit with hot water before the first use. p. 3
Problems and fixes
Safety cut-off activates (Boil Dry)
Switch off the appliance from the mains and do not use until inspected by a qualified person.
p. 3Maintenance and reset
- The appliance incorporates a non-self-resetting thermal cut-out; if it triggers, it requires professional inspection. p. 2, 3
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| 177WB8L | 1300W, 120V/60Hz, 8L | Model specifications | p. 4 |
| 177WB10L | 1300W, 120V/60Hz, 10L | Model specifications | p. 4 |
| 177WB19L | 1500W, 120V/60Hz, 19L | Model specifications | p. 4 |
| 177WB29L | 1500W, 120V/60Hz, 29L | Model specifications | p. 4 |
Where to find it in the PDF
- Title Page p. 1
- Safety Instructions p. 2
- Operating Instructions p. 3
- Technical Specifications p. 4
Table of contents
Quick guide from the manual
This manual provides essential operating and safety instructions for the Avantco Electric Water Boilers (177WB series). Always ensure the appliance is placed on a flat, stable surface and that the voltage matches your outlet before use. Never operate the unit when empty to prevent damage to the heating element.
Safety Warnings
- Hot Surface: The exterior of the boiler becomes very hot during operation. Do not touch the surface.
- Electrical Safety: Ensure the plug is grounded. Do not use if the cord or plug is damaged. Do not immerse the appliance in water.
- Operation: Do not remove the lid while boiling. Position the lid so steam is directed away from the handle.
- Supervision: This appliance is intended for use in commercial or residential settings (households, cafes, restaurants) but should be overseen by trained personnel.
Instructions for Use
- Open the lid and fill with water, ensuring the level is below the FULL indicator.
- Connect the plug to a grounded power outlet.
- Press the ON button. The red pilot lamp will light up, and the water will begin to heat.
- Once boiling temperature is reached, the KEEP WARM pilot lamp will illuminate, and the unit will maintain the temperature.
- To turn off, press the ON/OFF switch again and unplug the unit.
Cleaning & Maintenance
Regular maintenance is required to ensure the longevity of the appliance.
- Daily Cleaning: Unplug the unit, pour out remaining water, and allow it to cool completely before cleaning.
- Procedure: Remove the lid, add a small amount of hot water, brush the sides, and rinse until clean. Use a soft cloth to wipe the exterior.
- Restrictions: Do not use abrasive materials. Do not clean with a water jet. Do not immerse the unit in water.
- Descaling: Perform regular descaling to prevent limescale buildup, which can reduce the appliance's lifespan.
Boil Dry Protection
The unit features a built-in prevent boil dry function. If the appliance runs out of water, the fuse of the heating element will automatically cut off to prevent damage. If this safety cut-off activates, switch off the appliance from the mains and do not use it until it has been inspected by a qualified person.
Manufacturer information
Avantco Equipment
Practical help
Common problems
Boil dry protection activated
Switch off the appliance from the mains immediately. Do not use until inspected by a qualified person.
Limescale buildup
Perform regular descaling processes to maintain efficiency and extend the appliance's lifetime.
Before use
- Verify that the outlet voltage matches the product rating label.
- Place the boiler on a flat, stable surface away from the table edge.
- Rinse the boiler with hot water before first use.
- Ensure the water level is below the 'FULL' indicator.
- Ensure the plug is grounded and the cord is not damaged.
Specs in practice
- Non-self-resetting thermal cut-out
- Safety feature that permanently cuts power if the unit overheats due to being empty.
Model compatibility
- Requires a 13 Amp plug.
- Indoor use only.
- Not intended for use by persons with reduced physical, sensory, or mental capabilities without supervision.
