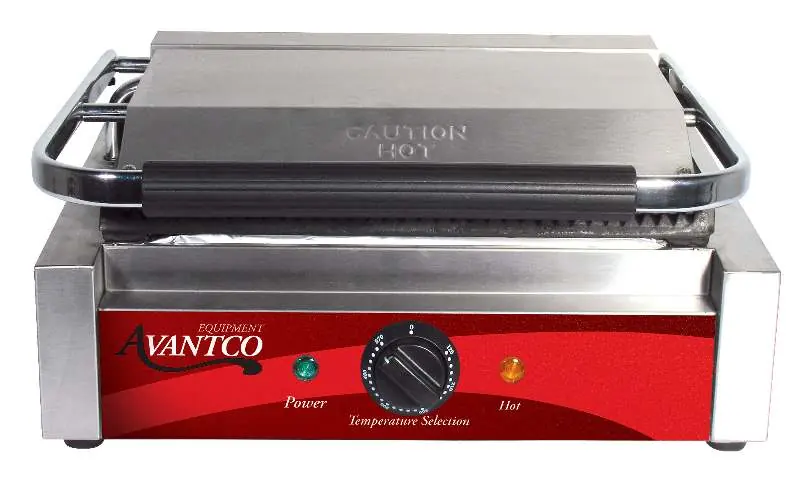

User Manual for Avantco Panini Grill
Comprehensive user guide for Avantco Panini Grills. Includes operating instructions, first-time use procedures, cleaning, maintenance, troubleshooting, and parts diagrams for models 177P78, 177P84, 177P70S, 177P75SG, 177P85S, and 177P88SG.
Quick answers from the manual
Quick answer
- The Avantco Panini Grill is a commercial-grade appliance requiring a grounded 120V outlet. Before first use, you must preheat the grill to liquefy and remove the protective shipping oil. Always disconnect power and allow the unit to cool before cleaning. p. 2, 4, 5
Key actions
- Remove protective oil before first use p. 4
- Adjust hinge tightness p. 6
First start
- Preheat the grill until the protective oil liquefies, then wipe clean with a soft cloth. p. 4
Problems and fixes
Grill plates do not heat
Replace defective controller or heater.
p. 6
No action when power is turned on
Replace fuse or reset circuit breaker.
p. 6Maintenance and reset
- Disconnect power and allow the machine to cool before cleaning. p. 3, 5
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Voltage | 120V, 60 Hz | Required power supply. | p. 4 |
| Temperature Range | 120°F - 570°F | Operating temperature range. | p. 4 |
Where to find it in the PDF
- Specifications p. 4
- Parts Diagrams p. 7, 9
Table of contents
Manual images
Click an image to enlargeQuick Guide
This manual provides instructions for the Avantco Panini/Sandwich Grill. This equipment is intended for commercial use only and must be connected to a grounded 120V power outlet. Before first use, you must remove the protective food-safe oil coating from the plates. Always disconnect power and allow the machine to cool before cleaning.
Operating Instructions
- Ensure the power cord is connected to a proper 120V, 60Hz source.
- Verify the power indicator light is on.
- Set the desired temperature. The warm-up time is approximately 20 minutes. The heating indicator will cycle on and off as the grill maintains the set temperature.
- Once the set temperature is reached, lift the top grill using the black handle.
- Lightly grease the grill plates with vegetable oil.
- Place food on the grill and lightly press the handle down. Excess oil will collect in the grease tray.
- Remove food when cooked and turn off the machine when finished.
Instructions for First Time Use
To protect the plates during transport, a layer of food-safe oil was applied. This must be removed before use:
- Preheat the grill until the oil liquefies.
- Carefully wipe away the melted oil with a clean, soft cloth.
- Once all oil is removed, the grill is ready for use.
Cleaning and Maintenance
- Daily Check: Visually inspect for damage or frayed power cords before every use. Ensure the machine is on a level surface.
- Cleaning: Disconnect the machine and allow it to cool completely. Use a damp towel with a non-corrosive cleaner. Do not immerse the unit in water or spray water onto the grills.
- Storage: Store in a dry, clean area when not in use.
Troubleshooting and Hinge Adjustments
If the grill plates do not heat, the temperature cannot be controlled, or there is no power, contact a qualified technician. Do not use the machine if these issues occur.
Hinge Adjustment: If the hinge is too tight or too loose:
- Open the back cover using a Phillips head screwdriver.
- Use an Allen wrench to adjust the tightness until the lid feels natural to open and close.
- Add food-safe grease to the hinge while moving the top shell to lubricate it.
- Close the back cover.
Specifications
The Avantco Panini Grill series operates at 120V, 60Hz. The recommended temperature range for normal use is 392°F - 482°F. The unit is intended for use in environments where room temperature is below 113°F and humidity is below 85%.
Manufacturer information
Avantco Equipment
Practical help
Common problems
Grill plates do not heat
Check for a defective controller or heater; requires replacement by a qualified technician.
Temperature cannot be controlled
Defective controller; requires replacement.
No power when turned on
Check for a defective fuse or open circuit breaker; reset or replace.
Hinge is too tight or too loose
Adjust the hinge tightness using an Allen wrench after opening the back cover.
Before use
- Ensure the unit is connected to a grounded 120V power outlet.
- Verify the machine is placed on a level countertop.
- Inspect the power cord for any signs of damage or fraying.
- Remove the protective shipping oil from the grill plates by preheating and wiping with a soft cloth.
- Ensure the room temperature is below 113°F and humidity is below 85%.
Specs in practice
- Temperature Range
- 120°F - 570°F (Recommended normal use: 392°F - 482°F).
- Warm-up Time
- Approximately 20 minutes.
Images and diagrams
- Parts diagrams are provided for both single and double grill configurations to assist in identifying replacement parts.
- The diagrams illustrate the assembly of the heating elements, thermostats, and hinge mechanisms.
Model compatibility
- Intended for commercial use only.
- Indoor use only.
- Do not use caustic or abrasive cleaning products.
