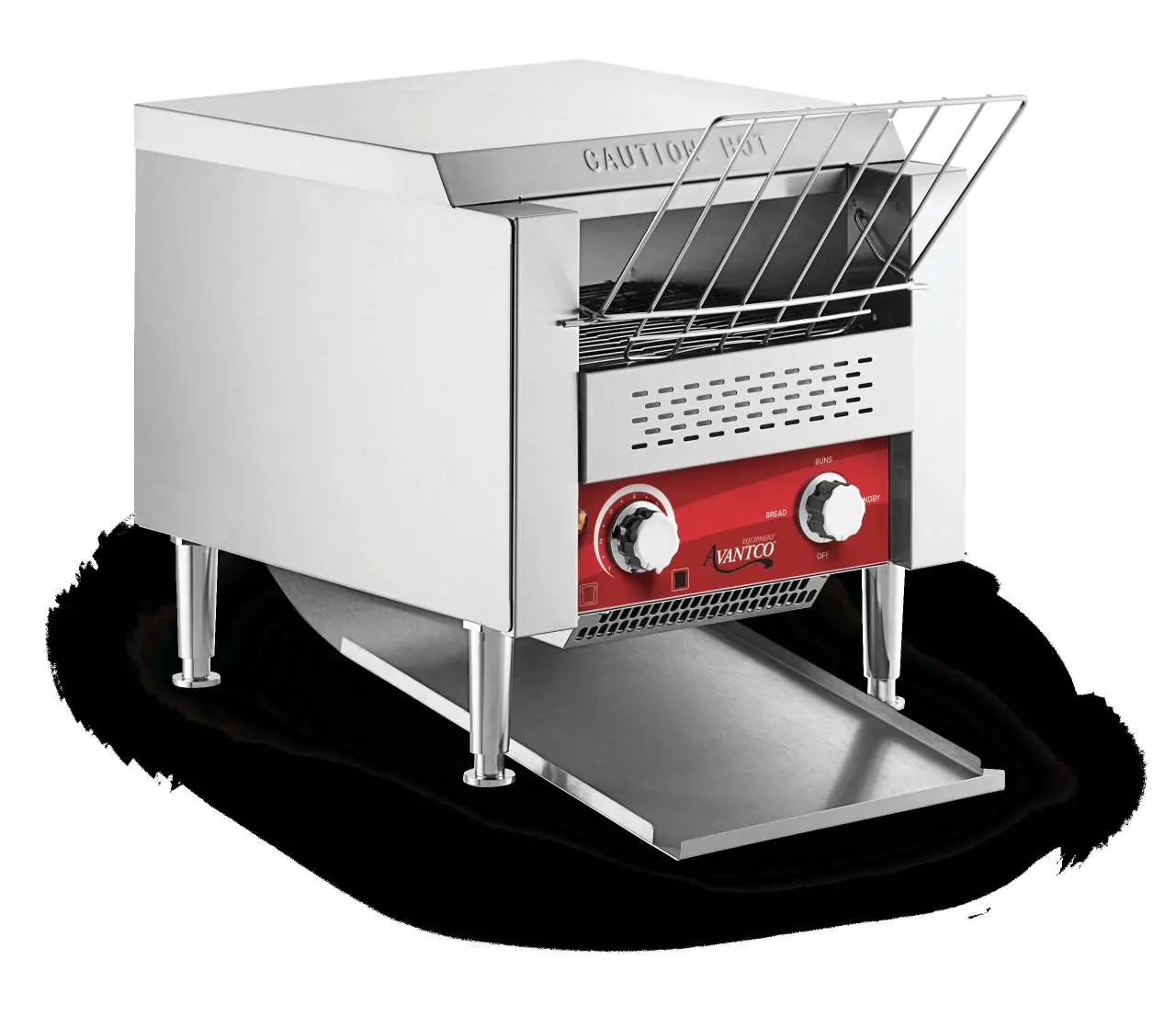

Avantco Adjustable Speed Conveyor Toaster 184T140 Series
Quick guide for Avantco conveyor toasters (184T140, 184T3300, 184T3600). Includes installation, discharge assembly, operation modes, cleaning, and troubleshooting.
Quick answers from the manual
Quick answer
- The Avantco conveyor toaster is designed for commercial bread and bun toasting. Operation involves setting the speed/color control and selecting the appropriate heat mode (Standby, Bread, or Buns). Always preheat for 20-25 minutes before use. p. 6
Key actions
- Preheat the unit for 20-25 minutes before toasting. p. 6
- Clean the crumb tray by pulling it forward and washing with soapy water. p. 7
First start
- Place on a flat surface, install feet, clean, and preheat for 20-25 minutes. p. 6
Problems and fixes
Unit not working at all
Check if plugged in or if the unit is overheated (ensure hot air is directed away).
p. 8Maintenance and reset
- Clean conveyor belt by running in Standby mode at slow speed and using an abrasive pad. p. 7
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| 184T140 Belt Width | 10" | Width of the conveyor belt. | p. 4 |
| 184T3600B/D Belt Width | 14.5" | Width of the conveyor belt. | p. 4 |
Where to find it in the PDF
- Safety Information p. 3
- Specifications p. 4
- Discharge Assembly p. 5
- Operation p. 6
- Cleaning p. 7
- Troubleshooting p. 8
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This manual covers the operation and maintenance of Avantco Adjustable Speed Conveyor Toasters. These units are designed for commercial use only. Key safety precautions include keeping cords away from water, not using the unit outdoors, and never toasting pre-buttered bread or melting cheese, as this may void the warranty and create a fire hazard.
Before first use, ensure the unit is on a flat, level surface with the feet installed. Allow the unit to preheat for 20-25 minutes to reach the correct operating temperature.
Installation and Clearance
Proper ventilation is essential for safe operation. Maintain the following clearances:
- Front Discharge Operation: Minimum 3" clearance along sides and rear; 12" in front.
- Rear Discharge Operation: Minimum 3" clearance along sides; 12" in front and rear.
- General: Do not place under shelving or closer than 12" from the ceiling.
Discharge Assembly
The unit can be configured for front or rear discharge:
- Front Discharge: Pull the metal plate up to the closed position and latch. Slide the longer chute underneath the toaster and rest it on the interior ledge.
- Rear Discharge: Push the metal plate down to the open position. Loosen the two rear screws, slide the smaller chute's keyholes behind the screws, and tighten to secure.
Operation Instructions
Controls vary by model:
- Speed/Color Control: Determines the time the product spends in the heating chamber. Slower speed results in darker toast.
- Heat Control (184T140): Features OFF, STANDBY (25% power), BREAD (full power), and BUNS (top element only).
- Heat Control (184T3300/3600): Features independent top and bottom element control (settings 0-6).
Cleaning and Maintenance
Caution: Do not immerse the appliance in water. Use only a damp cloth or sponge with soapy water. Do not use steel wool.
- Exterior & Crumb Tray: Unplug the unit and let it cool. Pull the crumb tray forward to empty and clean.
- Conveyor Belt: Turn the unit on to Standby mode and set to slow speed. Use an abrasive pad in a back-and-forth motion to remove baked-on product, then wipe with a damp cloth.
Manufacturer information
Avantco Equipment
Practical help
Common problems
Toast is too light
Increase speed/color control setting or allow 20-30 minutes for the unit to fully warm up.
Toast is too dark
Decrease speed/color control setting.
Unit toasts on one side only
Check if set to 'Buns' mode (184T140) or ensure both element dials are engaged (184T3300/3600).
Tripping circuit breaker
Verify circuit breaker is sized properly for the toaster or contact an authorized service agent for internal wiring faults.
Before use
- Ensure the unit is on a flat, level surface.
- Install the adjustable feet (do not operate without them).
- Clean the unit thoroughly.
- Preheat for 20-25 minutes before first use.
- Verify voltage and outlet compatibility.
Specs in practice
- Speed/Color Control
- Adjusts conveyor belt speed; slower speed equals darker toast.
- Standby Mode
- Runs belt and elements at 25% capacity to conserve energy while keeping the unit warm.
Images and diagrams
- Front discharge assembly requires the metal plate to be latched up.
- Rear discharge assembly requires the metal plate to be pushed down.
- Stacking kit installation involves removing top cover screws and securing the bracket.
Model compatibility
- Commercial use only.
- Do not toast pre-buttered bread.
- Do not use to melt cheese or heat sandwiches.
- Indoor use only.
