User Manual for Baseus GaN2 Fast Charger 100W (CCGAN100CS)
Quick guide for the Baseus GaN2 Fast Charger 100W (CCGAN100CS). Learn about technical specifications, safety tips, and product features to ensure optimal charging performance.
Table of contents
Quick Guide
The Baseus GaN2 Fast Charger is a high-performance travel charger utilizing Gallium Nitride (GaN) technology to provide 100W of power. It supports fast charging protocols including PD3.0 and PPS. For optimal performance, always use the included 5A 100W Type-C to Type-C cable.
Product Overview
The charger features a compact design with a 90-degree foldable pin for portability. The main components include:
- Indicator Light: Displays the power status of the charger.
- Type-C Output: The primary port for connecting your devices.
- 90-degree Pin Design: Foldable plug for easy storage.
Technical Specifications
- Model No.: CCGAN100CS
- Input: 100-240V~, 50/60Hz, 2.5A Max
- Output: 5V/12V=3A, 9V/15V/20V=5A
- Cable: Type-C to Type-C, 1.5m, 5A 100W
- Dimensions: 67 x 30 x 55mm
- Weight: Approximately 178g
Safety and Usage
To ensure safe operation and longevity of the device, please adhere to the following guidelines:
- Environment: Use only in non-tropical areas with an altitude below 2000m.
- Temperature: Do not store or use the product in high-temperature environments.
- Handling: Avoid strong magnetic fields, knocking, throwing, trampling, or squeezing the device.
- Maintenance: Disassembly by non-professionals is strictly prohibited.
- Usage: Do not use with household appliances or loads that exceed the output current of the charger.
Manufacturer information
Baseus
Practical help
Common problems
Device not charging
Ensure the cable is securely connected to both the charger and the device. Verify the power outlet is functional.
Overheating during use
Ensure the charger is used in a well-ventilated area and not covered. Check that the environment is not excessively hot.
Before use
- Verify the power source is within the 100-240V AC range.
- Use the included 5A 100W cable to ensure full charging speed.
- Inspect the charger and cable for any physical damage before plugging in.
- Ensure the device being charged is compatible with PD3.0 or PPS protocols for fast charging.

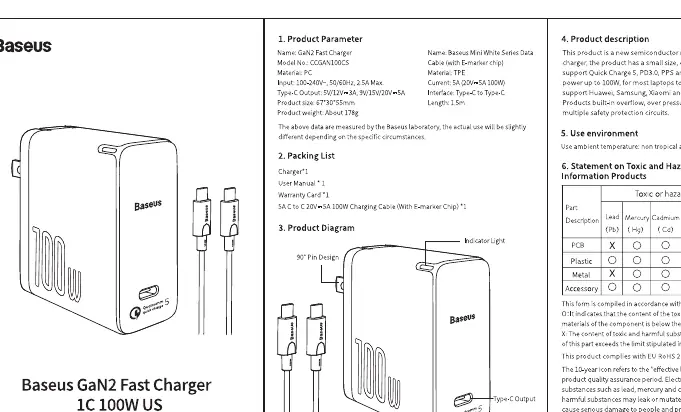

Images and diagrams
- The diagram illustrates the 90-degree foldable pin design for compact storage.
- It highlights the location of the Type-C output port and the indicator light.
Model compatibility
- Supports fast charging for Huawei, Samsung, Xiaomi, and other mobile devices.
- Designed for use in non-tropical climates at altitudes below 2000m.
