User Manual for Batavia MAXXPACK 18V Twinbrush

Quick guide for the Batavia MAXXPACK 18V Twinbrush (BT-CTB001). Learn how to assemble, operate, adjust the brush angle, and maintain your cordless power scrubber.

Table of contents

Manual images

Click an image to enlarge
Overview of device components Page 2 Attaching and changing the brush Page 3 Adjusting the tilt angle Page 3

Quick guide from the manual

The Batavia MAXXPACK 18V Twinbrush is a cordless power scrubber designed for domestic cleaning. Before first use, ensure all parts are present and undamaged. The device can be used dry or with water. Always remove the battery before performing any maintenance or adjustments.

Assembly

Connect the motor unit and power supply unit by aligning the tube ends. Pull the socket and plug out of the tube ends using the tug strap, connect them, and screw the tube ends together using the grip sleeve. Connect the hose to the motor unit and secure it with the retaining clip and attachment clip. For extended reach, you can mount the optional extension pole using the same connection procedure.

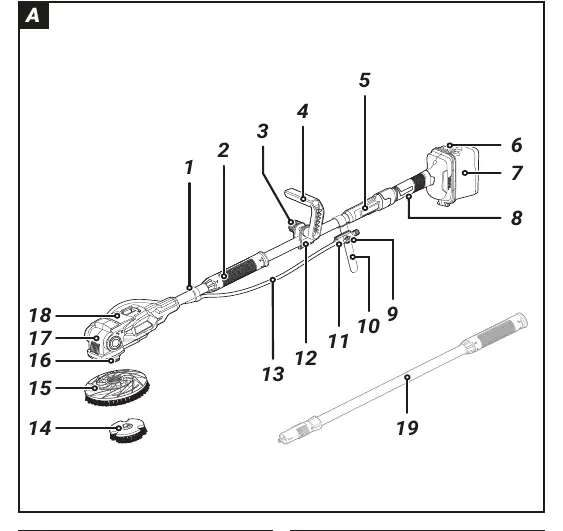

Overview of device components
Overview of device components

Operation

Insert the battery into the unit, ensuring the battery cover seal is clean and dry. To attach a brush, block the shaft using the spindle lock button and screw the brush on. Adjust the tilt angle of the brush head using the locking lever; keep it unlocked for floor cleaning and locked for overhead cleaning. Use the ON/OFF switch to operate the device, applying minimal pressure during use.

Attaching and changing the brush
Attaching and changing the brush
Adjusting the tilt angle
Adjusting the tilt angle

Maintenance and Cleaning

Keep the device clean. If brush bristles are deformed, immerse the brush in 90°C water for 30 seconds to restore their shape. Always remove the battery before performing maintenance.

Technical Data

The device operates on an 18V, 4000 mAh Li-Ion battery. The no-load speed is 200/400 min-1.

Manufacturer information

Batavia

Brand profile
Manufacturer website https://www.bataviastore.com Support https://www.bataviastore.com/en/help-center

Practical help

Common problems

Brush bristles are deformed

Immerse the brush in 90°C water for 30 seconds to restore the original shape.

Locking lever does not close properly

Adjust the inclination of the brush slightly.

Before use

  • Check all parts for damage in transit.
  • Ensure the battery cover seal and rubber edge are clean and dry.
  • Verify the brush accessory is installed correctly.
  • Ensure the battery is fully charged.
  • Check that the hose is properly connected and not restricted.

Specs in practice

Battery type
18 V, 4000 mAh, Li-Ion.
No load speed
200/400 min-1.
Sound pressure level
66 dB(A).

Images and diagrams

  • Fig A: Overview of all device components.
  • Fig B: Connecting the tube ends.
  • Fig C: Connecting the hose to the motor unit.
  • Fig F: Attaching and changing the brush.
  • Fig G: Adjusting the tilt angle of the brush head.

Model compatibility

  • Use only with Maxxpack batteries and chargers.
  • Do not use more than one extension pole with the device.
  • Use only accessories recommended by the supplier.
