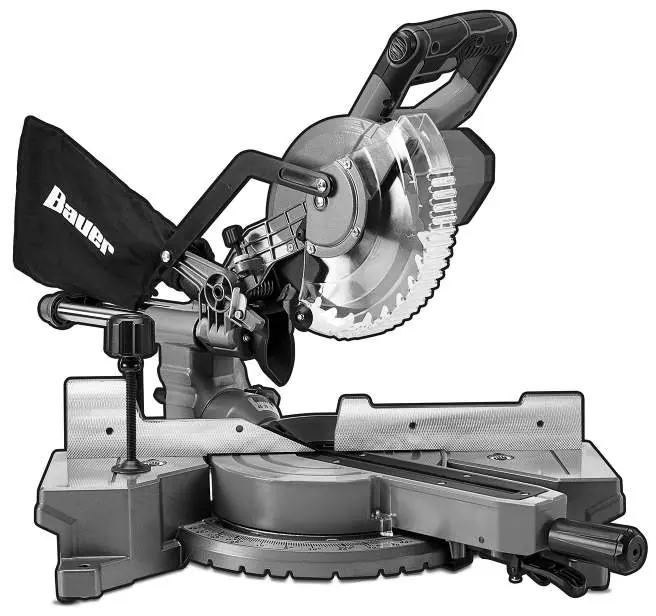

Bauer 2174C-BS 7-1/4" Sliding Miter Saw User Manual

Quick guide from the manual

The Bauer 2174C-BS is a 20V cordless sliding miter saw designed for cutting wood and wood-like products. Before use, ensure the saw is mounted to a stable surface, the battery is charged, and the lower blade guard operates freely. Always wear appropriate personal protective equipment, including eye and hearing protection.

Safety Information

• Work Area: Keep the area clean, well-lit, and free of children or pets.
• Personal Safety: Wear eye protection, avoid loose clothing, and keep hands at least 100 mm away from the blade.
• Battery Safety: Keep battery packs dry and away from metal objects. Do not incinerate or expose to temperatures above 265°F.
• Operation: Never cross hands over the cutting line. Always clamp the workpiece.

Specifications

• Rated No Load Speed: 3800/min
• Cutting Capacity (45° L): 2-1/2" x 6-1/8"
• Cutting Capacity (90° L/R): 2-1/2" x 8-5/8"
• Maximum Bevel: 47° Left
• Maximum Miter: 47° Left and Right
• Blade: 7-1/4" diameter, 5/8" arbor bore

Assembly and Setup

Mounting: Use the four bolt holes in the base to secure the saw to a stable support or bench.

Dust Extraction: Squeeze the metal collar wings on the dust collection bag and slide it over the dust outlet at the rear of the saw head.

Clamp Installation: Insert the clamp into the desired mounting hole and rotate the knob to secure the workpiece.

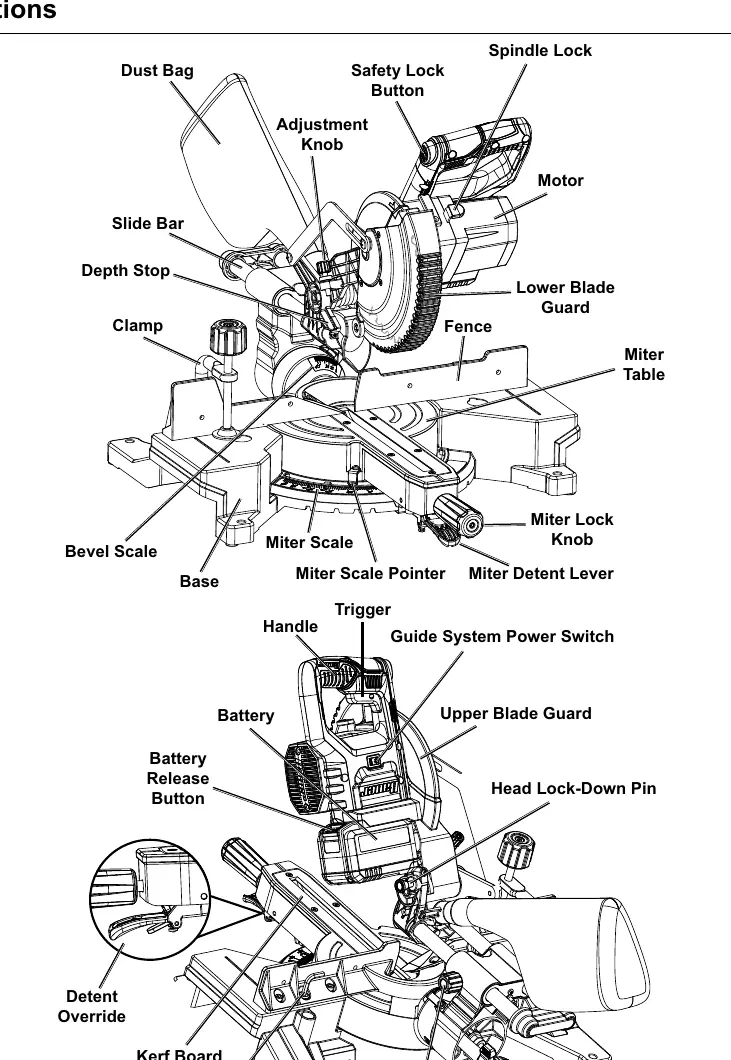

Operation

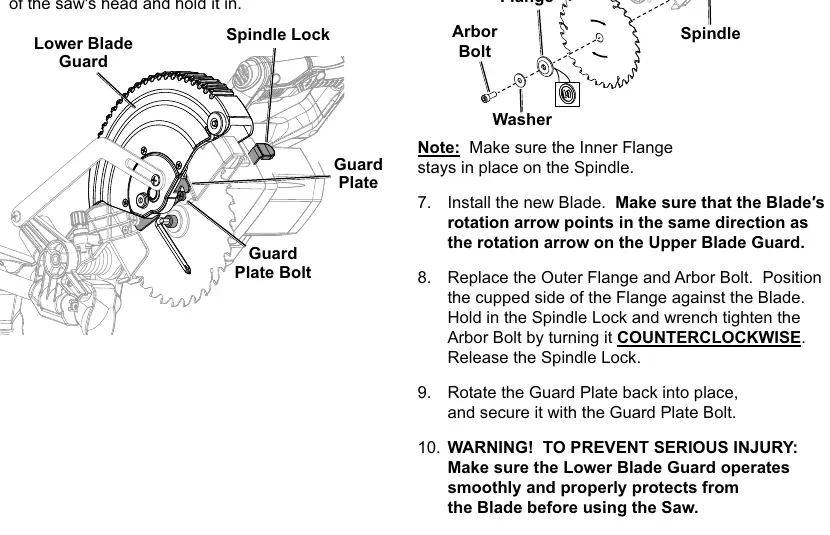

Tool Changing:

1. Remove the battery.
2. Raise the lower blade guard and loosen the guard plate bolt to move the guard plate.
3. Press the spindle lock and remove the arbor bolt (Note: Left-handed thread, turn clockwise to remove).
4. Replace the blade, ensuring the rotation arrow matches the upper guard.
5. Tighten the arbor bolt counter-clockwise and secure the guard plate.

Adjusting Miter Angle: Loosen the Miter Lock Knob, push down the Miter Detent Lock Lever, move the table to the desired angle, and tighten the knob.

Adjusting Bevel Angle: Loosen the Bevel Lock Knob, move the saw head to the desired angle, and tighten the knob. Use the Bevel Angle Lock Button for extended range.

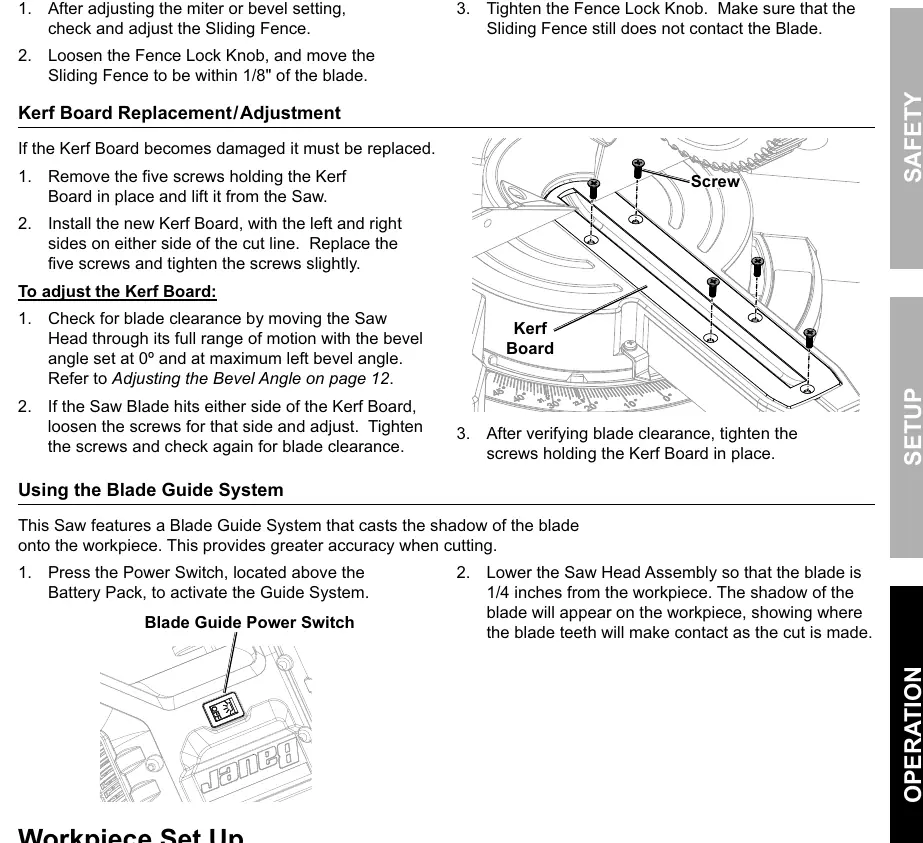

Maintenance and Calibration

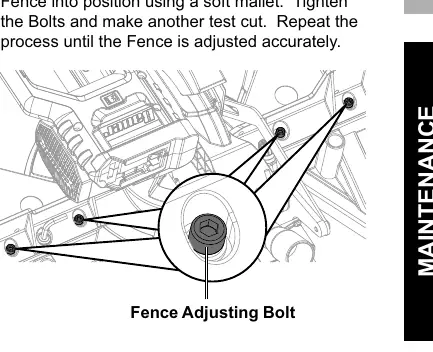

Fence Calibration: Ensure the fence is perpendicular to the blade. Use a carpenter's square against the blade and fence. Loosen the four fence adjusting bolts, tap the fence into position with a soft mallet, and retighten.

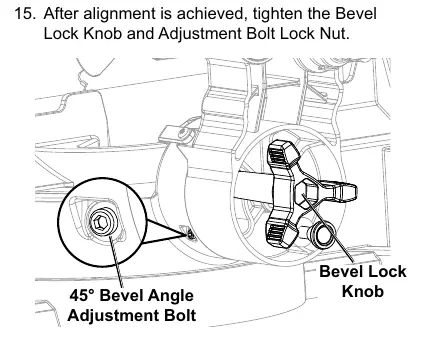

Bevel Calibration: Check the 0° and 45° angles using a square. Adjust the respective adjustment bolts on the saw head to ensure accurate cuts.

Troubleshooting

If the tool will not start, check the battery connection and charge. If the tool operates slowly, allow it to work at its own rate. For excessive noise or rattling, contact a technician for service.
