User Manual for Belleze 014-HG-41893 Harper TV Fire Stand
Quick guide for assembling and maintaining the Belleze 014-HG-41893 Harper TV Fire Stand. Includes weight limits, safety warnings, and assembly steps.
Table of contents
Manual images
Jump to the sectionQuick guide from the manual
The Belleze Harper TV Fire Stand requires two people for assembly, with an estimated assembly time of 100 minutes. Before beginning, ensure you have a hammer, screwdriver, and drill (not included). The unit is designed for flat-panel TVs with a maximum width of 75 inches. Always anchor the furniture to the wall to prevent tipping.
Safety and warnings
- Weight limits: The top panel supports a maximum of 70 lbs (31.8 kg). Other shelves support a maximum of 30 lbs.
- Tipping hazard: Serious or fatal crushing injuries may occur if the furniture tips over. Always use the included anti-tipping straps to secure the unit to a wall stud.
- Child safety: Keep small components, plastic bags, and packaging film away from children and pets to avoid choking or suffocation hazards.
- Usage: Do not climb or step on the furniture. Only place items on the product that meet the recommended size and weight limits.
Assembly instructions
The assembly process involves 27 steps. Key phases include:
- Preparation: Lay out all components and hardware on a flat surface, such as a carpet or empty carton, to prevent scratches.

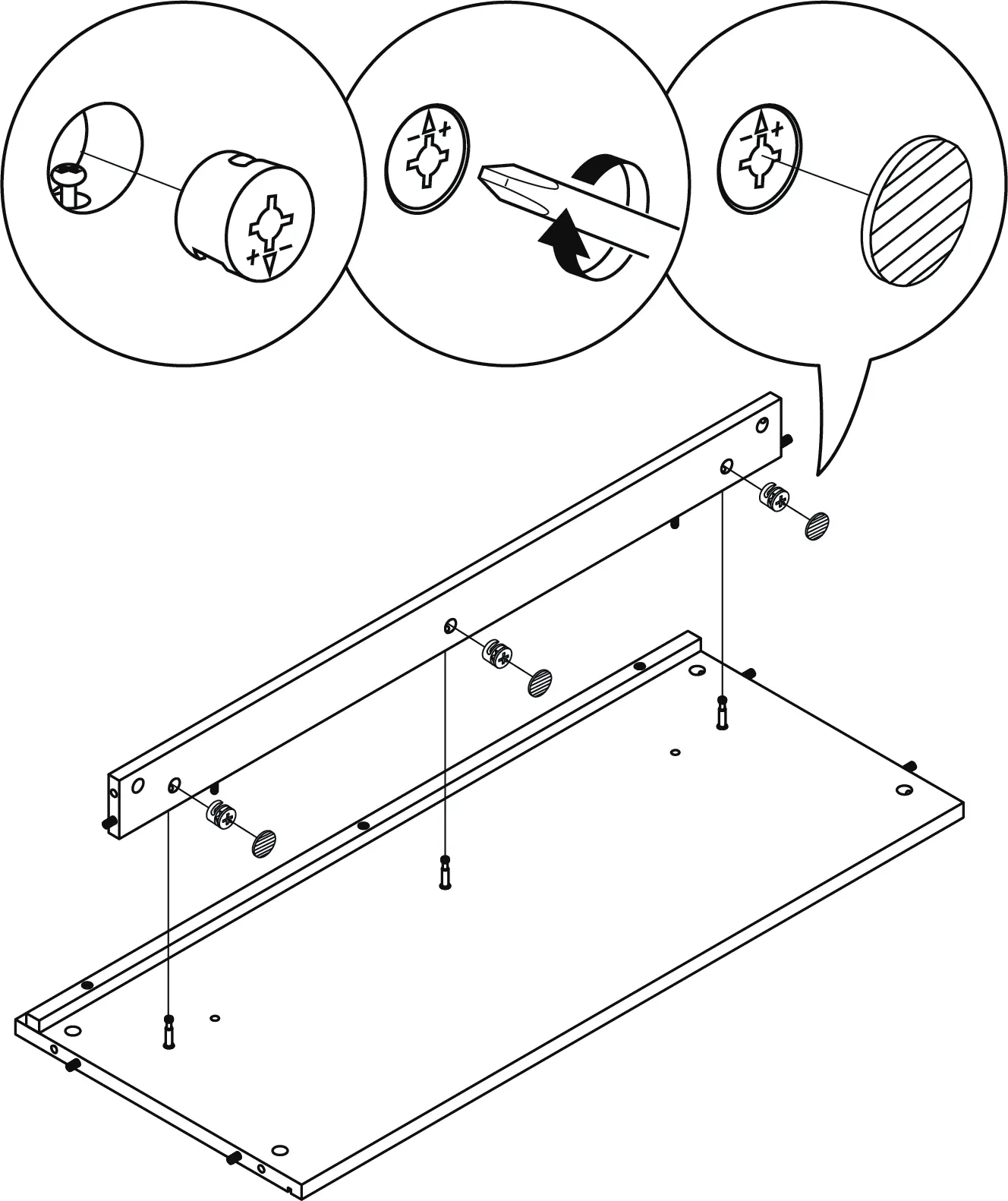

- Frame assembly: Attach cam bolts and wood dowels to the panels. Assemble the medial, center, and side panels to the bottom panel.

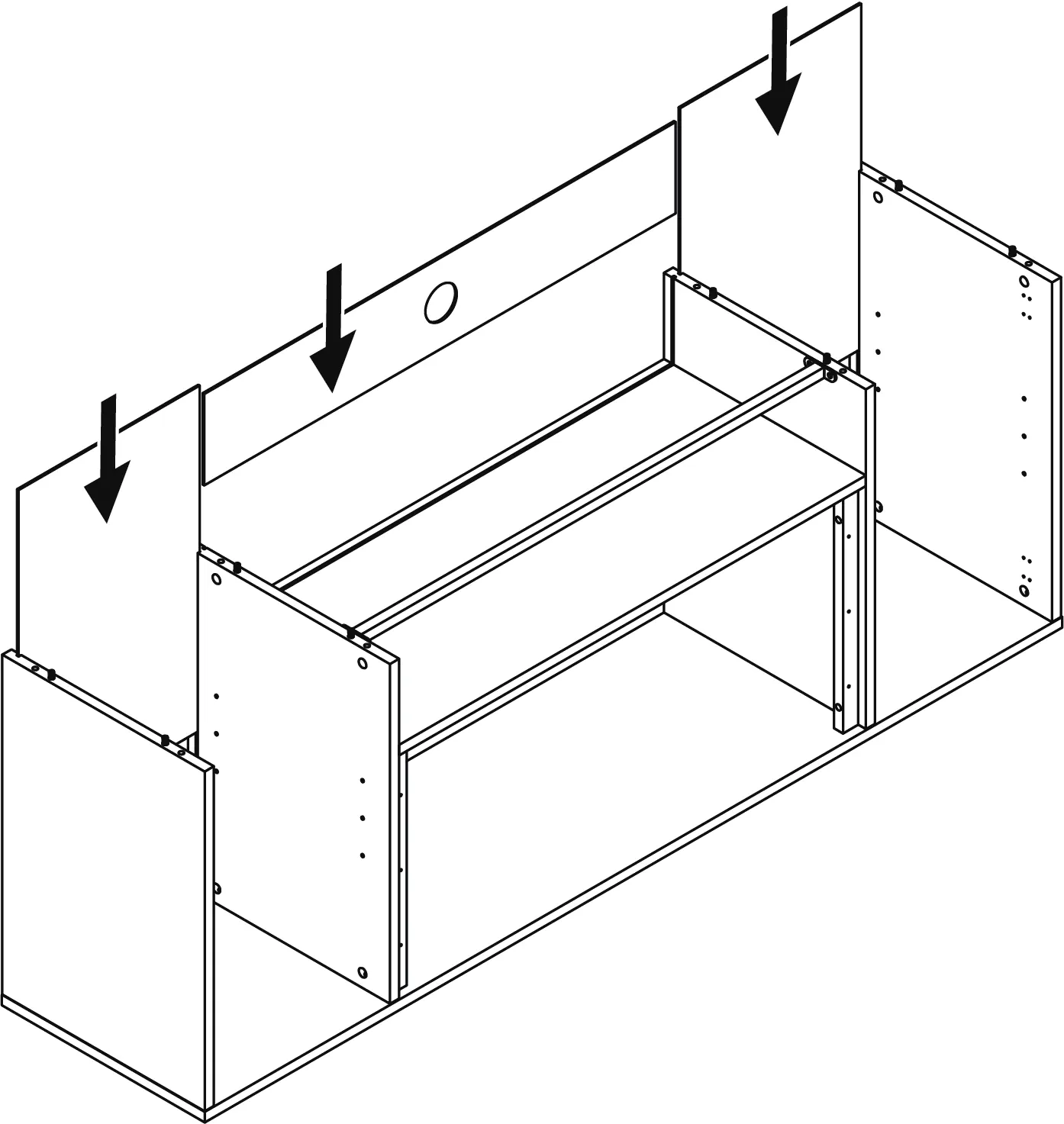

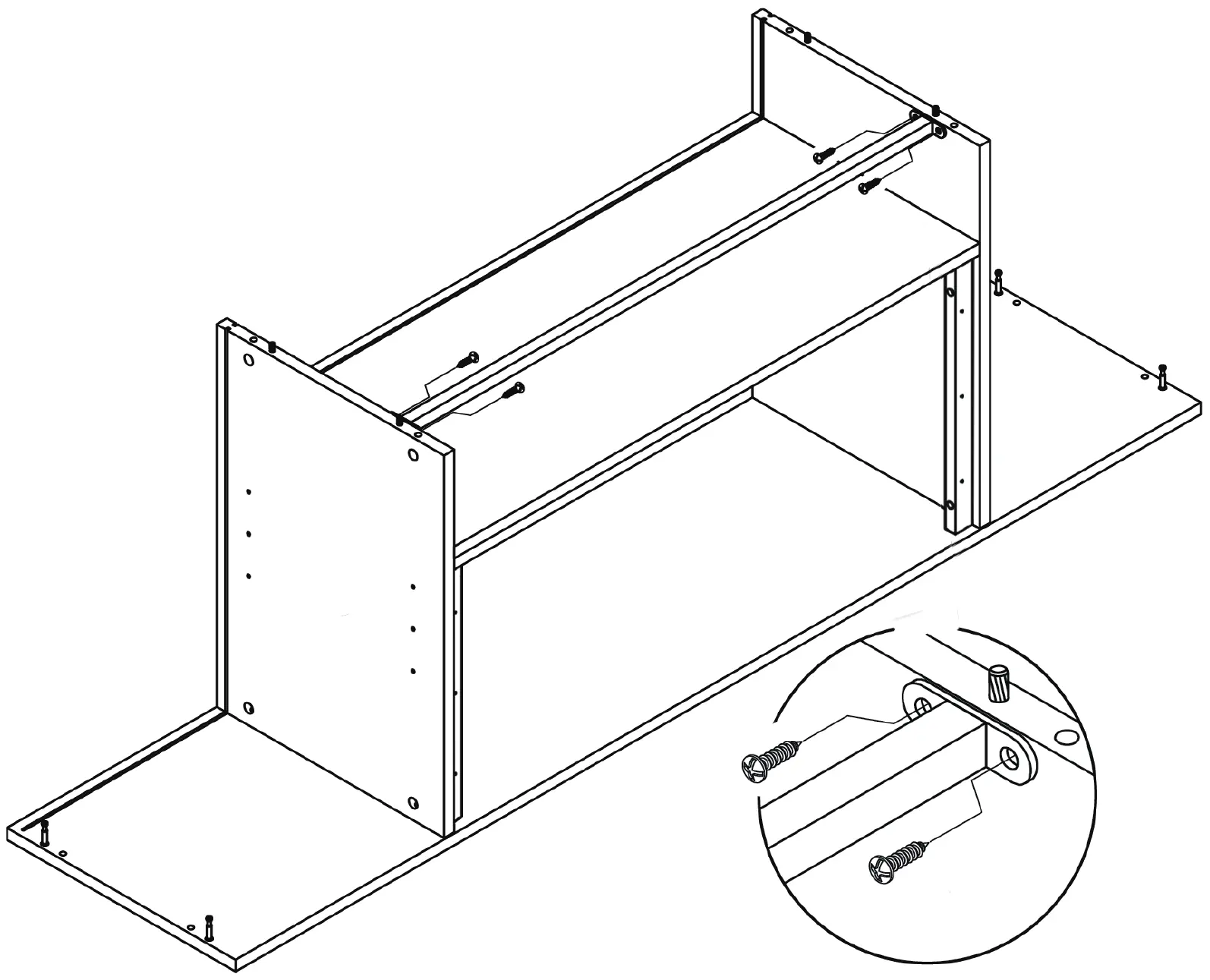

- Structure: Attach the support crossbar and metal crossbar. Slide in the back panels.
- Top panel: Attach the top panel to the stand structure.
- Legs: Assemble the leg frame (front, side, center, and back legs) and attach it to the bottom panel.
- Doors: Attach hinges to the cabinet doors and mount them to the stand. Adjust the hinges if the door clearance is uneven.
- Fireplace: Install the fireplace unit into the mantel opening and secure it with screws.
- Finishing: Place decorative crystals/rocks into the fireplace and snap on the front glass panel.
- Anchoring: Secure the unit to the wall using the provided anti-tipping straps.
Maintenance and care
- Tightening: Tighten all bolts and screws within the first 2 weeks of assembly. Check the tightness of all bolts every 2 months and tighten if necessary.
- Cleaning: Clean the surface with a lightly dampened cloth. A small amount of mild soap may be used if necessary. Dry the surface immediately.
- Restrictions: Do not use bleach or alcohol to clean the surface. Do not apply wood treatment to MDF parts. MDF will swell and distort if exposed to water.
Support
If you encounter difficulties or are missing parts, contact Belleze support at 1-800-682-6376 or email [email protected]. You can also register your product on the official website for warranty benefits.
Manufacturer information
Belleze Furniture
Practical help
Common problems
Uneven cabinet door clearance
Adjust the hinges using the adjustment screws: use the mounting plate screws for up/down adjustment, hinge arm screws for in/out adjustment, and the front adjustment screw for side-to-side alignment.
Missing hardware or parts
Do not use the product until missing parts are restored. Contact support at 1-800-682-6376 or [email protected] for replacements.
Furniture instability
Ensure the unit is permanently fixed to a wall stud using the included anti-tipping device. Check and tighten all bolts every 2 months.
Before use
- Ensure 2 people are available for assembly.
- Prepare a clear, flat assembly area (use carpet or carton to protect the floor).
- Verify all parts are present against the package contents list.
- Gather required tools: hammer, screwdriver, and drill.
- Ensure the TV weight is 70 lbs (31.8 kg) or less.
- Confirm the TV width does not exceed 75 inches.
Specs in practice
- Maximum Top Load
- 70 lbs (31.8 kg) - Do not exceed this weight to prevent instability.
- Maximum Shelf Load
- 30 lbs - Do not exceed this weight.
- Maximum TV Width
- 75 inches - Recommended maximum width for the television.
- Assembly Time
- Approximately 100 minutes.
Images and diagrams
- Exploded view of all panels (1-22) and hardware (A-V) for identification.
- Step-by-step assembly diagrams showing panel connections and hardware placement.
- Hinge adjustment diagrams showing how to align doors.
- Wall anchoring diagram showing how to secure the unit to a wall stud.
Model compatibility
- Designed for flat panel TVs only.
- Use with televisions weighing 70 lbs (31.8 kg) or less.
- Different wall materials require different types of wall anchors; consult a local hardware store if unsure.
