User Guide for Belleze Portman Fireplace Entertainment Center

Quick guide from the manual

The Belleze Portman Fireplace Entertainment Center requires 2 people for assembly. The estimated assembly time is 120 minutes. Before starting, ensure you have a flat surface (carpet or rug recommended) and necessary tools, including a hammer, drill, and screwdriver. Verify all components against the package contents list before beginning.

Safety and warnings

• Weight Limits: The top panel supports a maximum of 70 lbs. Storage shelves support a maximum of 30 lbs.
• TV Compatibility: Designed for flat panel TVs up to 75 inches and weighing 70 lbs (31.8 kg) or less.
• Tipping Hazard: Furniture must be permanently fixed to the wall stud using the included anti-tipping device to prevent serious or fatal injury.
• Small Parts: Keep small components, plastic bags, and packaging film away from children and pets to avoid choking or suffocation hazards.

Assembly instructions

The assembly process involves 34 steps. Key procedures include:

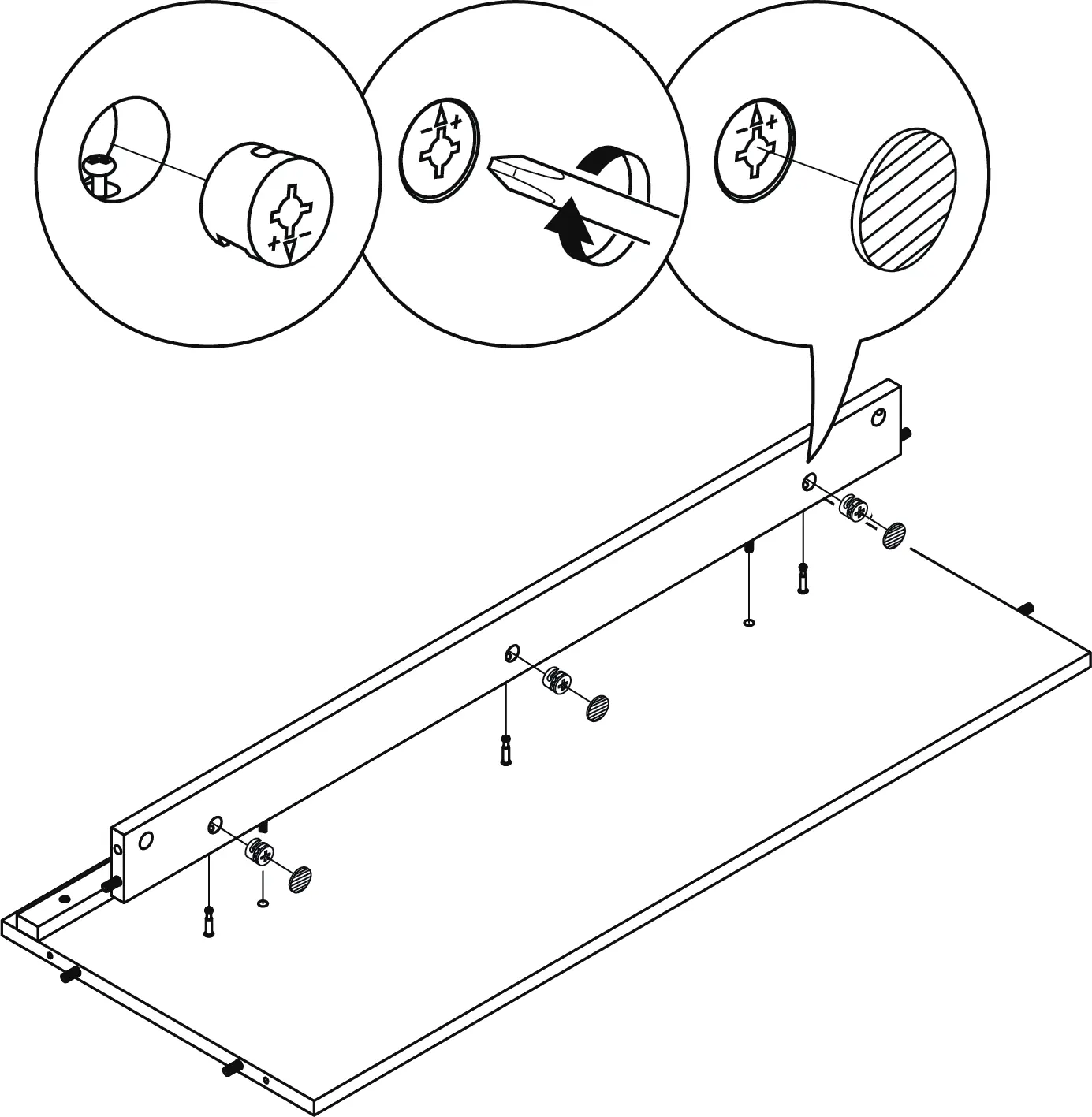

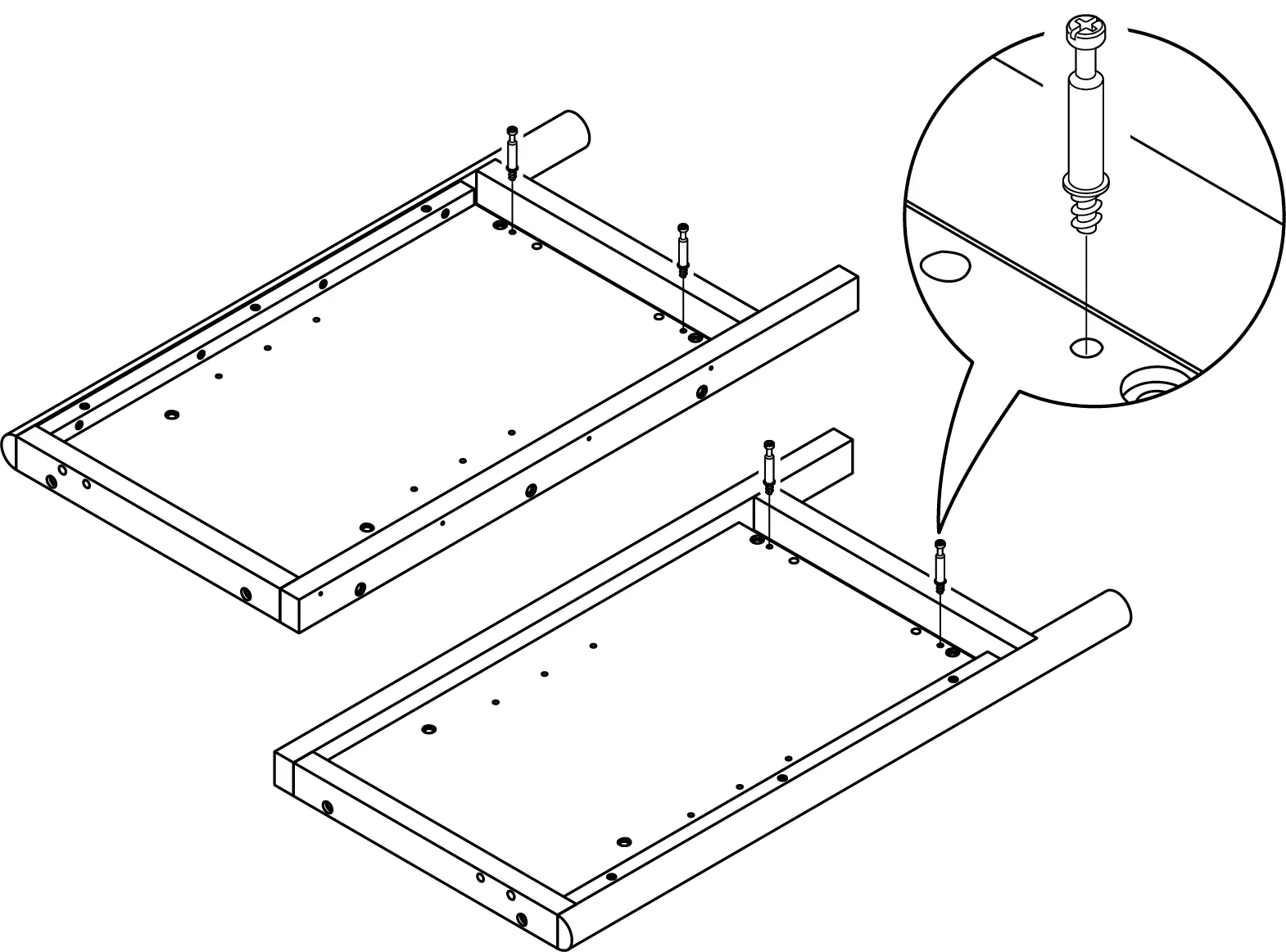

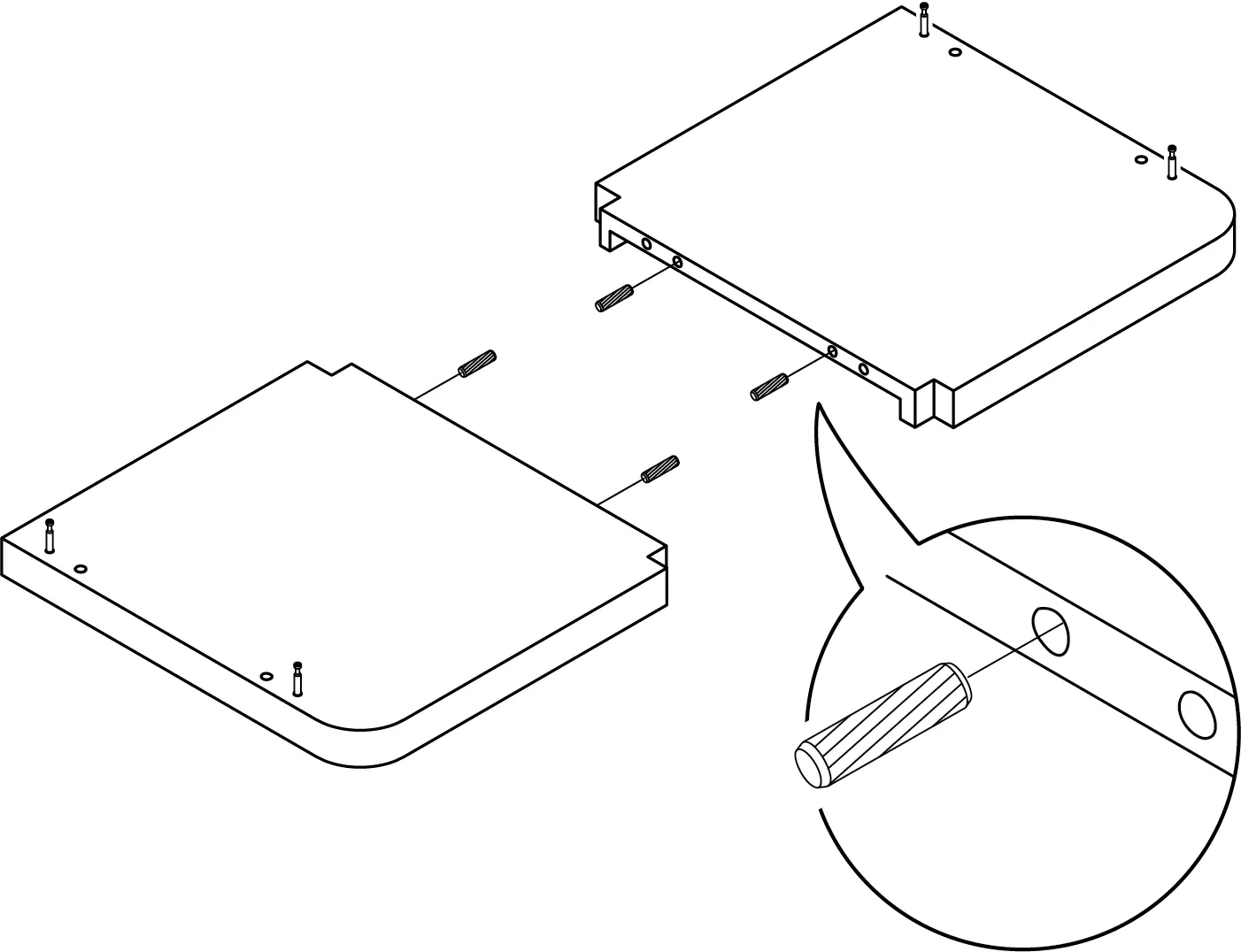

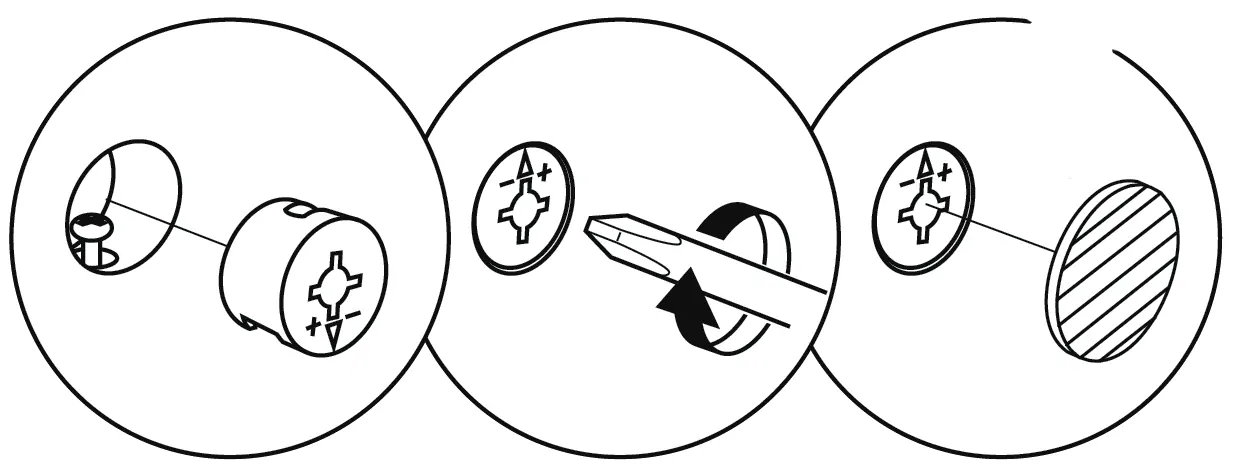

• Hardware Installation: Install cam bolts and wood dowels into the designated panels. Ensure all hardware is installed perpendicular to the opening.
• Frame Assembly: Assemble the center panel, leg panels, and bottom panels. Secure the metal frame under the center bottom panel.

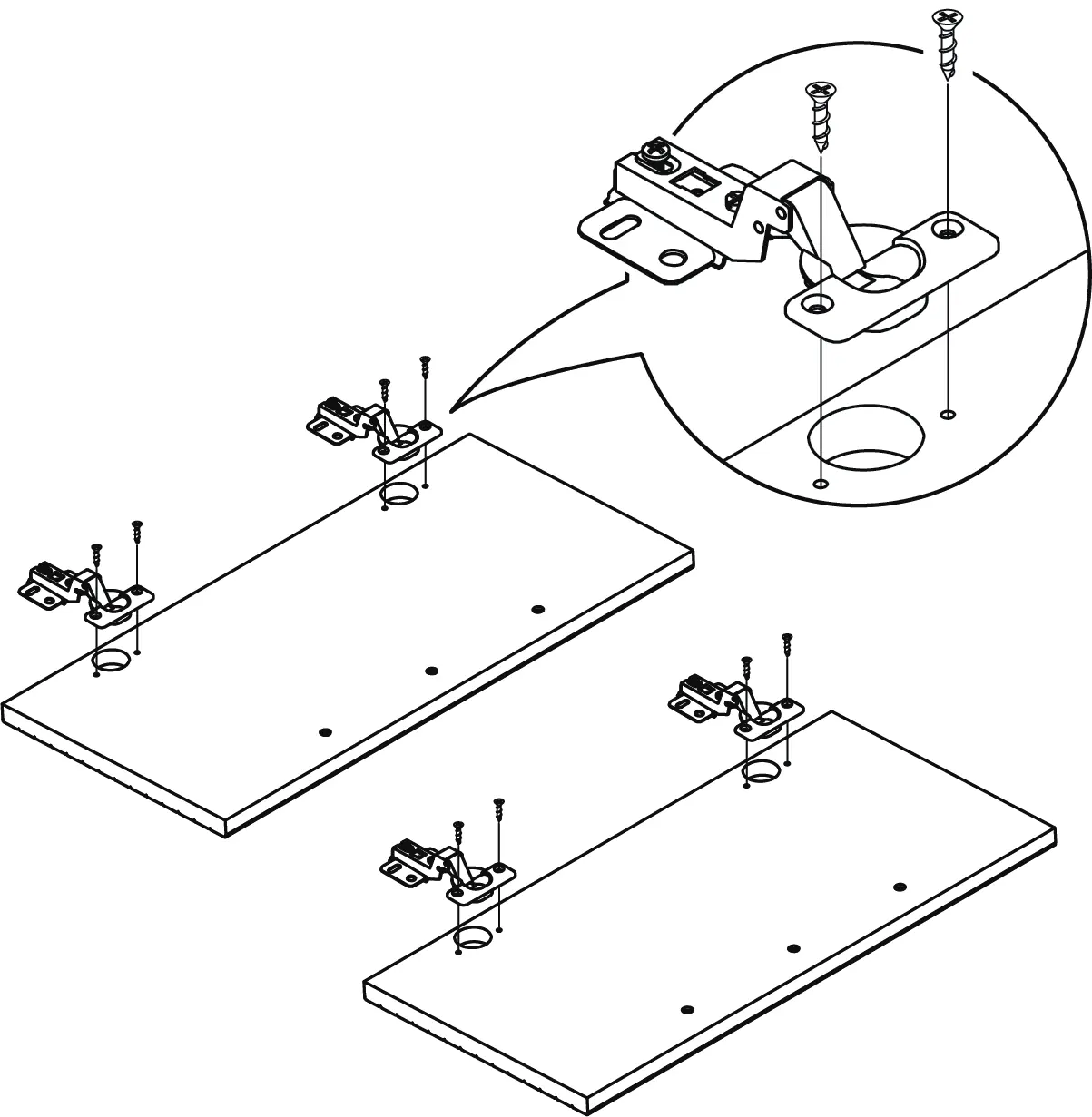

• Hinge Adjustment: If cabinet doors are uneven, use the hinge adjustment screws:
  • Up and down: Loosen screws on the mounting plate.
  • In and out: Loosen screws on the hinge arm.
  • Side to side: Use the front adjustment screw on the hinge.

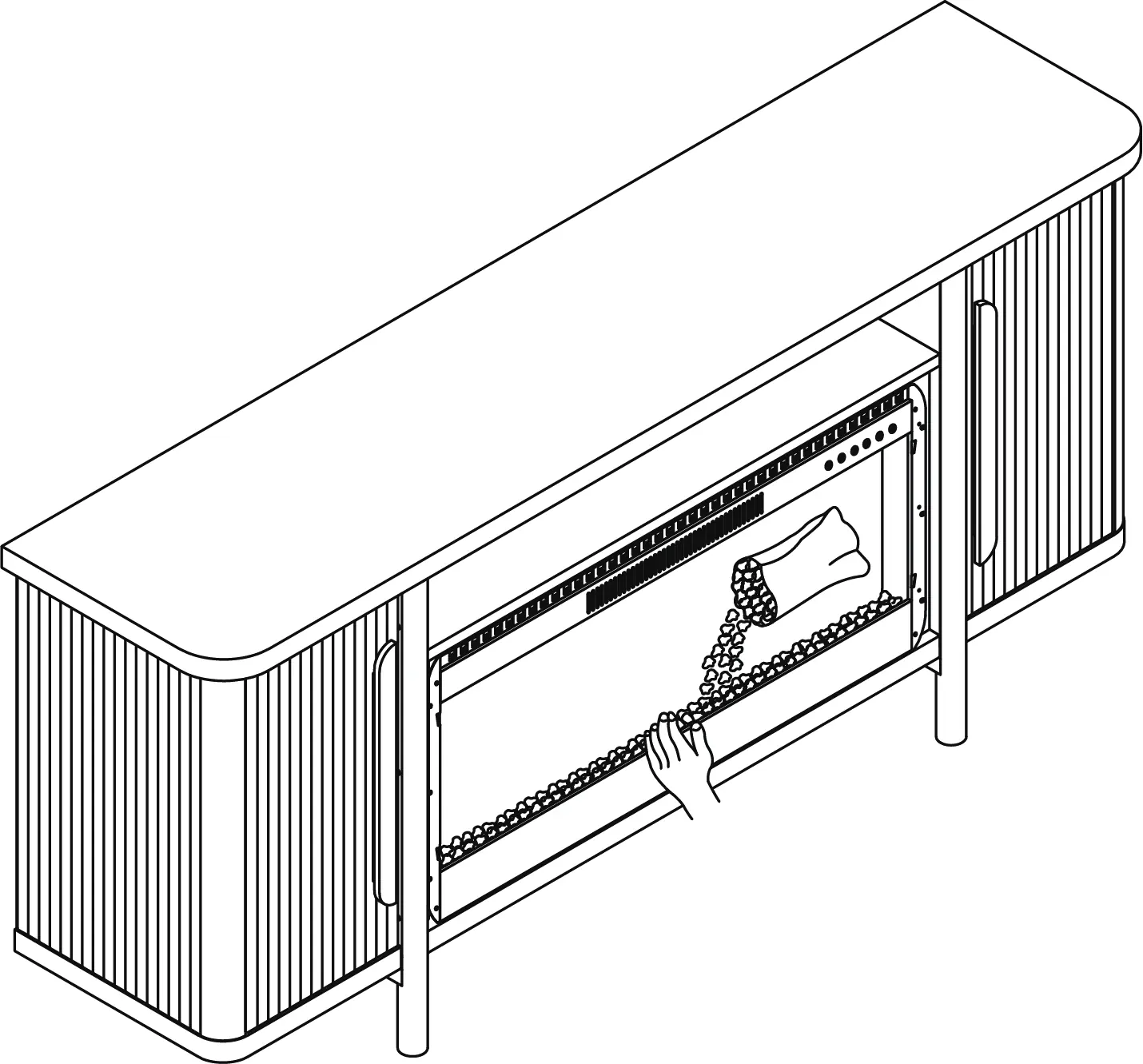

• Fireplace Installation: Insert the fireplace heater from the front of the stand and secure it to the surround panels.
• Wall Anchoring: Mark the drill position on the wall, drill a hole, insert the wall anchor, and fix the anti-tipping strap to the wall.

Care and maintenance

• Tightening: Tighten all bolts and screws within the first 2 weeks of assembly. Check the tightness of all bolts every 2 months and tighten if necessary.
• Cleaning: Clean the MDF surface with a lightly dampened cloth. A small amount of mild soap may be used if necessary. Dry the surface immediately. Do not use bleach, alcohol, or wood treatments.

Support

If you encounter difficulties or are missing parts, contact Belleze support at 1-800-682-6376 or email [email protected].
