Specification Sheet for Belling Cookcentre 100Ei Range Cooker
Technical specifications and feature guide for the Belling Cookcentre 100Ei electric induction range cooker. Includes details on oven capacities, hob zones, installation requirements, and electrical connections.
Table of contents
Manual images
Click an image to enlargeQuick Guide and Specifications
The Belling Cookcentre 100Ei is a 100cm wide, freestanding electric induction range cooker. This document provides the technical specifications, installation requirements, and feature breakdown for the appliance. It is designed for modern kitchens and features a 5-zone induction hob with Link+ technology, two electric ovens, a separate grill, and a storage compartment.
Product Overview
The cooker includes the following key features:
- 5-Zone Induction Hob: Features Link+ technology, allowing two zones to be bridged for larger pans.
- Oven Configuration: Includes a fanned main electric oven, a conventional second electric oven, and a separate variable electric grill.
- Additional Features: AirFry function with tray, Maxi-Clock programmer, and a slow cook function.
- Cleaning: Easy-Clean enamel interior.
Hob and Oven Specifications
Hob Details:
- 5 induction zones with black glass surface and metal frame.
- Touch controls with 9 power levels plus booster.
- Includes pan detection, overheat detection, child lock, and residual heat indicators.

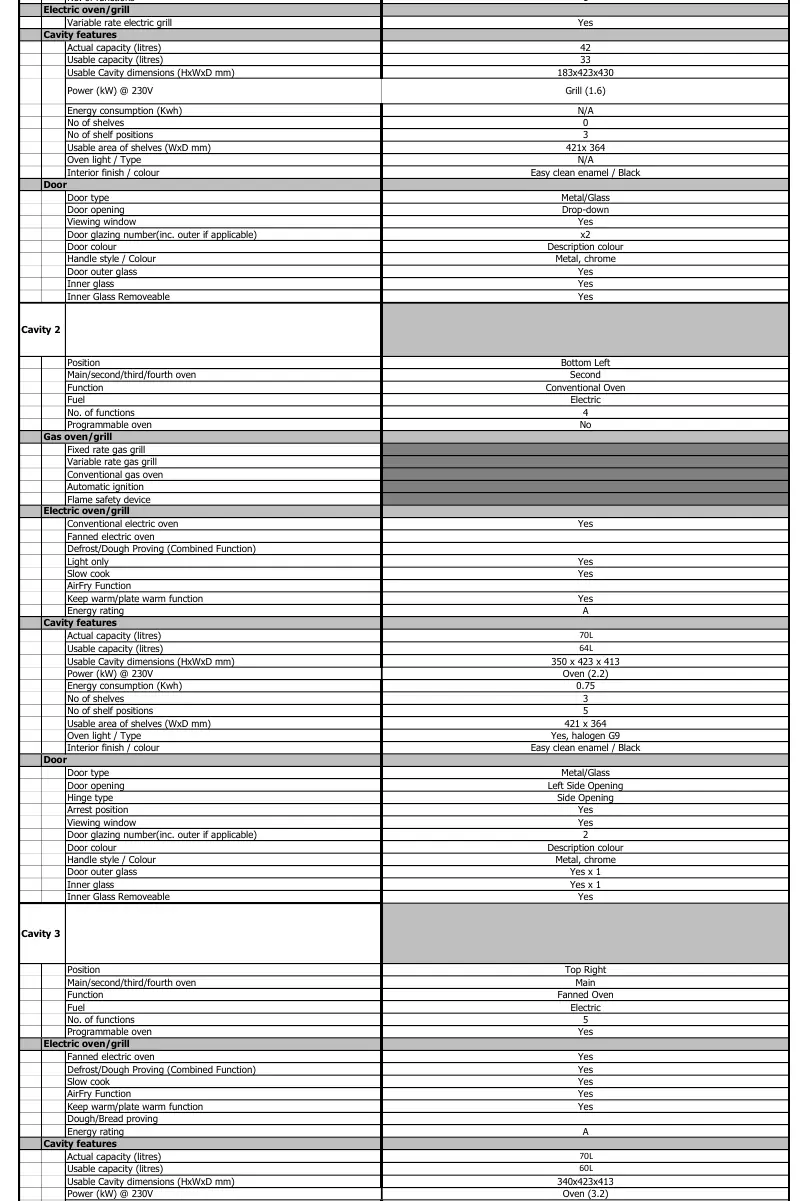

Cavity Details:
- Cavity 1 (Top Left): Variable rate electric grill (42L actual capacity).
- Cavity 2 (Bottom Left): Conventional electric oven (70L actual capacity).
- Cavity 3 (Top Right): Fanned electric oven (70L actual capacity).
- Cavity 4 (Bottom Right): Storage compartment.

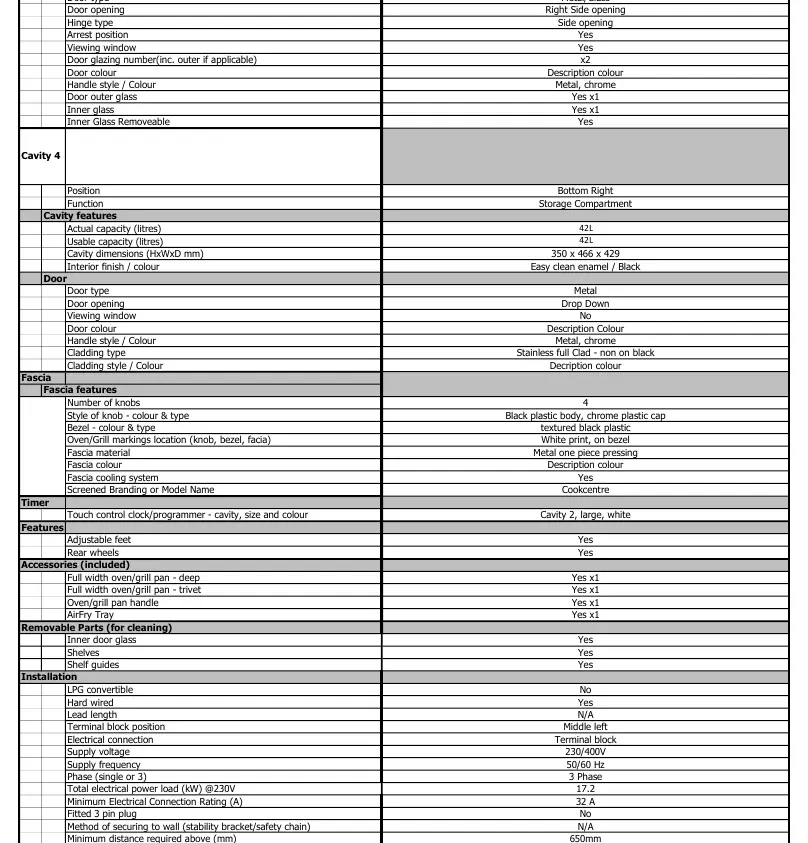

Installation Requirements
Electrical Connection:
- The unit must be hard-wired; it does not come with a fitted 3-pin plug.
- Supply voltage: 230/400V.
- Supply frequency: 50/60 Hz.
- Phase: 3 Phase.
- Total electrical power load: 17.2 kW.
- Minimum electrical connection rating: 32 A.
Clearance:
- Minimum distance required above the hob: 650mm.
- The unit is not LPG convertible.
Dimensions
- Product Height: 900-930mm (adjustable feet).
- Product Width: 996mm.
- Product Depth: 600mm.
- Product Weight: 90.732 kg.
Manufacturer information
Belling
Practical help
Common problems
Unit does not turn on or power is insufficient.
Ensure the unit is hard-wired to a 32A electrical supply as required. It is not designed for a standard 3-pin plug.
Hob zones not heating large pans.
Use the Link+ technology to bridge the left two induction zones for a larger cooking area.
Installation clearance issues.
Ensure there is a minimum of 650mm of clearance above the hob surface.
Before use
- Verify that a 32A electrical supply is available.
- Ensure the installation is hard-wired (no 3-pin plug).
- Check that there is at least 650mm of clearance above the cooker.
- Confirm the floor is level; use the adjustable feet to level the unit.
- Check that the 3-phase electrical connection is correctly configured.
Specs in practice
- Link+ Technology
- Allows bridging of the two left-hand induction zones to accommodate larger or longer cookware.
- Total Electrical Load
- 17.2 kW at 230V; dictates the required circuit capacity (32A).
- Cavity 2 (Conventional)
- Bottom left oven, 70L capacity, suitable for traditional roasting and baking.
- Cavity 3 (Fanned)
- Top right oven, 70L capacity, uses a fan for even heat distribution.
Images and diagrams
- Hob layout: Shows the positioning of the 5 induction zones.
- Cavity layout: Illustrates the 4-section configuration (Grill, Conventional Oven, Fanned Oven, Storage).
Model compatibility
- Not LPG convertible.
- Requires 3-phase electrical supply.
- Hard-wired installation only.
