Belling BEL RCA COOKCENTRE 110DF Dual Fuel Range Cooker
Quick guide to the Belling BEL RCA COOKCENTRE 110DF dual fuel range cooker. Find technical specifications, cavity details, installation requirements, and key features for this 110cm appliance.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual

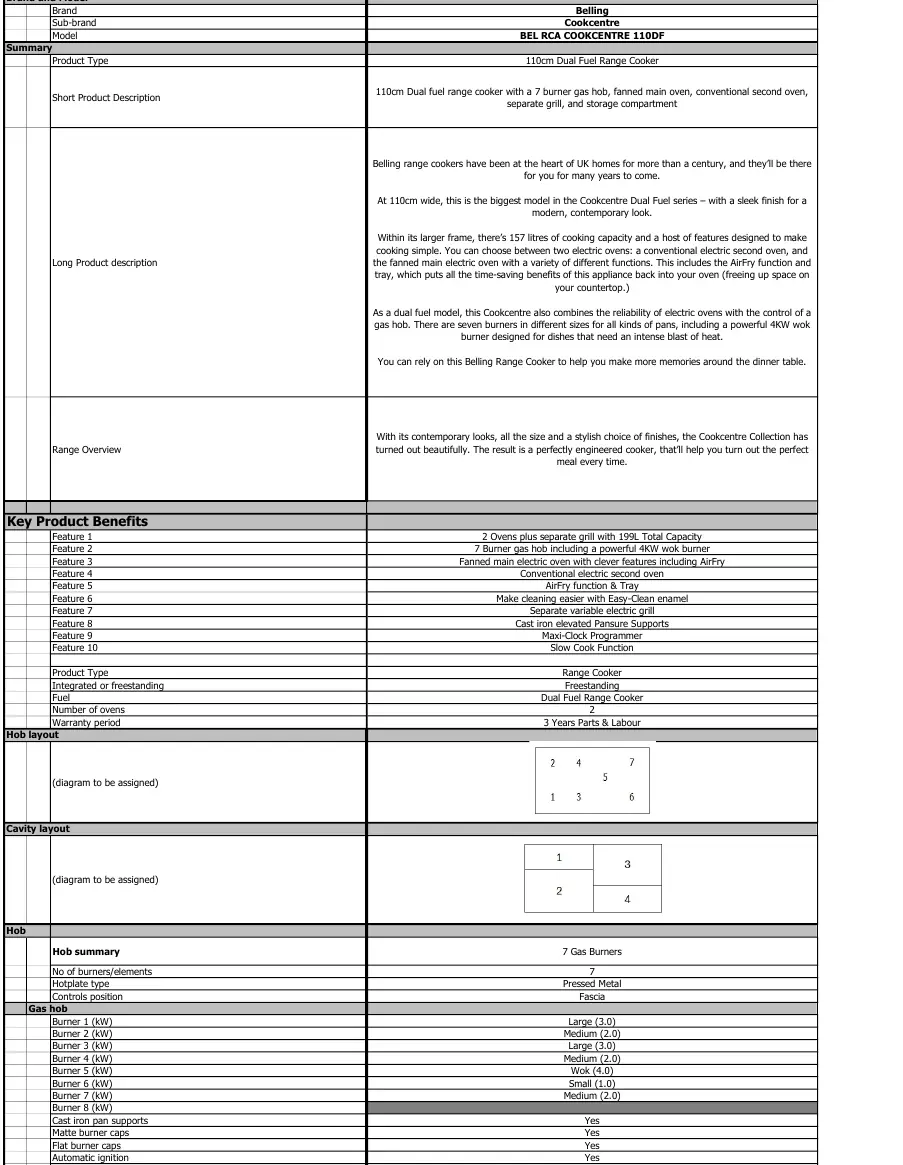

This document provides the technical specification for the Belling BEL RCA COOKCENTRE 110DF dual fuel range cooker. It outlines the physical dimensions, electrical and gas requirements, and the configuration of the four cavities. This document is intended for reference during installation and planning.
Product Overview
The appliance is a 110cm wide freestanding dual fuel range cooker. It features a 7-burner gas hob, two electric ovens, a separate electric grill, and a storage compartment. The hob includes a powerful 4kW wok burner and cast iron pan supports.
Cavity Configuration
The cooker is divided into four distinct sections:
- Top Left: Electric grill with 42L capacity.
- Bottom Left: Conventional electric oven with 70L capacity.
- Top Right: Fanned electric oven with 70L capacity.
- Bottom Right: Storage compartment.

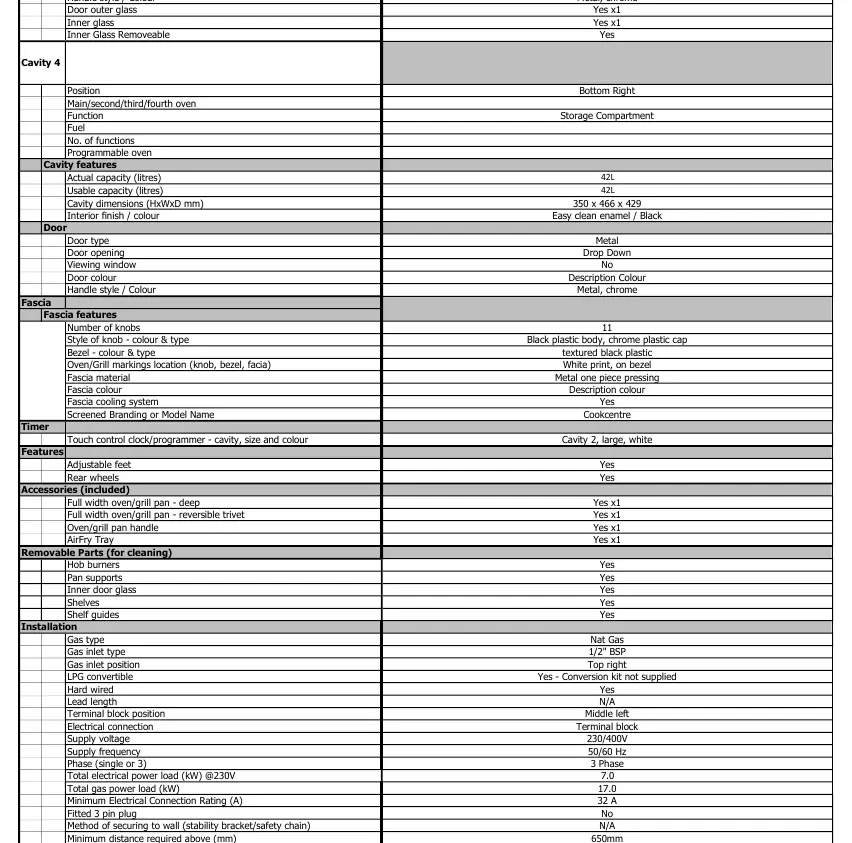

Installation Requirements
Important installation parameters to consider:
- Gas: The unit is set for Natural Gas. LPG conversion is possible, but the conversion kit is not supplied.
- Electrical: Hard-wired connection required. 32A minimum rating, 3-phase, 230/400V, 50/60Hz.
- Clearance: Minimum 650mm distance required above the hob.
Technical Specifications
Physical dimensions and power ratings:
- Product Dimensions: 900-930mm (H) x 1096mm (W) x 600mm (D).
- Total Electrical Load: 7.0 kW.
- Total Gas Load: 17.0 kW.
- Weight: 93.74 kg.
Manufacturer information
Belling
Practical help
Common problems
LPG Conversion
The unit is factory-set for Natural Gas. If using LPG, a conversion kit is required but is not supplied with the appliance.
Electrical Connection
The unit requires a hard-wired connection (no plug). Ensure your electrical supply supports a 32A rating and 3-phase power.
Installation Clearance
Ensure there is a minimum of 650mm of clear space above the hob surface.
Before use
- Verify gas supply type (Natural Gas vs LPG).
- Ensure electrical supply meets 32A, 3-phase requirements.
- Check for 650mm clearance above the unit.
- Confirm installation space dimensions (1096mm width).
Specs in practice
- Total electrical power load
- 7.0 kW @ 230V.
- Total gas power load
- 17.0 kW.
- Cavity 1 (Top Left)
- Grill, 42L capacity.
- Cavity 2 (Bottom Left)
- Conventional Oven, 70L capacity.
- Cavity 3 (Top Right)
- Fanned Oven, 70L capacity.
Model compatibility
- LPG convertible (kit not supplied).
- Requires hard-wired electrical connection (no plug).
