User Manual for Bestway 14ft. Xtreme Air Trampoline

Quick guide from the manual

This manual provides instructions for the assembly, safe use, and maintenance of the Bestway 14ft. Xtreme Air Trampoline. Assembly should be performed by at least two adults. Always use the provided QuickSpring™ Trampoline Tool for installing springs and screws. Ensure the trampoline is placed on a level surface at least 2 meters away from any structures or obstructions.

Safety Information

Important: Read all instructions before use. Failure to follow these guidelines may result in serious injury.

• Weight Limit: Maximum user weight is 150 kg (330 lbs).
• Usage: Only one user at a time. For outdoor domestic use only.
• Restrictions: Not for children under 6 years. Do not use when wet.
• Safety: Always jump in the middle of the mat. Do not jump with shoes. Always close the net opening before jumping.
• Environment: Do not use in strong wind conditions; secure the trampoline properly.

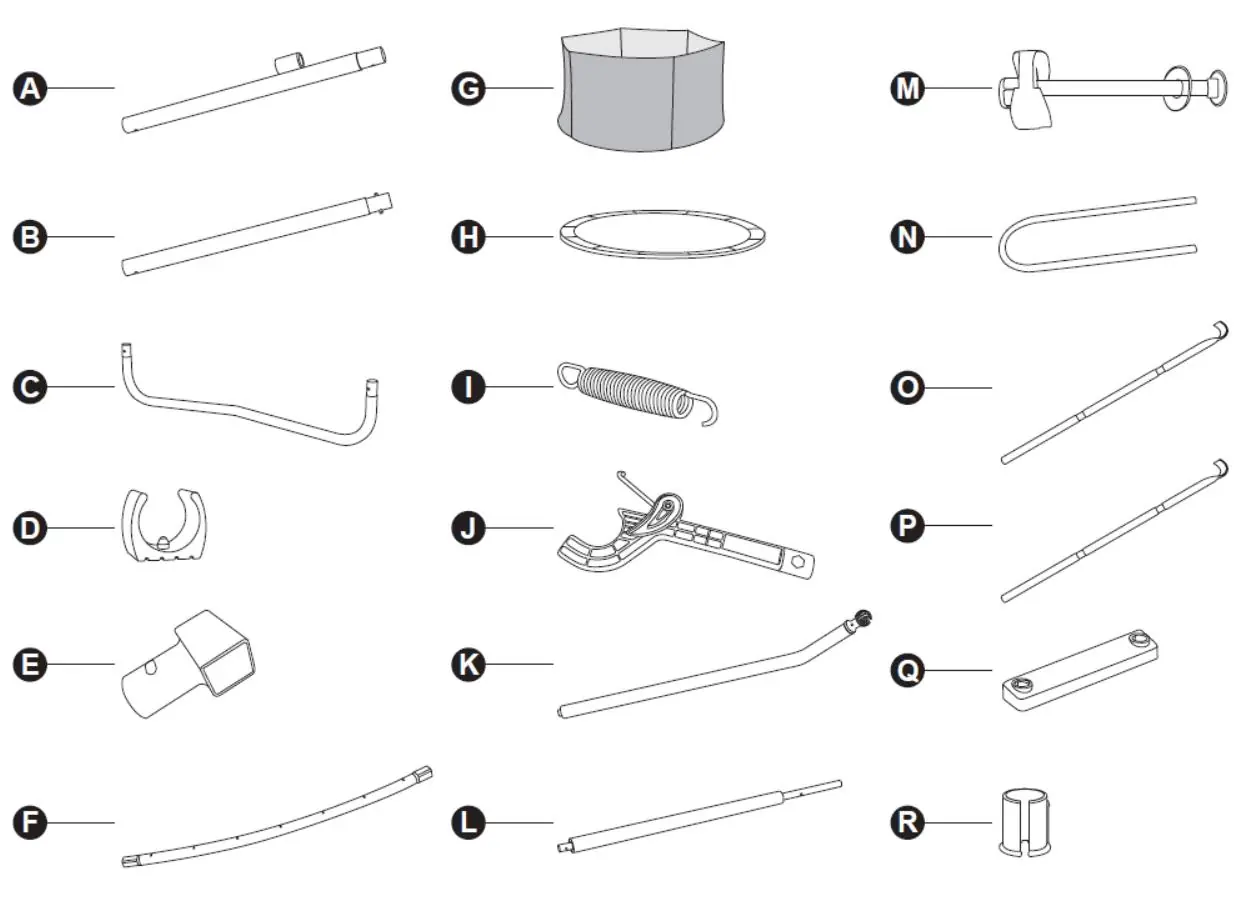

Parts & Tools Needed

Before beginning assembly, verify all parts are present. The kit includes vertical legs, base rails, T-connectors, trampoline mat with enclosure netting, frame pad, springs, ladder components, and a QuickSpring™ Trampoline Tool.

Assembly Instructions

Assembly can be completed without additional tools beyond those provided. We recommend wearing gloves to avoid injury.

Base Assembly

Connect the base rails (F) with the T-connectors (E), ensuring the spring slots face upward. Insert the foot pads (D) onto the leg bases (C). Connect the vertical legs (A and B) to the leg bases (C) and insert the completed structure into the T-connectors.

Spring Assembly

The trampoline mat (G) has metal rings with red markings. Start by connecting these to the frame using the springs (I) and the QuickSpring™ Trampoline Tool (J). Follow the sequence to cross-install the remaining springs.

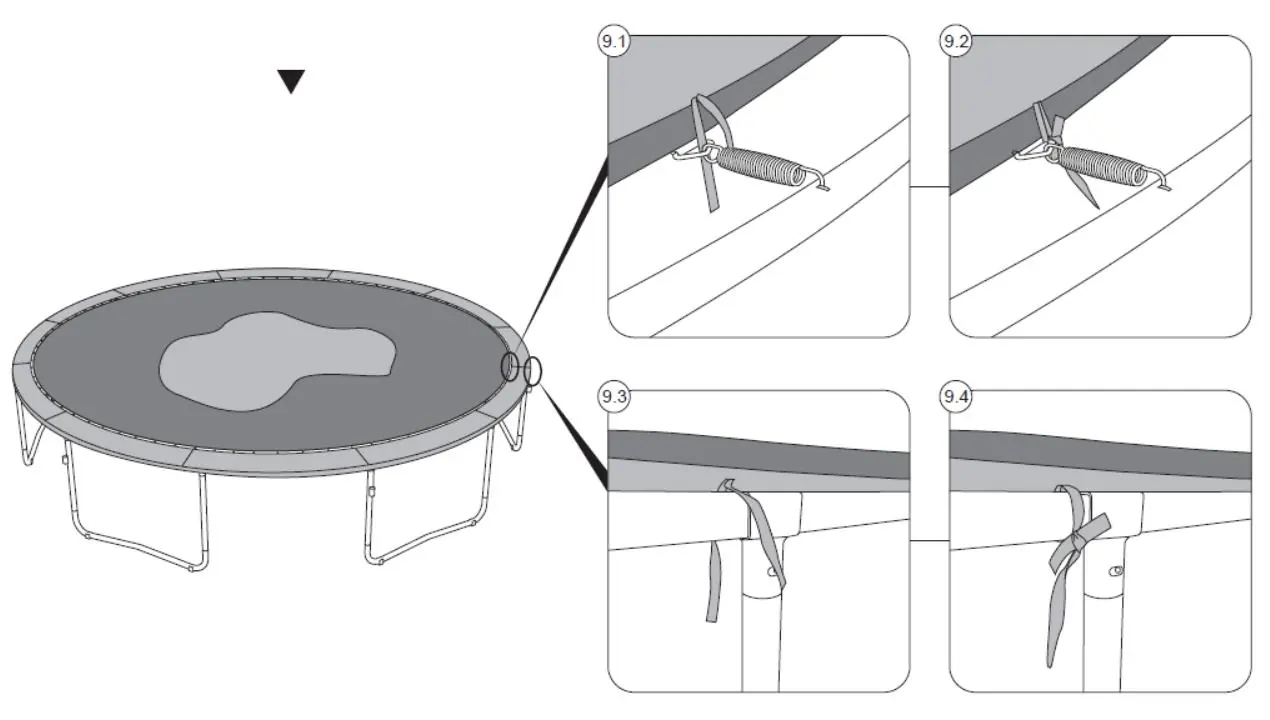

Enclosure Net Assembly

Position the frame pad (H) over the springs and secure it with the provided strings. Assemble the upper and lower frame supports (K and L) and attach them to the trampoline frame using the screw set (M).

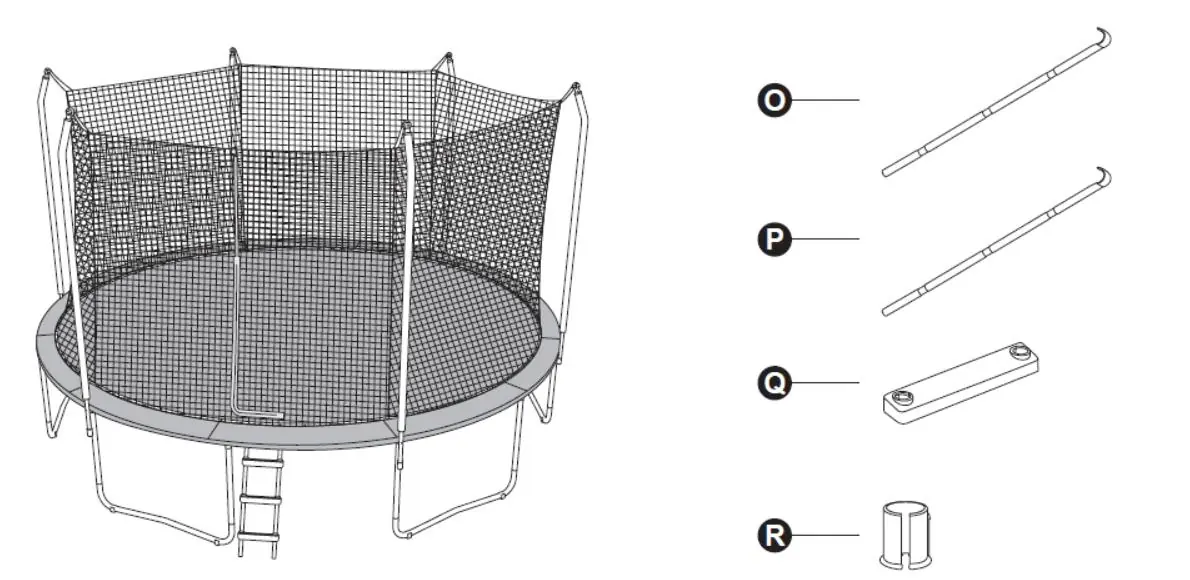

Ladder Assembly

Assemble the ladder by sliding the steps (Q) and mounting tubes (R) onto the ladder legs (O and P). Once fully constructed, hook the ladder onto the frame beside the enclosure net zipper.

Use Instructions

Trampolining requires basic knowledge of body mechanics. We suggest practicing fundamental skills such as the Feet Drop, Hand and Knee Drop, Knee Drop, Seat Drop, Front Drop, and Back Drop. Always have a supervisor present to ensure proper form and safety.

Maintenance & Storage

Before every use, check all parts, including springs, legs, and the enclosure net. If any part is damaged, stop using the trampoline immediately. Remove debris from the mat before jumping. If moving the trampoline, lift it with two or more people; do not drag it. During harsh weather, disassemble and store the trampoline indoors.
