User Manual for Better Bathrooms BeBa_26151 LED Mirrored Cabinet

Quick guide from the manual

This cabinet is designed for wall mounting in bathrooms. It features LED lighting controlled by a touch sensor and an integrated shaver socket. Installation must be performed by a qualified electrician in accordance with current IEE wiring regulations. The unit is IP44 rated, suitable for installation in Bathroom Zone 2.

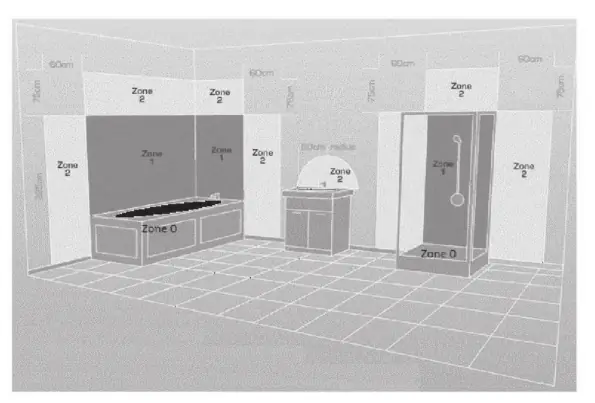

Safety and bathroom zones

Important safety warnings:

• The cabinet must be connected to a dedicated lighting circuit protected by a 5-amp fuse or 6A miniature circuit breaker.
• Ensure the mains supply is switched off and the fuse is removed before starting installation.
• This product must be earthed.
• Do not install in Bathroom Zones 0 or 1. Installation is permitted only in Zone 2.
• The shaver socket is for low-voltage items only (shavers, electric toothbrushes) and is not earthed.
• If the cabinet or any part is damaged, do not install or use it.

Installation

1. Determine the desired position and mark the location for the hanging bar.
2. Use a spirit level to ensure the bar is straight, then mark the 3 holes on the wall.
3. Drill the holes and insert the wall plugs, ensuring they are flush with the wall.
4. Secure the hanging bar to the wall using the supplied screws.
5. Carefully hang the cabinet onto the bar.
6. Open the door to mark the security hole on the back panel, then drill and plug this hole to secure the cabinet to the wall.
7. Connect the cabinet to the mains supply following the provided wiring diagram.
8. Apply a bead of silicone between the cabinet and the wall (top and sides) to prevent moisture accumulation.

Adjustments

Door Adjustment: If the door is not level, use the hinge screw. Turning the screw clockwise pushes the door to the right; turning it anticlockwise pulls it to the left.

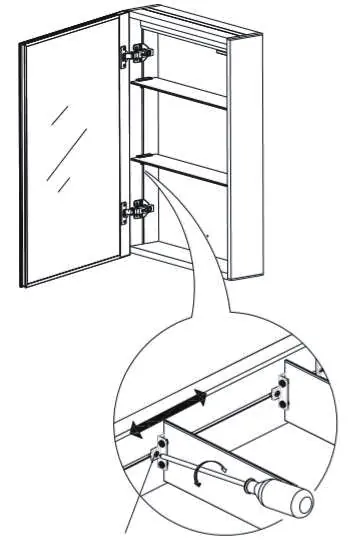

Shelf Adjustment: Loosen the snap screw on the shelf to adjust its position. Once the shelf is level and in the desired position, re-tighten the screw.

Operation

Lighting: Touch the sensor button once to turn the lights on, and touch it again to turn them off.

Shaver Socket: The socket is located inside the unit. It is ready to use once the cabinet is connected to the mains.

Cleaning and maintenance

Never use products containing bleach or abrasive cleaners, as these will damage the finish. Use a clean, micro-fiber cloth to clean the mirror surface.

Technical specifications

Model: BeBa_26151Dimensions: 500 x 700 x 135 mmNet Weight: 13.3 kgPower: 15WIP Rating: IP44Input: 220-240V, 50 HzShaver Socket Output: 230V, 50Hz, 80mA
