User Guide for Bissell DeepClean ProHeat 2X Professional PET 17N4 Series
Get the most out of your Bissell DeepClean ProHeat 2X Professional PET 17N4 Series with this comprehensive user guide. Includes assembly, cleaning procedures, maintenance, and troubleshooting tips.
Quick answers from the manual
Quick answer
- The Bissell 17N4 Series is a deep cleaner for carpets and upholstery. It requires assembly, uses specific Bissell 2X formulas, and requires regular maintenance of the tank, brushes, and filters. p. 4, 5, 13
Key actions
- Assemble the unit using a Phillips screwdriver. p. 5
- Fill the 2-in-1 tank with hot tap water and formula. p. 6
- Clean carpets using slow forward and backward passes. p. 7
First start
- Assemble the handle and hose rack, then fill the 2-in-1 tank with formula and hot water. p. 5, 6
Show 3 more answers Show less
Problems and fixes
Reduced spray or no spray
Fill tank, reseat tank, or prime pump.
p. 16
Brush does not turn
Check belt or reset circuit breaker.
p. 16Maintenance and reset
- Flush the machine with clean water after use. p. 13
Where to find it in the PDF
- Assembly p. 5
- Operations p. 6, 7, 8
- Maintenance p. 13, 14, 15
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Bissell DeepClean ProHeat 2X Professional PET is a high-tech home cleaning system designed for carpets and upholstery. Before use, ensure you have genuine Bissell 2X formula. Always vacuum the area before deep cleaning. The machine requires assembly upon arrival and regular maintenance of the tank, brushes, and filters to ensure optimal performance.
Assembly
The unit comes in four components: Upper Handle, Lower Base, Upper Hose Rack, and Upper Tool Holder. You will need a Phillips head screwdriver.
- Slide the upper handle onto the lower base.
- Secure with 2 screws in the marked holes.
- Attach the upper tool holder by snapping the bottom half in first, then the top.
- Place the upper hose rack on the back of the handle and secure with a screw.
- Snap tools onto the holder and wrap the power cord and flex hose.
Operations
Filling the 2-in-1 Water Tank:
- Remove the tank by lifting the carry handle.
- Unlatch the top from the bottom.
- Pour 5 oz of Bissell 2X formula into the bladder.
- Fill the rest with hot tap water (max 140°F/60°C). Do not boil or microwave water.
- Secure the latches on both sides before replacing the tank.
Carpet Cleaning:
- Plug into a grounded outlet and turn on the power switch.
- Recline the handle using the lever at the back.
- Press the trigger to spray solution while making slow forward and backward passes.
- Release the trigger and make slow passes to suction up dirty water.
Maintenance & Care
Clean-up:
- Empty the tank and rinse the Pet Hair Basket.
- Check the red lint filter near the air duct for debris.
- Flush the machine by running clean water through the system after cleaning.
Brush and Belt Maintenance:
- If the brush stops turning, check for a broken belt or tripped circuit breaker.
- To replace belts or brushes, remove the nozzle and pivot arm.
- Follow the specific steps on pages 14-15 for belt removal and brush replacement.
Troubleshooting
If you experience reduced spray, check if the tank is empty or not seated correctly. If the brush does not turn, check for a broken belt or foreign objects in the brush roll. Always unplug the machine before performing maintenance.
Manufacturer information
Bissell Inc.
Practical help
Common problems
Reduced spray or no spray
Check if the water tank is empty, not seated completely, or if the pump needs priming (turn off, then back on and depress trigger).
DirtLifter PowerBrush does not turn
Check if the belt is broken or if the circuit breaker has tripped due to a foreign object in the brush roll.
Cleaner not picking up solution
Ensure the tank is seated and latched properly, check if the tank is empty, or if the red float door has closed.
Before use
- Vacuum the area to remove loose dirt and pet hair.
- Check upholstery tags for cleaning compatibility (W or WS).
- Fill the 2-in-1 tank with hot tap water (max 140°F/60°C) and Bissell 2X formula.
- Ensure tank latches are secure before lifting.
- Plan a cleaning route starting from the corner farthest from the exit.
Show more Show less
Specs in practice
- 2-in-1 Water Tank
- A single tank system that holds both the clean water/formula solution and the dirty water collected during cleaning.
- Circuit Breaker
- An automatic safety feature that shuts off the brush if a large object is caught.
Images and diagrams

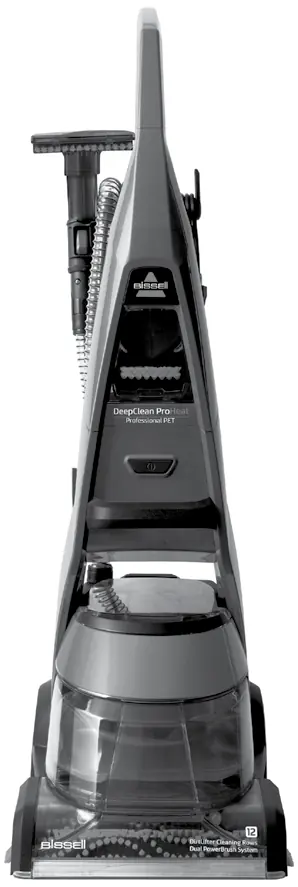

- Product view identifies the spray trigger, power switch, and tank release handle.
- Assembly diagrams show the correct orientation for the handle and hose rack.
- Maintenance diagrams illustrate how to remove the nozzle and access the belt/brush area.
Model compatibility
- Use only genuine BISSELL 2X formulas to prevent internal damage and voiding the warranty.
- Do not use on velvet or silk upholstery.
- Not for commercial use.
