User Guide for Bissell TurboClean Pet 2069H Carpet Washer
Comprehensive user guide for the Bissell TurboClean Pet 2069H carpet washer. Includes assembly instructions, operation steps for carpet and hard floor cleaning, maintenance, and troubleshooting.
Quick answers from the manual
Quick answer
- The Bissell TurboClean Pet 2069H is a carpet washer designed for household use. It features a ReadyTools dial to switch between floor cleaning and tool-based cleaning for upholstery and stairs. p. 3, 6
Key actions
- Assemble the unit using a Phillips-head screwdriver. p. 5
- Fill the Formula Tank with warm tap water and BISSELL formula. p. 6
- Empty the Dirty Water Tank when full. p. 8
First start
- Assemble the upper body, handle, and hose, then fill the Formula Tank before plugging in. p. 5, 6
Show 4 more answers Show less
Problems and fixes
Reduced spray
Refill tank or clean lint screen on cap.
p. 11
Machine not picking up formula
Check tank alignment, empty tank, or clean nozzle.
p. 11Maintenance and reset
- Rinse the Dirty Water Tank, foam filter, and nozzle after each use. p. 10
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Power | 220-240V A.C. 50-60 Hz | Operating voltage requirements. | p. 2 |
Where to find it in the PDF
- Safety Instructions p. 2
- Assembly p. 5
- Operations p. 6, 7, 8, 9
- Troubleshooting p. 11
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This guide provides essential instructions for operating the Bissell TurboClean Pet 2069H. Always read the safety instructions before use. Ensure the machine is used on a level surface and do not leave the machine running in the same spot with the brush roll active while the handle is upright. The machine is designed for household use on 220-240V AC power.

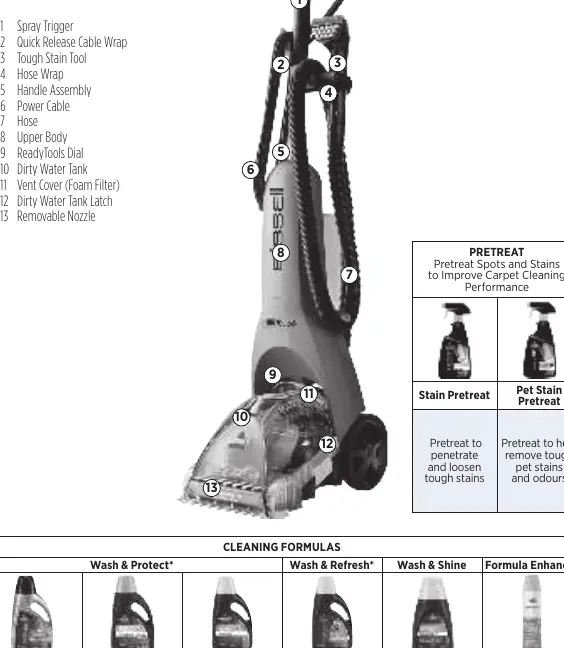

Product Overview
The unit consists of an upper body, handle assembly, and a dirty water tank. Key components include the spray trigger, hose, ReadyTools dial, and removable nozzle. The ReadyTools dial allows switching between floor cleaning and tool-based cleaning.
Assembly
The machine requires a Phillips-head screwdriver for assembly:
- Slide the upper body onto the lower body and secure with screws (found taped to the handle).
- Attach the hose wrap to the upper handle until it snaps into place.
- Slide the upper handle into the upper body and secure with a screw.
- Place the Formula Tank on the back of the unit.
- Wrap the power cable and flex hose, securing the hose with the latch.
- Attach the desired tool to the end of the hose.
Operations
Carpet Cleaning
- Set the ReadyTools dial to FLOOR CLEANING.
- Plug into a proper outlet and turn the power switch ON.
- Press the red recline lever with your foot.
- Press the spray trigger while making one slow forward wet pass and one back.
- Release the trigger and make one slow forward and backward pass over the same area to suction.
- Repeat until the extracted formula appears clean.
Hard Floor Cleaning
- Turn off and unplug the machine.
- Attach the hard floor tool to the front of the removable nozzle.
- Fill the Formula Tank with warm tap water to the WATER line and BISSELL Wash & Shine Hard Floor Formula to the FORMULA line.
- Replace the tank and follow standard carpet cleaning steps.
Cleaning with Attachments
- Set the ReadyTools dial to TOOLS.
- Attach the cleaning tool to the hose.
- Turn the machine on and press the spray trigger to clean upholstery or stairs.
- After use, rinse the tool and suction clean water through the hose to rinse it out.
Maintenance and Care
Emptying the Dirty Water Tank: Turn off and unplug the unit. Release the latches on both sides, remove the top of the tank, and pour out the contents. Rinse the tank thoroughly.
Cleaning After Use: Remove the ReadyTools dial, pop out the knob, and rinse. Remove the tank vent and foam filter to rinse. Clean the nozzle window by lifting the latch and rinsing under running water. Remove lint and hair from the red gasket in the base of the unit.
Troubleshooting
If the machine has reduced spray, check if the Formula Tank is empty or if the lint screen on the cap is clogged. If the machine is not picking up formula, ensure the Dirty Water Tank is aligned and secured, the nozzle is installed correctly, and the ReadyTools dial is set to the correct mode.
Manufacturer information
Bissell Inc.
Practical help
Common problems
Reduced or no spray in upright mode
Refill the Formula Tank or soak the cap in warm water to clear the lint screen.
Machine not picking up cleaning formula
Check that the Dirty Water Tank is aligned and latched, the nozzle is installed correctly, and the ReadyTools dial is set to the correct mode.
Brush not turning
Ensure the handle is reclined by pressing the red recline lever on the back of the unit.
Before use
- Move furniture to another area if cleaning an entire room.
- Remove loose dirt and impediments from the floor.
- Plan your cleaning route to leave an exit path.
- Pretreat stubborn stains and highly soiled areas.
- Check upholstery tags before cleaning furniture.
- Ensure the machine is on a level surface.
Show more Show less
Specs in practice
- Power Supply
- 220-240 Volt A.C. 50-60 Hz.
- Water Temperature
- Use warm tap water (60°C/140°F MAX).
Images and diagrams
- The ReadyTools dial switches between floor cleaning and tool usage.
- The red recline lever is located on the back of the unit.
- The Dirty Water Tank has latches on both sides for removal.
Model compatibility
- Use only BISSELL cleaning formulas.
- Do not use on velvet or silk upholstery.
- Do not use chemical spot cleaners or solvent-based soil removers.
