Blustream 1GbE Approved Network Switch Compatibility Guide

A guide to Blustream-approved 1GbE network switches for AV over IP systems, including compatibility requirements, configuration features, and technical support contact information.

Quick answers from the manual

Quick answer

This document provides a list of Blustream-approved 1GbE network switches for AV over IP installations and outlines the necessary technical requirements for switches not on the list. p. 1

Key actions

Consult Blustream Technical Support for multi-switch or stacked configurations. p. 1

Problems and fixes

Video distribution issues with IP500UHD/IP510UHD

Use 10Gb infrastructure instead of 1Gb.

p. 1

Technical specifications

Parameter	Value	Meaning	Pages
Required Switch Features	L2, 1GbE Managed, Multicasting, IGMP Snooping, QoS, Jumbo Frames	Essential features for AV over IP compatibility.	p. 1

Where to find it in the PDF

Approved Switch List p. 1

Table of contents

Important information about Blustream 1GbE switches

This document serves as a compatibility guide for Blustream AV over IP systems. It lists officially recommended 1GbE network switches and outlines the technical requirements for using switches not explicitly listed. Please note that Blustream cannot guarantee performance if switch firmware or custom configurations are altered.

Note: The Blustream IP500UHD and IP510UHD series utilize SDVoE technology and require a 10Gb network infrastructure. These systems are not compatible with the 1Gb switches listed in this document.

Tested and approved 1GbE switches

Blustream has tested and approved the following switch models for use in dedicated single-switch AV over IP installations:

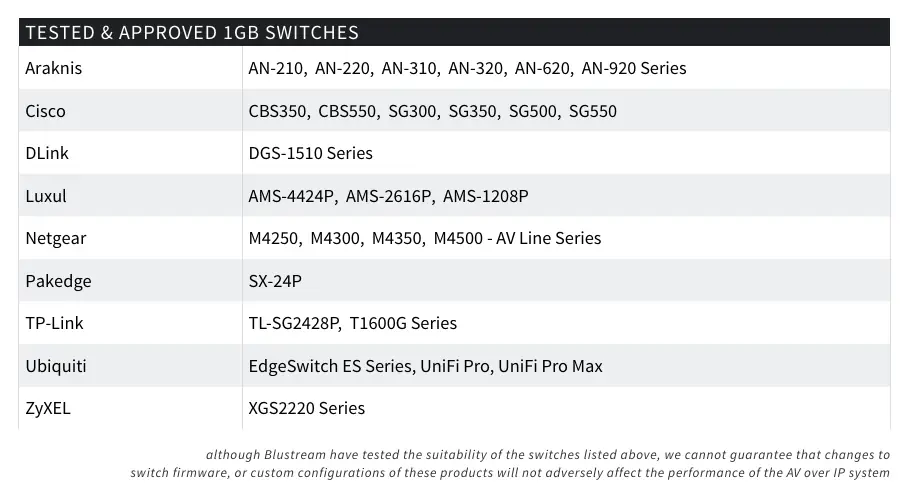

List of tested and approved 1GbE network switches

Araknis: AN-210, AN-220, AN-310, AN-320, AN-620, AN-920 Series
Cisco: CBS350, CBS550, SG300, SG350, SG500, SG550
DLink: DGS-1510 Series
Luxul: AMS-4424P, AMS-2616P, AMS-1208P
Netgear: M4250, M4300, M4350, M4500 - AV Line Series
Pakedge: SX-24P
TP-Link: TL-SG2428P, T1600G Series
Ubiquiti: EdgeSwitch ES Series, UniFi Pro, UniFi Pro Max
ZyXEL: XGS2220 Series

Requirements for non-listed switches

If you choose to use a switch not listed above, it must support the following features to ensure seamless operation within a single switch system:

L2 minimum
1GbE Managed
Multicasting capabilities
IGMP Snooping / IGMP Querier Election
Immediate / Fast Leave
QoS (Quality of Service)
Jumbo Frames / Jumbo Packets / MTU

Technical support

For assistance with system design, especially regarding multi-switch or stacked configurations, contact Blustream Technical Support:

Practical help

Common problems

Video distribution not working with IP500UHD/IP510UHD

These systems require 10Gb network infrastructure; 1Gb switches are not compatible.

Switch not on the approved list

Ensure the switch supports L2, 1GbE Managed, Multicasting, IGMP Snooping, QoS, and Jumbo Frames.

Before use

Verify if your AV over IP system requires 1Gb or 10Gb infrastructure.
Check if your switch model is on the Blustream approved list.
Ensure the switch supports IGMP Snooping and IGMP Querier Election.
Confirm if PoE is required for your AV over IP units (PSUs are not supplied as standard).

Specs in practice

IGMP Snooping: Essential for managing multicast traffic in AV over IP systems.
Jumbo Frames/MTU: Required for handling larger data packets used in AV transmission.

Model compatibility

IP500UHD and IP510UHD series require 10Gb infrastructure.
Blustream does not guarantee performance if switch firmware or custom configurations are changed.
