Bosch GSR 10,8-LI Professional Cordless Screwdriver User Manual

Quick guide for the Bosch GSR 10,8-LI Professional Cordless Screwdriver. Includes setup, operation, safety, and maintenance instructions.

Table of contents

Manual images

Click an image to enlarge
Product overview Page 4 Battery removal (Figure A) Page 5 Tool change (Figure B) Page 5 Rotational direction switch (Figure C) Page 5

Quick guide from the manual

This manual provides essential instructions for the Bosch GSR 10,8-LI Professional Cordless Screwdriver. Before using the tool, ensure the battery is fully charged and the correct bit is installed. The tool is designed for driving and loosening screws as well as drilling in wood, metal, ceramic, and plastic.

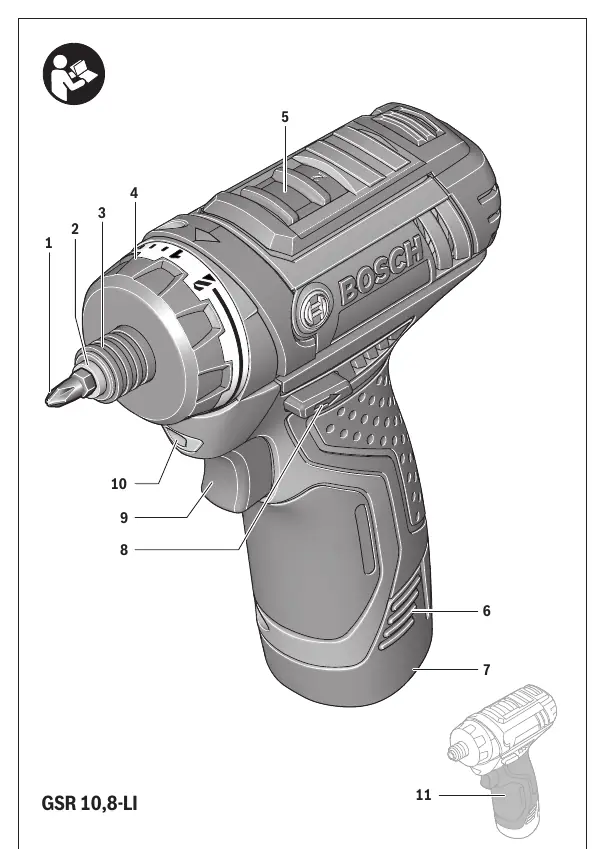

Product overview
Product overview

Product Description

The tool features a gear selector, torque presetting ring, and a built-in 'PowerLight' for illuminating the work area. The numbering of features refers to the illustration on the graphics page.

Assembly

Battery Charging: The battery is supplied partially charged. Charge it fully in the recommended charger before first use. To remove the battery, press the unlocking buttons and pull the battery downwards.

Battery removal (Figure A)
Battery removal (Figure A)
Tool change (Figure B)
Tool change (Figure B)

Changing the Tool: Pull the locking sleeve forward and push the insert tool into the tool holder until it stops. The tool will lock automatically. To remove, pull the locking sleeve forward again.

Operation

Starting Operation: Set the rotational direction switch to the center position to prevent accidental starting. Insert the charged battery into the handle until it engages.

Rotational direction switch (Figure C)
Rotational direction switch (Figure C)

Rotational Direction: Use the rotational direction switch to change the direction. Right rotation is for drilling and driving screws; left rotation is for loosening screws and nuts.

Setting Torque: Use the torque presetting ring to select the required torque in 20 steps. The 'drill' symbol deactivates the safety clutch for drilling.

Gear Selection: Use the gear selector only when the machine is at a standstill. Gear I is for low speed (screwdriving/large diameters), and Gear II is for high speed (small diameters).

Maintenance and Service

Always remove the battery before performing any work on the machine (maintenance, tool change, etc.) or during transport and storage. Keep the machine and ventilation slots clean for safe operation. If the battery is no longer functional, contact an authorized Bosch after-sales service agent.

Manufacturer information

Bosch

Brand profile
Manufacturer website https://www.bosch.com Support https://www.bosch.com/contact

Practical help

Common problems

Tool stops during operation

The battery may be empty or the tool may be overloaded/overheated. Check the battery charge and allow the tool to cool down.

Gear selector does not move

Turn the tool holder slightly with the insert tool to align the gears.

Before use

  • Charge the battery fully before first use.
  • Ensure the rotational direction switch is in the center position to prevent accidental starting.
  • Check that the correct bit is inserted and locked.
  • Ensure the workpiece is secured.

Specs in practice

Rated voltage
10.8V DC
No-load speed (1st gear)
0-400 min-1
No-load speed (2nd gear)
0-1300 min-1
Max. drilling diameter (steel)
10 mm

Images and diagrams

  • Figure A: Battery removal and charging.
  • Figure B: Tool insertion and removal using the locking sleeve.
  • Figure C: Rotational direction switch settings.

Model compatibility

  • Use only original Bosch lithium-ion batteries.
  • Use only recommended Bosch chargers (AL 11..).
