Bosch GRW 18V-160 Cordless Mixer Spare Parts Guide
A technical guide for the Bosch GRW 18V-160 cordless mixer, providing detailed exploded-view diagrams of the device components, handle assembly, and essential accessories for maintenance and repair.
Table of contents
Manual images
Jump to the sectionQuick guide from the manual
This document serves as an official spare parts and component identification guide for the Bosch GRW 18V-160 cordless mixer (model number 3 601 AC3 000). It provides detailed exploded-view diagrams to assist in identifying internal components, handle assembly parts, and standard accessories. This guide is intended for technical reference during maintenance or repair procedures.
Device components and assembly
The manual provides comprehensive exploded-view diagrams that illustrate the internal structure of the mixer. These diagrams are essential for identifying specific parts, screws, and housing components. Users should refer to these diagrams when disassembling the unit for cleaning or part replacement.
Handle assembly
The handle assembly is detailed in a separate exploded view, showing the arrangement of the grip, switches, and internal wiring components. This section is critical for users performing repairs on the handle or replacing control elements.
Accessories and maintenance
The guide identifies the essential accessories included with the GRW 18V-160, such as the battery pack (657), charger (656), mixing paddle adapter (653), wrench (652), and lubricant (890). These items are necessary for the proper setup and ongoing maintenance of the tool.
Contact and support
For technical support or service inquiries, you can contact Robert Bosch d.o.o, Kneza Branimira 22, 10 040 Zagreb, Croatia. Additional information is available at https://www.boschtoolservice.com.
Official resources from the manual
Manufacturer information
Bosch
Practical help
Before use
- Ensure the battery pack (657) is fully charged before operation.
- Verify that the mixing paddle adapter (653) is securely attached to the spindle.
- Check that the handle assembly is intact and all screws are tightened.
- Ensure the correct lubricant (890) is used for maintenance as specified.
Images and diagrams

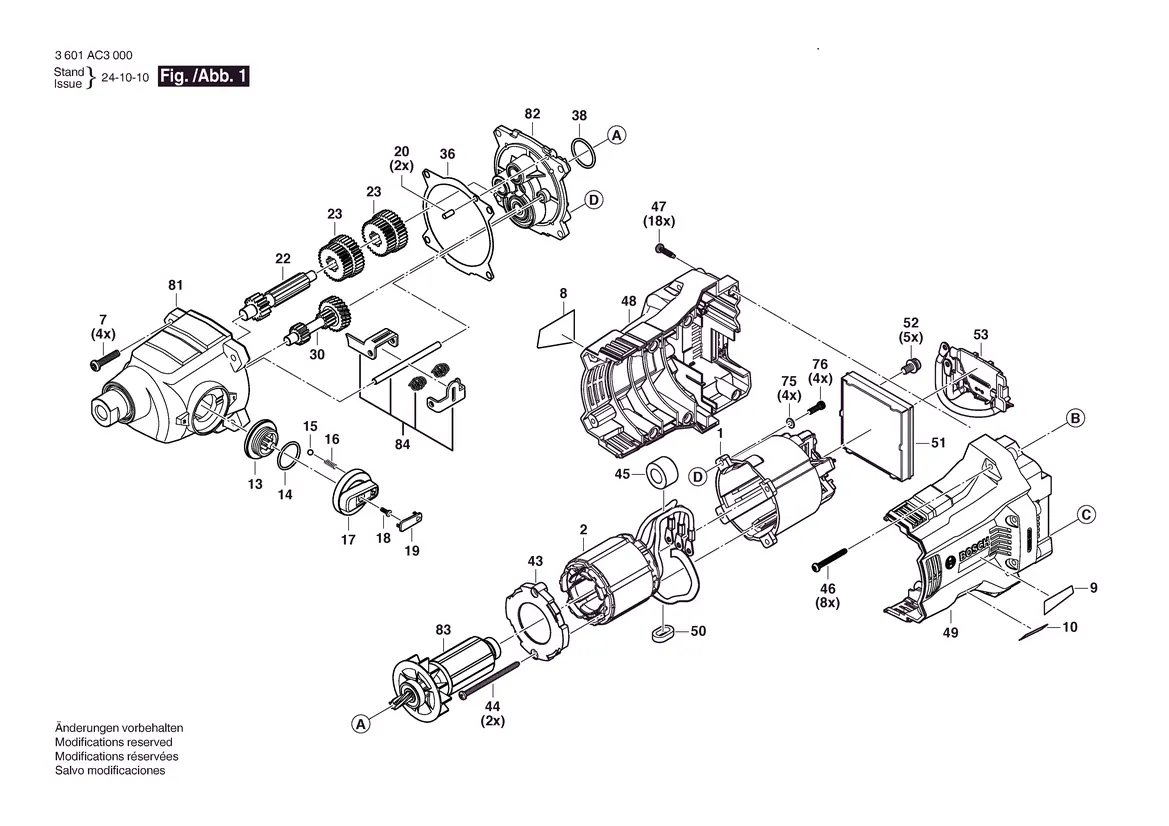

- Fig. 1: Exploded view of the main motor housing and internal mechanical components.

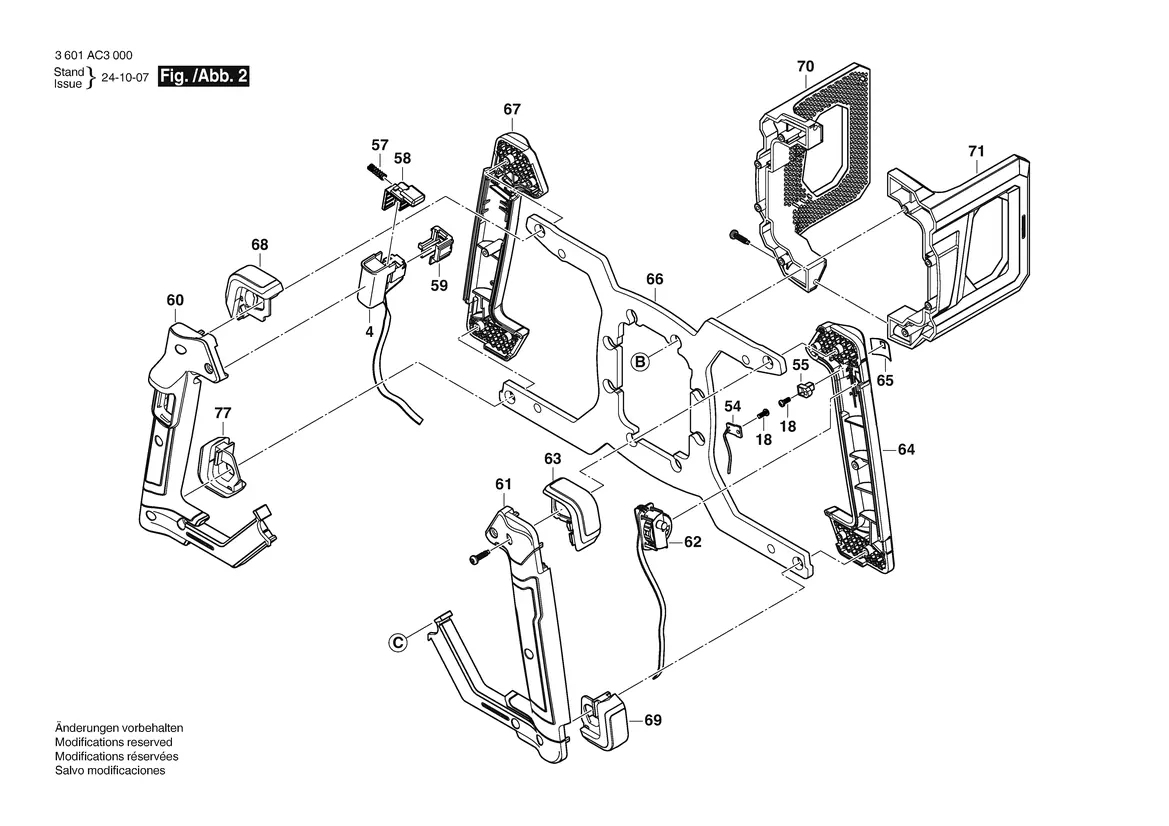

- Fig. 2: Exploded view of the handle assembly, including switches and wiring.

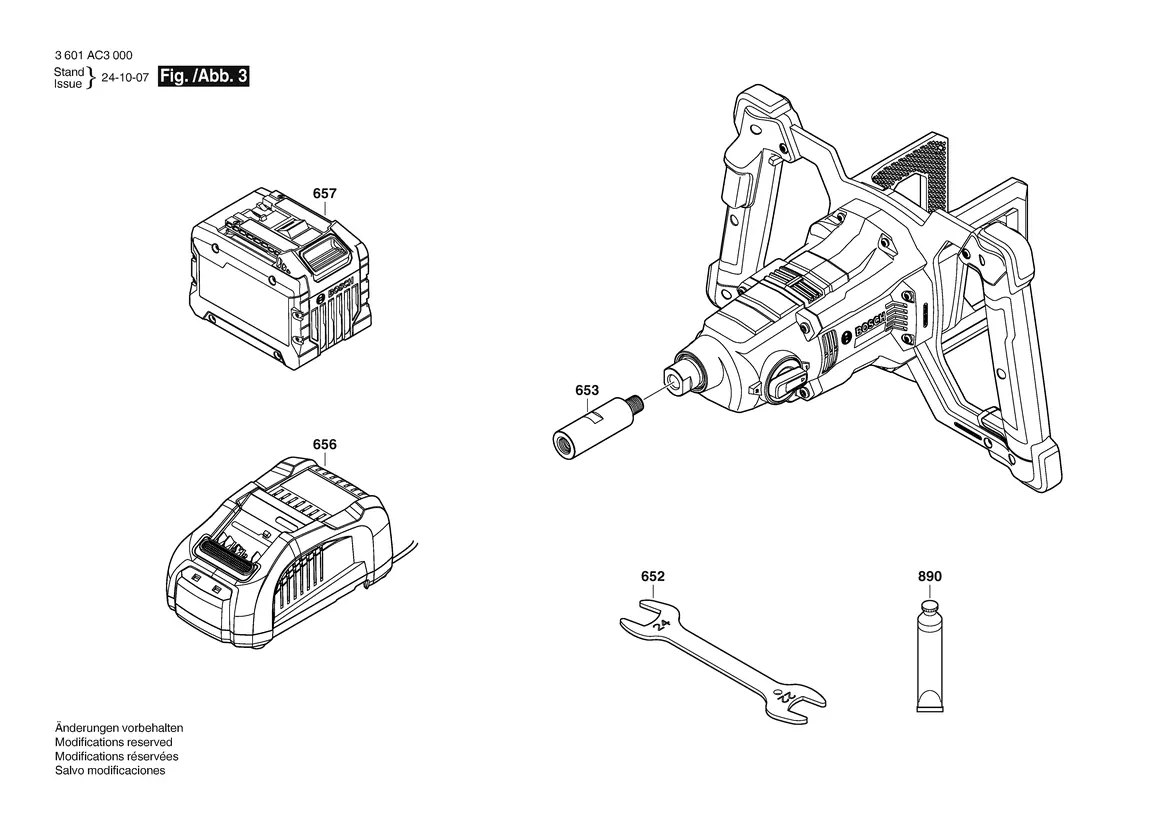

- Fig. 3: Overview of the battery, charger, and essential accessories.
Model compatibility
- This guide is specific to the Bosch GRW 18V-160 model (3 601 AC3 000).
