Bosch ICON Wiper Blades with ClearMax 365 Product Guide
A comprehensive guide to Bosch ICON wiper blades featuring ClearMax 365 technology. Includes information on performance benefits, OE fitment solutions, coverage charts, and connection types.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This document provides an overview of the Bosch ICON wiper blade technology and fitment options. It is designed to help users identify the correct wiper blade for their vehicle based on arm type and connection style. The primary technology featured is ClearMax 365, which enhances durability and performance in various weather conditions.
Product Overview

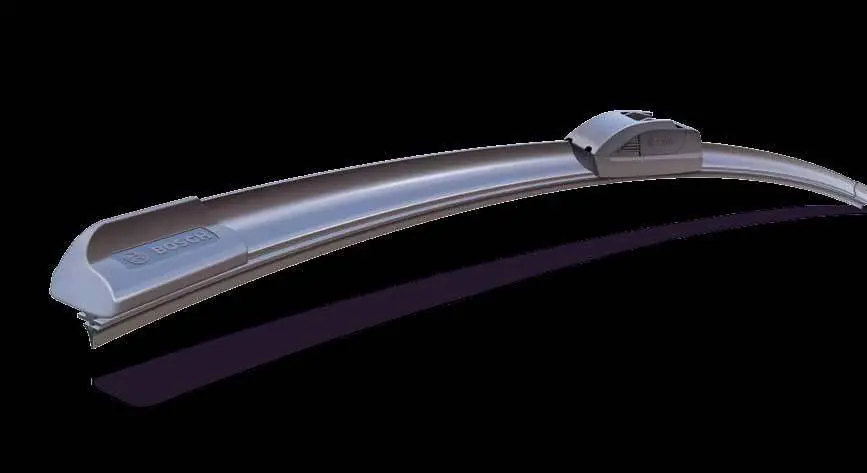

Bosch ICON wiper blades utilize the patented ClearMax 365 technology. This design combines a soft rubber core with a hard polymer shell, which are physically and chemically bonded to create a superior wiping edge. Key benefits include:
- Up to 40% longer performance life compared to other premium beam blades.
- Smooth and quiet operation.
- Optimum visibility in extreme weather conditions.
- Exceptional performance at high speeds.
- A customized precision fit.
- Resistance to hot weather and flexibility in cold weather.
- Does not crack or absorb fluids.
Fitment and Compatibility
The Bosch ICON range is designed to cover a wide variety of vehicle applications. The document provides coverage charts for two main categories:
- Hook Arm: Coverage for various lengths ranging from 13 inches to 28 inches.
- OE Arm: Coverage for specific OE fitment solutions, including lengths from 17 inches to 28 inches.
Always verify the required blade length and arm type for your specific vehicle before purchase.
Connection Types
The ICON series features the OE Multi-Clip connector system, designed to simplify installation for a wide range of vehicles. The most popular connection types covered include:
- Side Lock: Available in 22 mm and 19 mm sizes.
- Top Lock: Available in 19 mm and 16 mm sizes, as well as a specific BMW configuration.
- Pinch Tab: Supported for relevant applications.
Note that some Top Lock and Side Lock applications may require a specialty adapter.
Manufacturer information
Bosch
Practical help
Common problems
Incompatible connection type
Verify if your vehicle requires a specialty adapter for Top Lock or Side Lock applications.
Incorrect blade length
Consult the coverage charts provided in the document to match your vehicle's required blade length (in inches) with the correct Part #.
Before use
- Identify your vehicle's wiper arm type (Hook Arm vs. OE Arm).
- Measure the required wiper blade length in inches.
- Determine the specific connection type (Side Lock, Top Lock, or Pinch Tab).
- Check if a specialty adapter is required for your specific connection type.
Show more Show less
Specs in practice
- ClearMax 365
- Patented rubber technology featuring a soft rubber core with a hard polymer shell for superior durability and wiping performance.
- OE Multi-Clip
- A flexible connector system designed to fit various top-lock and side-lock applications.
Images and diagrams

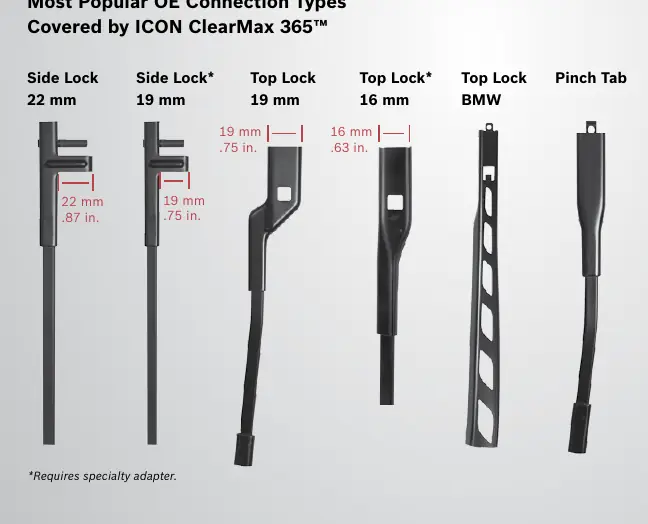

- The document illustrates the most popular OE connection types, including Side Lock (22mm/19mm), Top Lock (19mm/16mm/BMW), and Pinch Tab.
Model compatibility
- Some Top Lock and Side Lock applications require a specialty adapter.
- Coverage charts are divided into Hook Arm and OE Arm categories.
