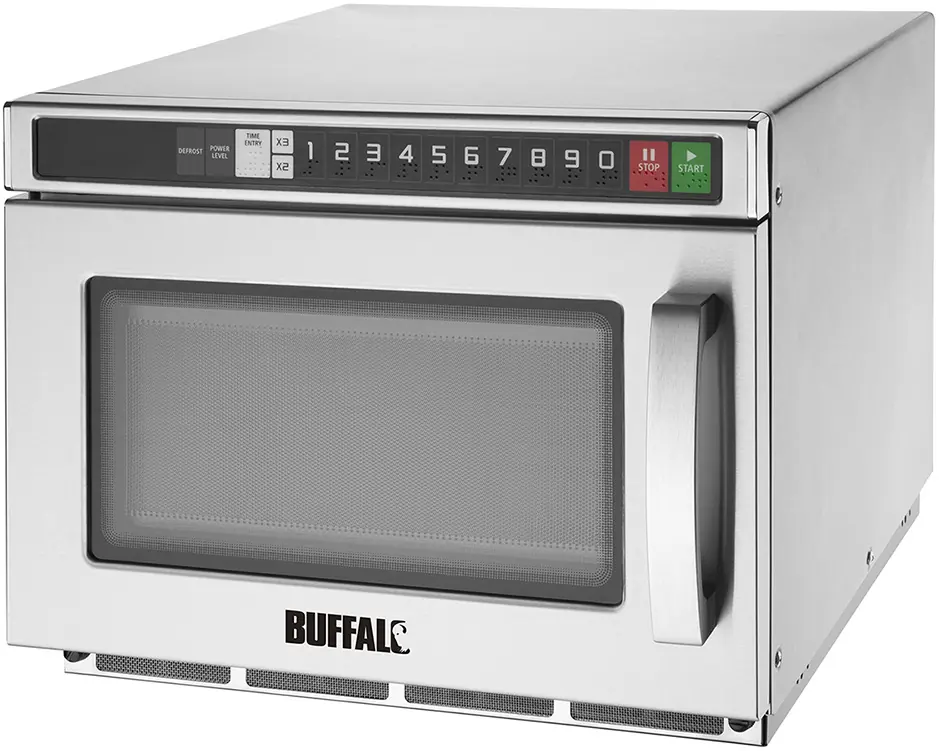

Buffalo 17L 1800W Commercial Programmable Microwave Oven User Manual
Quick guide for the Buffalo 17L 1800W Commercial Programmable Microwave Oven (FB865 / FE143-E). Includes installation, operation modes, programming, cleaning, and troubleshooting.
Quick answers from the manual
Quick answer
- To program the microwave, open the door, press and hold the '1' button for 5 seconds to enter Programming Mode. Select the desired number button, set the cooking time, press 'POWER LEVEL' to set the power, and press 'START' to save. p. 13
Key actions
- Stacking two ovens p. 6
- Cleaning the oil baffle p. 17
First start
- Power up the oven and ensure it is placed on a flat, stable surface with adequate ventilation. p. 5
Problems and fixes
Arcing/Sparking
Remove metal objects and use microwave-safe utensils only.
p. 18Maintenance and reset
- To clear the 'CLEAN FILTER' reminder, press and hold the 'STOP' button for 3 seconds. p. 15
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Microwave Output | 1800W | Power output for cooking. | p. 18 |
| Oven Capacity | 17L | Internal volume. | p. 18 |
Where to find it in the PDF
- Safety Instructions p. 2, 3, 4
- Installation p. 5, 6
- Operation p. 10, 11, 12, 13
- Cleaning and Maintenance p. 16, 17
- Troubleshooting p. 18
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This manual provides instructions for the Buffalo 17L 1800W Commercial Programmable Microwave Oven. It covers safety, installation, operation, programming, and maintenance. Always ensure the oven is placed on a flat, stable surface and that ventilation requirements are met.
Installation
For sufficient ventilation, allow a minimum of 30cm of space above the oven, 10cm at the back and right side. The left side must be open. Do not cover or block any openings on the appliance, or remove the feet. A maximum of 2 appliances can be stacked together using the provided mounting plates.
Operation Modes
Idle Mode: The oven enters this mode after a set time in Ready Mode. The display shows 'E'.
Ready Mode: The oven is ready to begin a manual or preset cooking cycle. 'READY' is shown on the display.
Manual Cook Mode: Press the 'TIME ENTRY' button, set the time using number buttons, press 'POWER LEVEL', set the power level (default 100%), and press 'START' to begin.
Preset Program Cook Mode: In Ready Mode, press a number button to run a preset program.
Defrost Function: In Ready Mode, press 'DEFROST', set the time, and press 'START'. Default power is 20%.
Programming Mode: Open the door, press and hold number button '1' for 5 seconds. Select a number button to program, set the time, set the power level, and press 'START' to save.
Stage Cooking: Allows cooking at different power levels in up to three stages. After setting the first stage, press 'TIME ENTRY' to set the next stage, then press 'START' to save.
Cleaning and Maintenance
Always switch off and disconnect the power supply before cleaning. Clean the door frame, seal, and interior regularly. Use a mild detergent and a damp cloth. Do not use abrasive powders or pads. The oil baffle and filter are removable for cleaning.
Troubleshooting
If the unit is not working, check the power supply, plug, fuse, and door closure. If arcing or sparking occurs, remove metal objects and use only microwave-safe utensils. Interference with TV/radio reception is normal during operation.
Practical help
Common problems
Unit not working
Check if the unit is plugged in and switched on, check the fuse, and ensure the door is closed securely.
Arcing/Sparking
Remove metal objects, use only microwave-safe utensils, and clean the oven interior.
Interference with TV/Radio
This is normal during the operation of the appliance.
Before use
- Remove all packaging materials and protective film.
- Place on a flat, stable, heat-resistant surface.
- Ensure proper ventilation (30cm above, 10cm back/right, left open).
- Check for damage to the door, seals, or hinges.
- Connect to a circuit protected by an RCD.
Specs in practice
- Microwave Output
- 1800W power for heating.
- Oven Capacity
- 17 Liters.
- Operation Frequency
- 2450MHz.
Images and diagrams
- Control panel layout with number buttons and mode keys.

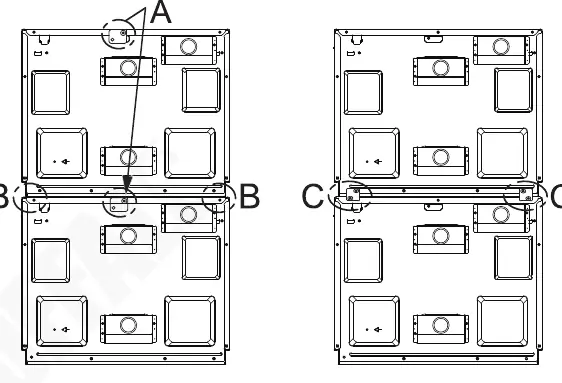

- Stacking instructions for mounting two ovens.
- Oil baffle removal and installation.

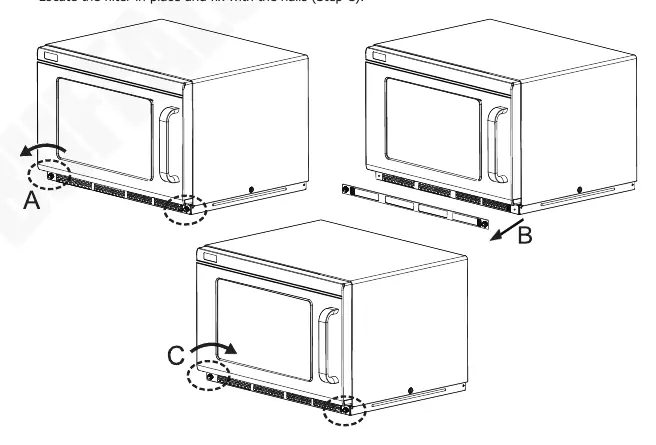

- Filter removal and installation.
Model compatibility
- Use only microwave-safe utensils.
- Avoid metal trays, twist ties, or metal-trimmed items.
- Do not use for industrial or laboratory purposes.
