User Manual for Caliber RCD 234DAB-BT Car Radio
Quick guide for the Caliber RCD 234DAB-BT car radio. Includes installation instructions, wiring diagrams, Bluetooth pairing, radio operation, and troubleshooting.
Quick answers from the manual
Quick answer
- The Caliber RCD 234DAB-BT is a car radio supporting CD, USB, SD, and Bluetooth. Installation requires a 12V negative ground system and proper wiring of ISO connectors. Always remove the two transport screws before installation. p. 1, 4, 8
Key actions
- Pairing Bluetooth p. 15
- Resetting the unit p. 6
First start
- After installation, reconnect the battery and press the (RES) button with a pointed object. p. 6
Show 4 more answers Show less
Problems and fixes
No Power
Check and make sure that the fuses did not blow.
p. 18Maintenance and reset
- Clean with a dry cloth; do not use liquids. Replace fuses with the same amperage (10A). p. 17
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Operating Power | 12 Volts DC | Negative Ground | p. 2 |
| Output Impedance | 4 to 8 Ohms | Speaker impedance range | p. 2, 4 |
| Fuse | 10 A | Required fuse rating | p. 2 |
Where to find it in the PDF
- Specifications p. 2
- Installation p. 8, 9
- Wiring Connections p. 10, 11
- Bluetooth Operation p. 15
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Caliber RCD 234DAB-BT is a car radio unit designed for 12V DC negative ground systems. This guide covers essential installation, operation, and maintenance steps. Before starting, ensure you have removed the two transport screws from the top of the unit, as failure to do so may prevent CD loading.
Installation
Professional installation is recommended if you are not confident with automotive electrical systems. Always disconnect the negative battery terminal before beginning.
- DIN Front Mount: Remove the old unit, insert the supplied mounting sleeve into the dashboard opening, and bend the tabs to secure it. Attach the wiring, then insert the radio until it clicks.
- Wiring: Connect the ISO connector leads according to the diagram. Ensure the black lead is connected to a clean, bare metal chassis ground.
- Speaker Requirements: Use 4 speakers with an impedance of 4 to 8 Ohms. Do not bridge outputs or ground negative speaker leads to the chassis.
- DAB Antenna: Place the antenna on the windshield near the A-post. Stick the transparent part to the glass and the black part to the metal frame.
Basic Operation
- Power: Press the PWR button to turn on/off.
- Mode Selection: Press the MOD button to cycle through AUX, RADIO, CD, and Bluetooth modes.
- Sound Settings: Use the SEL button to access Volume, Treble, Balance, Fader, Loudness, and Equalizer settings.
- Clock: Press and hold the PTY/CLK button to set the time using the volume knob.
Bluetooth Operation
The unit is always in standby mode for pairing. Search for "RCD234DBT Caliber" on your phone. If a password is required, enter "0000". Once paired, you can make calls, accept/reject calls, and stream audio (A2DP).
Maintenance
Clean the unit with a clean, dry cloth. Do not use liquids or petroleum distillates. If replacing a fuse, ensure the new fuse has the same amperage (10A) as the original.
Manufacturer information
Caliber Europe
Practical help
Common problems
No power
Check that the fuses have not blown.
No radio reception
Check the antenna connection and ensure it is fully extended and not broken.
CDs cannot be loaded
Ensure the transport screws have been removed from the top of the unit.
Stereo indicator is blinking
The reception signal is too low; set the frequency more accurately.
Before use
- Disconnect the negative battery terminal before starting installation.
- Remove the two transport screws from the top of the unit.
- Verify the vehicle has a 12V battery and negative grounding.
- Ensure speakers have an impedance of 4 to 8 Ohms.
- Press the (RES) button with a pointed object after installation to reset the unit.
Show more Show less
Specs in practice
- Operating Power
- 12 Volts DC, Negative Ground.
- Output Impedance
- 4 to 8 Ohms (must be strictly followed to avoid damage).
- Operating Temperature
- -20°C to 60°C.
Images and diagrams

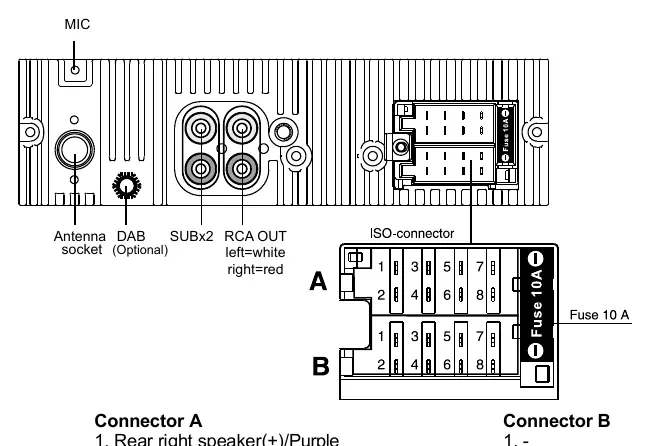

- The wiring diagram shows the ISO connector pinout for speakers and power.
- The DAB antenna installation diagram illustrates placement on the windshield near the A-post.
Model compatibility
- Designed for 4 speakers only.
- Supports CD, MP3, WMA, USB, and SD cards.
- Requires 12V DC power.
