User Manual for Camry CR 3024 3-in-1 Sandwich Maker
Quick guide for the Camry CR 3024 3-in-1 sandwich maker. Includes safety instructions, operating steps, cleaning procedures, and technical specifications.
Quick answers from the manual
Quick answer
- This manual provides safety instructions, operating procedures, and maintenance guidelines for the Camry CR 3024 3-in-1 Sandwich Maker. p. 3, 4, 5
Key actions
- Operating the device p. 5
- Cleaning the device p. 5
First start
- Initial setup and preparation p. 4, 5
Show 2 more answers Show less
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Voltage | 220-240V ~50/60Hz | Operating voltage | p. 5 |
| Power | 700W (Nominal), 1000W (Max) | Power consumption | p. 5 |
Where to find it in the PDF
- Safety Instructions p. 3, 4
- Device Description p. 4
- Operating Instructions p. 5
- Cleaning and Maintenance p. 5
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Camry CR 3024 is a 3-in-1 sandwich maker designed for domestic use. Before first use, remove all packaging and labels, wipe the heating plates with a damp cloth, and lightly grease them with oil. Run the device empty for a few minutes to eliminate factory odors; some smoke is normal during this process.
Description of the device
- (1) Toaster cover
- (2) Power indicator light (red)
- (3) Thermostat lamp (green)
- (4) Closing clip
- (5) Heating plate lock
- (6) Waffle plate
- (7) Sandwich plate
- (8) Grill plate
Using the device
- Connect the closed device to a grounded power outlet. The power and ready indicator lights will turn on.
- Wait approximately 10 minutes for the device to reach the appropriate temperature. The ready indicator light will turn off.
- Open the device and place the prepared product on the bottom heating plate.
- Close the device and secure it with the closing clip (4). Do not force the lid (1) closed.
- The thermostat lamp (3) will cycle on and off during operation, indicating it is maintaining the correct temperature.
- Cooking time is approximately 5 to 15 minutes, depending on ingredients and personal preference.
- Open the device and remove the finished product using only a wooden or plastic spatula.
- Close the device between batches to allow the plates to reheat.
Cleaning and maintenance
Always unplug the device and allow it to cool completely before cleaning. Wipe the heating surfaces with a damp cloth, followed by a dry one. For stubborn residue, apply a small amount of cooking oil, wait a few minutes, and gently remove with a wooden spatula. Do not use metal tools, abrasive sponges, or scouring powders, as these will damage the non-stick coating. Never immerse the device in water.
Safety instructions
Important: This device is not intended for use with external timers or remote control systems. Do not leave the device unattended while connected to power. Keep away from children; children over 8 years old may only use the device under adult supervision. Do not use the device near flammable materials or on heat-sensitive surfaces. Always ensure the power cord is not touching hot surfaces or hanging over the edge of a counter.
Technical data
Power Supply: 220-240V ~50/60HzPower: 700W (Nominal), 1000W (Max)
Manufacturer information
Camry
Practical help
Common problems
Device emits smoke during first use
This is normal; let the device run empty for a few minutes to burn off factory residues.
Food sticks to the plates
Ensure plates are lightly greased with oil before use and use only wooden or plastic spatulas to remove food.
Before use
- Remove all packaging and labels from the housing and between plates
- Wipe heating plates with a damp cloth
- Lightly grease plates with vegetable oil
- Run the device empty for a few minutes to remove factory smell
Show more Show less
Specs in practice
- Power Supply
- 220-240V ~50/60Hz
Images and diagrams

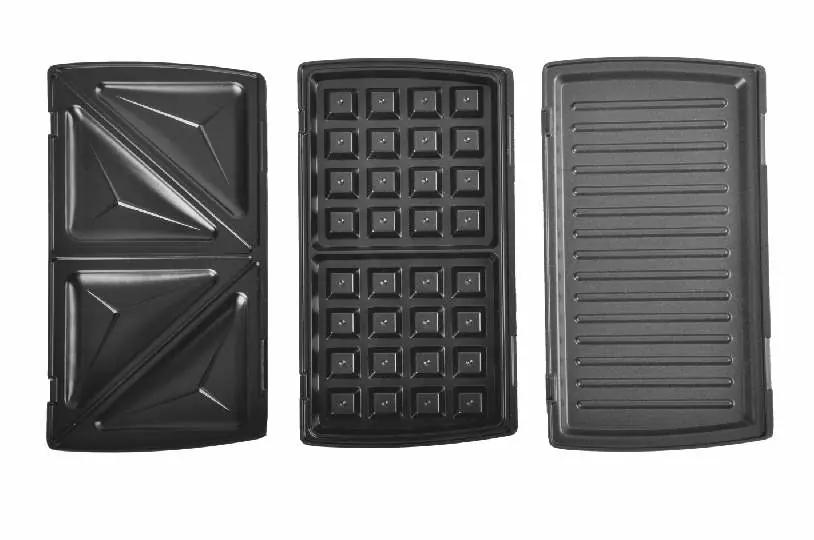

- The device features interchangeable plates for sandwiches, waffles, and grilling.
- The closing clip (4) secures the lid during operation.
- The red light (2) indicates power, and the green light (3) indicates the thermostat status.
Model compatibility
- Not compatible with external timers or remote control systems.
- Use only on heat-resistant surfaces.
