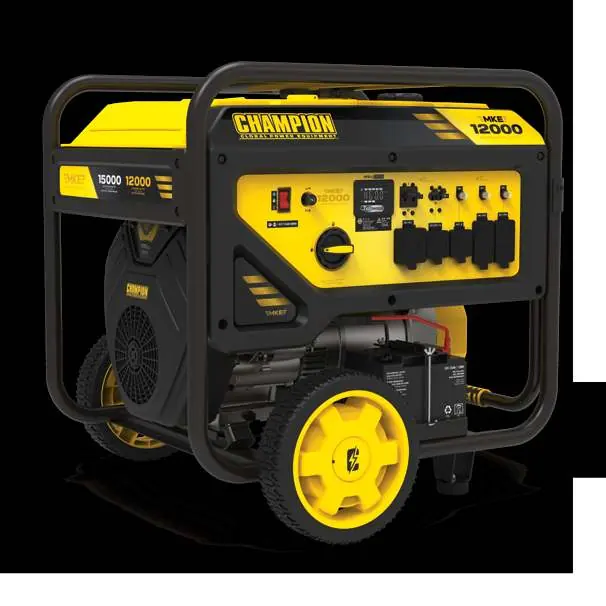

Quick Start Guide for Champion 12000W Electric Start Generator
Quick start guide for the Champion 12000W Electric Start Generator (Model 201160). Includes setup instructions, wheel kit installation, battery connection, oil and fuel requirements, and step-by-step starting procedures.
Table of contents
Manual images
Click an image to enlargeQuick Start Guide
This guide provides essential steps to set up and start your Champion 12000W Electric Start Generator. Always read the full operator's manual for complete safety and maintenance information.
Safety Warnings
- Carbon Monoxide Hazard: Never use the generator indoors, in a garage, or near windows/vents. It produces deadly carbon monoxide gas.
- Clearance: Keep all objects at least 5 feet (1.5 m) away from the generator to prevent fire hazards.
Setup
- Install Wheel Kit: Attach the wheels to the generator frame as shown in the assembly instructions.
- Remove from Pallet: Remove the wooden block from behind the support leg, slide the unit forward until wheels touch the ground, and use the handle to pull it off the pallet.
- Connect Battery: Cut the cable ties on the battery connector and push the two halves together firmly.
Preparation
- Add Oil: Use 5W-30 oil. Capacity is up to 1000 ml (33.8 fl. oz.). Do not overfill.
- Add Fuel: Use gasoline. Do not use E15 or E85 fuel.
- Location: Move the generator outdoors to a well-ventilated area.

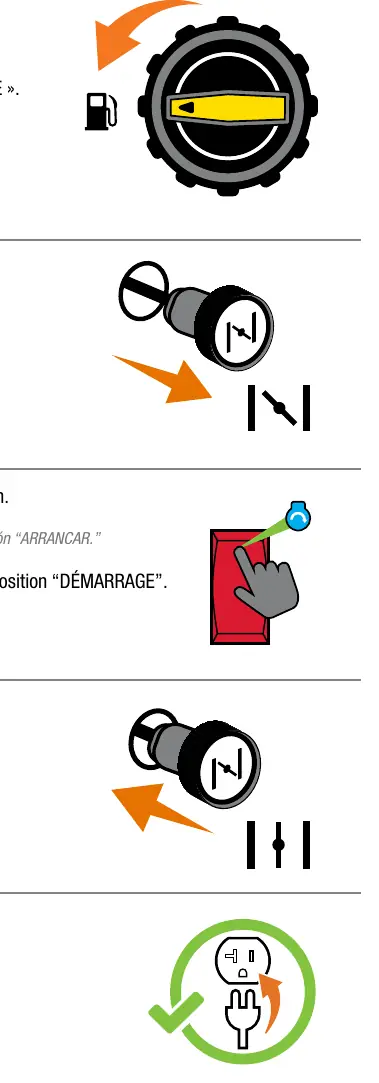

Starting Procedure
- Ensure no electrical devices are plugged in or turned on.
- Turn the fuel dial to the ON position.
- Pull the choke knob to the CHOKE position.
- Press and hold the ignition switch to the START position.
- Once the engine starts, push the choke knob in to the RUN position.
Operation
Once the generator is running, you may connect your electrical loads. For support, contact Champion Power Equipment at 1-877-338-0999 or visit championpowerequipment.com.
Official resources from the manual
Manufacturer information
Champion Power Equipment
Practical help
Common problems
Generator will not start
Ensure the fuel dial is in the ON position, the choke is set to CHOKE, and the battery is properly connected.
Engine performance issues
Check that the oil level is correct (do not overfill) and that you are using fresh gasoline (not E15 or E85).
Before use
- Install the wheel kit.
- Remove the generator from the shipping pallet.
- Connect the battery by joining the two connector halves.
- Add 5W-30 engine oil (up to 1000 ml).
- Add gasoline (do not use E15 or E85).
- Move the generator to an outdoor location.
Specs in practice
- Fuel Restriction
- Do not use E15 or E85 fuel.
- Safety Clearance
- Keep all objects at least 5 feet (1.5 m) from the generator.
Images and diagrams
- Wheel kit assembly shows attaching wheels to the frame.
- Battery connection involves cutting cable ties and pushing connectors together.
- Starting sequence shows fuel dial, choke knob, and ignition switch positions.
Model compatibility
- Do not connect electrical devices before starting the generator.
- Never start or stop the generator with electrical devices connected or turned on.
