Champion 201069 1200W Portable Generator Quick Start
Quick start guide for the Champion 201069 1200W portable generator. Includes essential setup, oil and fuel requirements, starting procedures, and critical safety warnings for outdoor operation.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This document provides the essential steps to set up and start your Champion 201069 1200W portable generator. Always read the full operator's manual before use to ensure safe operation and prevent damage or injury.
Setup and Assembly
Before operating the generator, complete the following assembly steps:
- Unpacking: Open the shipping carton carefully.
- Vibration Mounts: Attach the vibration mounts to the generator frame as indicated in the assembly instructions.
Preparation
Proper preparation is required before the first start:
- Add Engine Oil: Use 5W-30 oil. The capacity is up to 13.5 fl. oz. (400 ml). Do not overfill.
- Add Fuel: Use gasoline. Do not use E15 or E85 fuel blends.
Safety and Placement
Warning: Never operate the generator in enclosed areas, such as inside a house or garage. Always move the generator to an open, outdoor area and point the exhaust away from structures. Keep all objects at least 5 feet (1.5 m) away from the generator to prevent fire hazards from muffler heat and exhaust gases.
Starting Procedure
- Ensure no electrical devices are plugged into the generator. Never start or stop the generator with electrical devices connected or turned on.
- Turn the fuel dial to the RUN position.
- Move the choke lever to the CHOKE position.
- Pull the recoil starter to start the engine.
- Once the engine is running, move the choke lever back to the RUN position.
- Connect your electrical loads.
Support
If you need assistance or have questions, you can contact Champion Power Equipment at 1-877-338-0999 or visit their website at championpowerequipment.com.
Official resources from the manual
Manufacturer information
Champion Power Equipment
Practical help
Common problems
Generator will not start
Ensure the fuel dial is set to RUN, the choke is in the CHOKE position, and no electrical devices are plugged in.
Engine damage
Do not overfill the oil reservoir (max 400ml) and never use E15 or E85 fuel.
Fire hazard
Ensure the generator is at least 5 feet (1.5m) away from all objects and never operate in enclosed spaces like garages.
Before use
- Unpack the generator from the shipping carton.
- Attach the vibration mounts.
- Add 5W-30 engine oil (max 400ml).
- Move the unit to an open, outdoor area.
- Add gasoline (avoid E15/E85).
- Ensure no devices are plugged in.
Images and diagrams

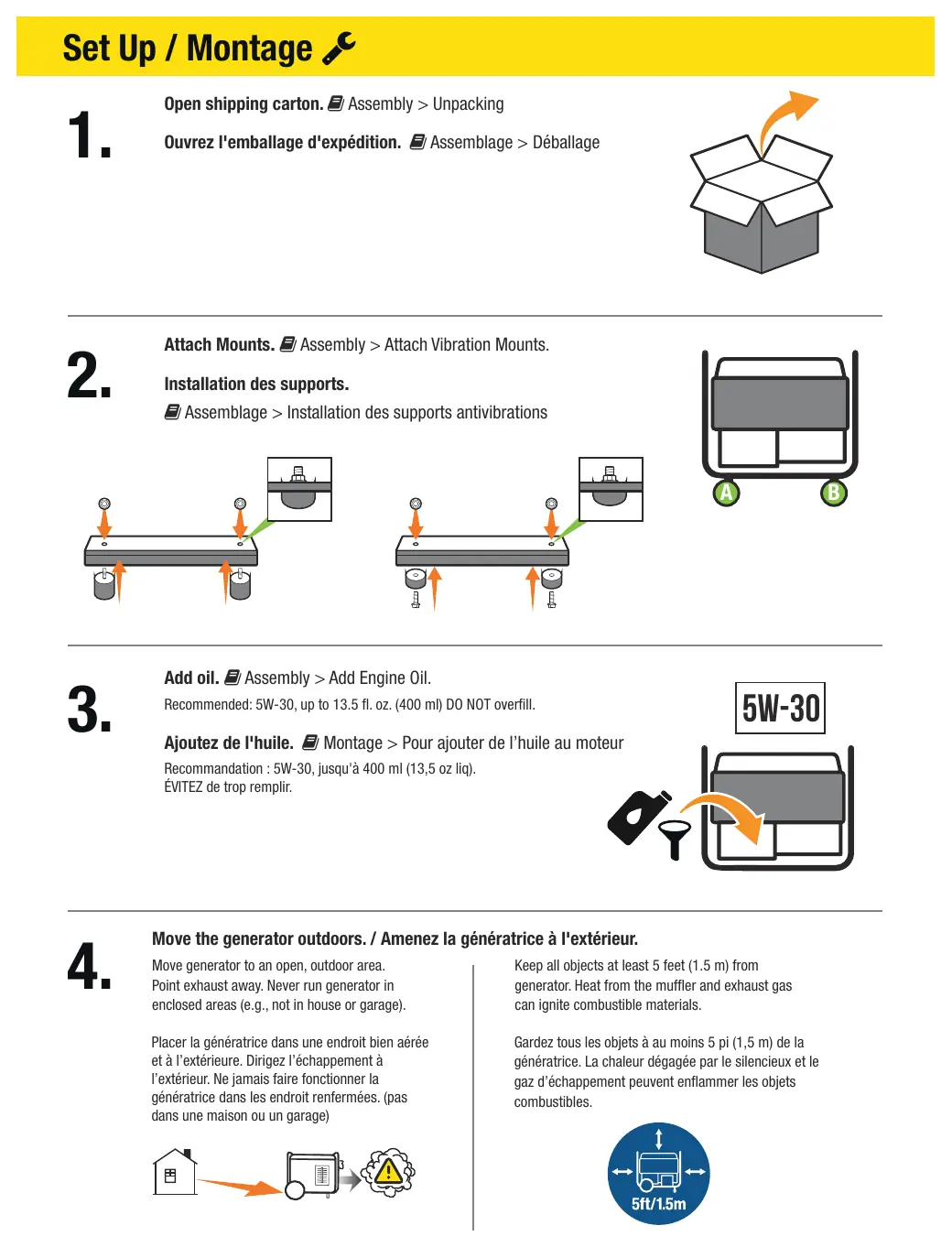

- Steps 1-2: Assembly of vibration mounts.
- Step 3: Oil filling procedure.
- Step 4: Safety clearance requirements.

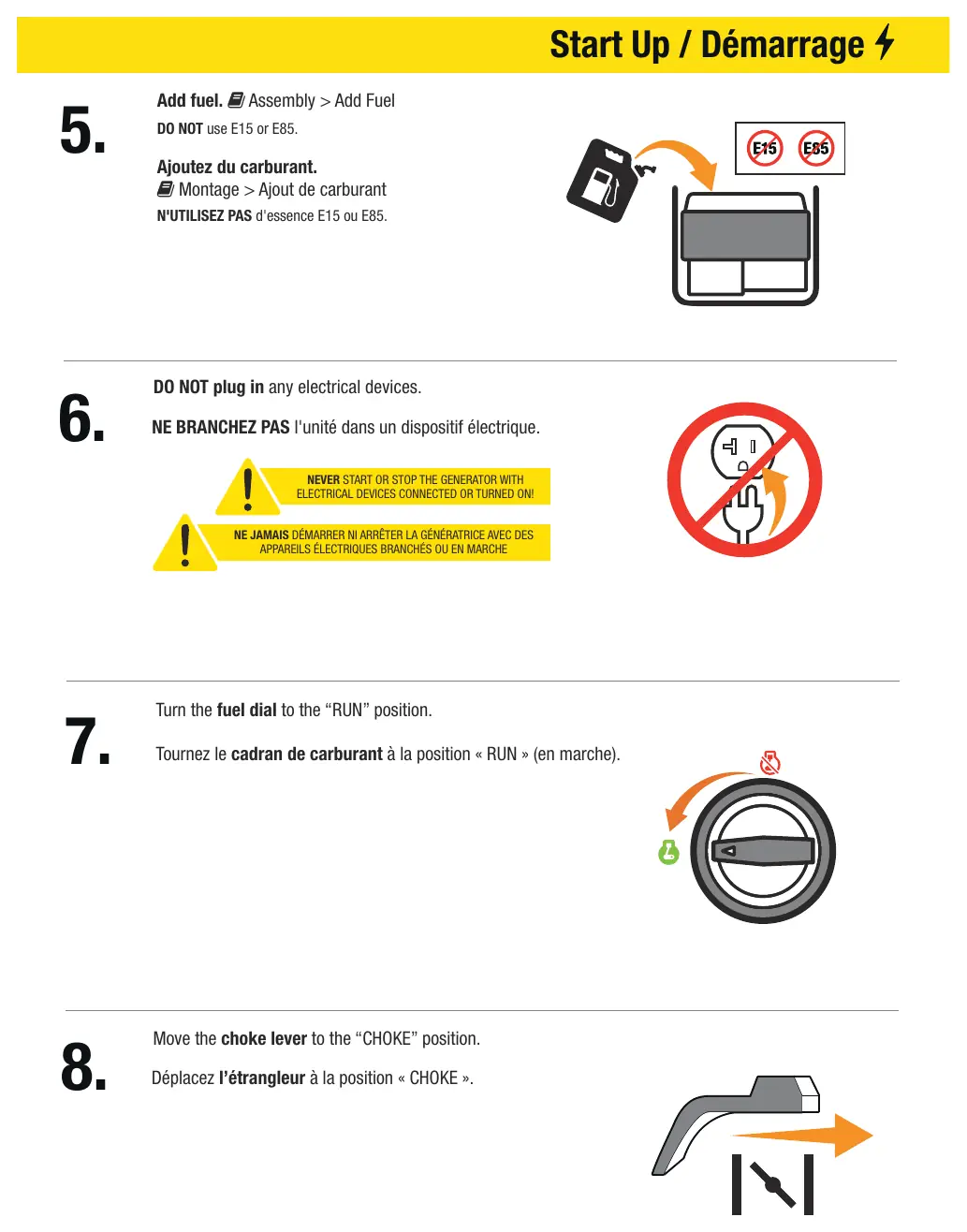

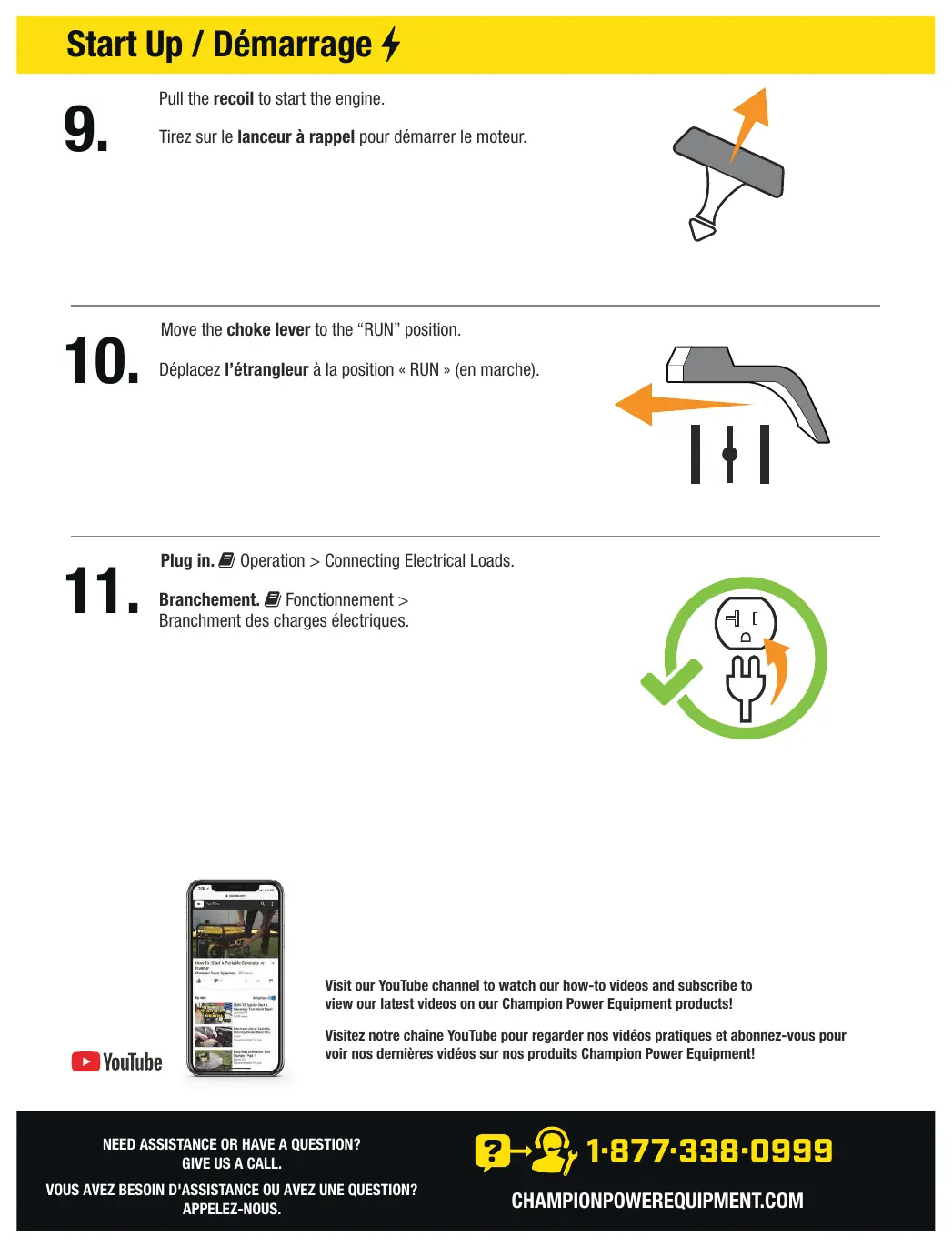

- Steps 7-10: Starting sequence involving fuel dial, choke lever, and recoil.
Model compatibility
- Do not use E15 or E85 fuel.
- Do not operate indoors, in a house, or in a garage.
