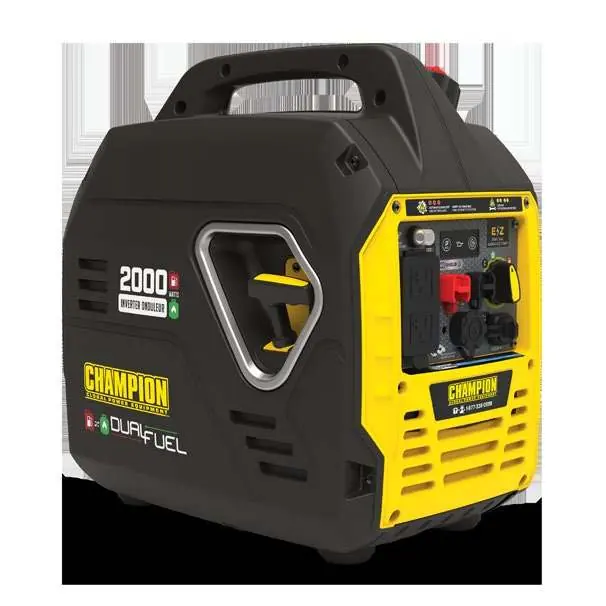

Quick Start Guide for Champion 2000W Dual Fuel Inverter Generator 201230
Quick start guide for the Champion 2000W Dual Fuel Inverter Generator (Model 201230). Includes setup, oil and fuel instructions, and start-up procedures for gasoline and propane operation.
Quick answers from the manual
Quick answer
- The Champion 201230 is a dual-fuel inverter generator. To start, add 5W-30 oil, move it outdoors, add fuel (gasoline or propane), and follow the specific start-up sequence for your chosen fuel type using the EZ Start Dial. p. 2, 3
Key actions
- Add 5W-30 oil p. 2
- Start with Gasoline p. 3
- Start with Propane p. 3
First start
- Add oil, move outdoors, add fuel, ensure no devices are connected, then follow start-up procedure for chosen fuel. p. 2, 3
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Oil Type | 5W-30 | Recommended engine oil | p. 2 |
| Oil Capacity | 16.9 fl. oz. (500 ml) | Maximum oil capacity | p. 2 |
Where to find it in the PDF
- Safety and Overview p. 1
- Start Up p. 3
- Operation p. 4
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This document provides essential instructions for the initial setup and operation of the Champion 2000W Dual Fuel Inverter Generator (Model 201230). It covers safety precautions, oil and fuel requirements, and step-by-step starting procedures for both gasoline and propane (LPG) operation.
Safety Warnings
DANGER: Using a generator indoors can kill you in minutes. Generator exhaust contains carbon monoxide, a poison you cannot see or smell.
- NEVER use the generator inside a home or garage, even if doors and windows are open.
- ONLY use the generator outdoors and far away from windows, doors, and vents.
- Keep all objects at least 5 feet (1.5 m) from the generator to prevent ignition of combustible materials from muffler heat.

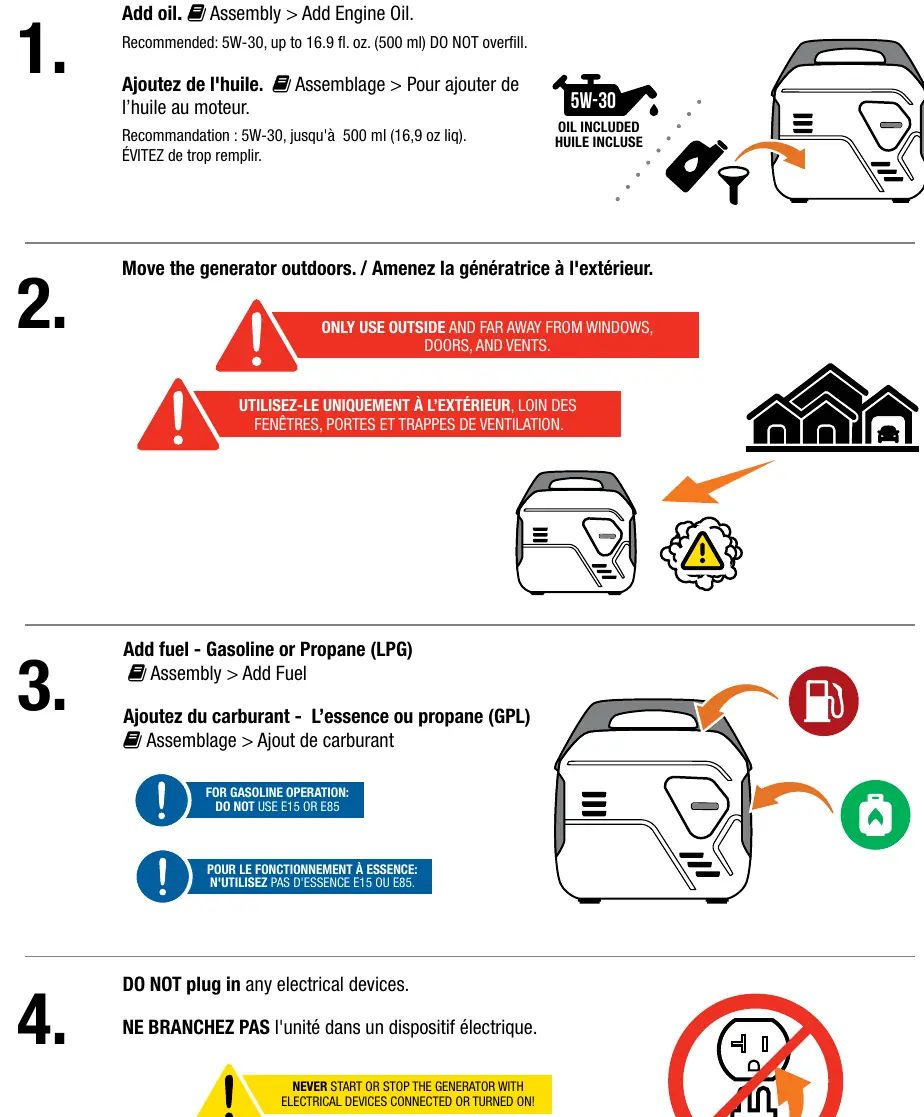

Setup
Before starting the generator, complete the following steps:
- Add Oil: Use 5W-30 oil. The capacity is up to 16.9 fl. oz. (500 ml). Do not overfill.
- Move Outdoors: Ensure the generator is placed in a safe, outdoor location.
- Add Fuel: Add gasoline or connect a propane (LPG) tank. Note: For gasoline operation, do not use E15 or E85 fuel.
- Prepare for Start: Do not plug in any electrical devices yet. Never start or stop the generator with electrical devices connected or turned on.
Starting the Engine
Gasoline Operation
- Turn the fuel vent lever to the "ON" position.
- Turn the EZ Start Dial to the "CHOKE" position.
- Pull the recoil to start the engine.
- Turn the EZ Start Dial to the "GASOLINE OPERATION" position.
Propane (LPG) Operation
- Open the propane tank valve.
- Turn the EZ Start Dial to the "CHOKE" position.
- Pull the recoil 3-5 times to prime the engine.
- Turn the EZ Start Dial to the "PROPANE OPERATION" position.
- Pull the recoil to start the engine.
Operation

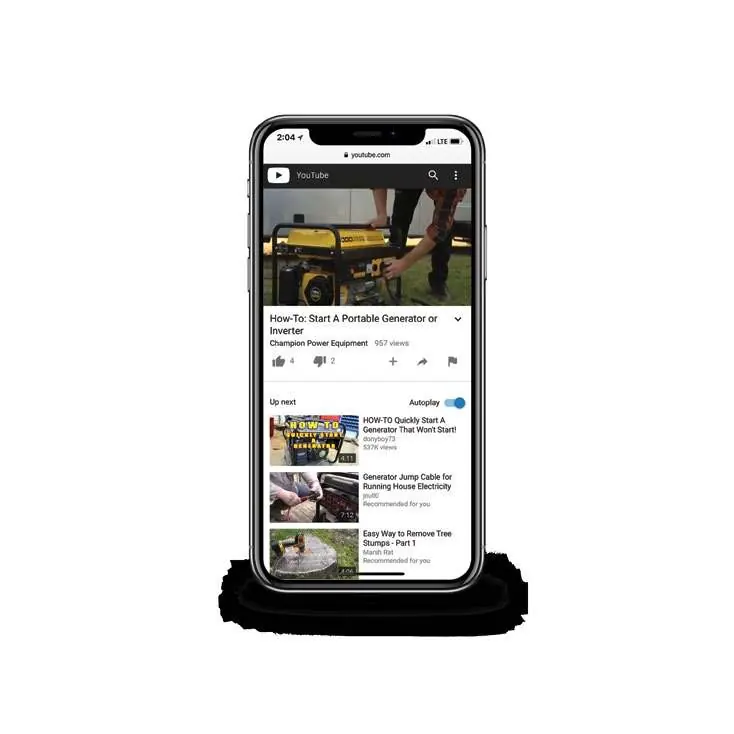

Once the engine is running, you may connect your electrical loads. Visit the Champion Power Equipment YouTube channel for additional how-to videos.
Manufacturer information
Champion Power Equipment
Practical help
Common problems
Generator will not start
Ensure fuel vent is ON (for gasoline), choke is set correctly, and propane valve is open (if using LPG). Verify you are not using E15 or E85 fuel.
Engine stalling
Ensure the generator is not overloaded and that the fuel supply is adequate.
Before use
- Add 5W-30 oil (up to 16.9 fl. oz./500 ml)
- Move generator to an outdoor location
- Add fuel (Gasoline or Propane)
- Ensure no electrical devices are plugged in
- Check that the fuel vent lever is in the ON position (for gasoline)
Specs in practice
- 16.9 fl. oz. (500 ml)
- Maximum oil capacity
Images and diagrams
- EZ Start Dial: Controls the fuel type and choke settings
- Fuel Vent Lever: Must be ON for gasoline operation
- Recoil Starter: Used to manually start the engine
Model compatibility
- Dual fuel capability: Supports Gasoline or Propane (LPG)
- Do not use E15 or E85 gasoline
