User Manual for WEN 2000W Inverter Generator 56200i

Quick guide for the WEN 2000W Inverter Generator 56200i. Includes setup, operation, maintenance, troubleshooting, and technical specifications.

Quick answers from the manual

Quick answer

  • The WEN 56200i is a 2000W inverter generator. It requires 0.37 quarts of 30W 4-stroke oil and 1 gallon of 87 octane unleaded gasoline. Always ground the unit before use. p. 1, 8, 9, 21

Key actions

  • Add gasoline p. 9
  • Ground the generator p. 9

First start

  • Add oil and fuel, ground the unit, turn ESC off, open vacuum relief valve, set switch to CHOKE, pull recoil starter, then set switch to ON. p. 8, 9, 11

Problems and fixes

Engine will not start

Check switch position, fuel quality, oil level, air cleaner, and spark plug.

p. 22

Maintenance and reset

  • If overload light is on, remove load, press power reset button, wait, and try again. p. 15

Technical specifications

Parameter Value Meaning Pages
Rated Wattage 1600 Watts Continuous power output p. 21
Surge Wattage 2000 Watts Peak power output p. 21

Where to find it in the PDF

  • Generator Components p. 7
  • Maintenance Schedule p. 16
Table of contents

Manual images

Click an image to enlarge
Oil dipstick and fill level Page 8 Fuel cap and valve controls Page 11 Air cleaner maintenance Page 18 Spark plug location Page 19 Wiring diagram Page 29

Quick guide from the manual

This manual provides essential instructions for the safe operation and maintenance of the WEN 2000W Inverter Generator (Model 56200i). Before using the generator, ensure it is placed on a level surface, properly grounded, and filled with the correct oil and fuel. Always operate the generator outdoors to prevent carbon monoxide poisoning.

Generator components

Familiarize yourself with the control panel and key components:

Wiring diagram
Wiring diagram
  • Vacuum Relief Valve: Located on the fuel cap.
  • 3-in-1 Switch: Controls the engine (Choke/On/Off).
  • Idle Control Switch (ESC): Adjusts engine speed based on load.
  • 120V Duplex Receptacle: For AC power output.
  • 12V DC Outlet & USB Charger: For DC power needs.
  • Circuit Breaker: Protects the generator from overload.

Generator preparation

Before the first use, you must prepare the generator:

Oil dipstick and fill level
Oil dipstick and fill level
  • Add Oil: The generator is shipped without oil. Use 30W, 4-stroke engine oil. Capacity is 0.37 quarts (0.35 liters). Check the level using the dipstick.
  • Add Gasoline: Use fresh, unleaded gasoline (minimum 87 octane). Do not overfill; the tank capacity is 1 gallon.
  • Grounding: Connect a grounding wire to the grounding nut on the control panel and to a copper/brass/steel grounding rod driven into the earth.

Operation

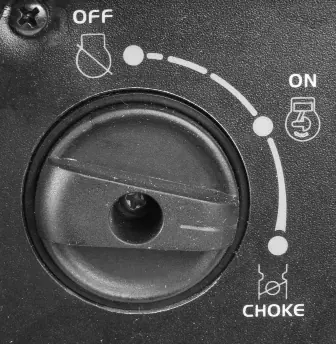

Fuel cap and valve controls
Fuel cap and valve controls

Starting the generator

  1. Unplug all electrical devices.
  2. Ensure the generator is grounded and oil/fuel levels are correct.
  3. Turn the ESC switch to OFF.
  4. Open the vacuum relief valve on the fuel cap (rotate to ON).
  5. Turn the 3-in-1 switch to CHOKE.
  6. Pull the recoil starter handle until resistance is felt, then pull quickly.
  7. Once started, turn the 3-in-1 switch to ON.

Stopping the generator

  1. Turn off and unplug all electrical devices.
  2. Turn the 3-in-1 switch to OFF.
  3. Close the vacuum relief valve on the fuel cap (rotate to OFF).

Maintenance and care

Regular maintenance is critical for generator longevity:

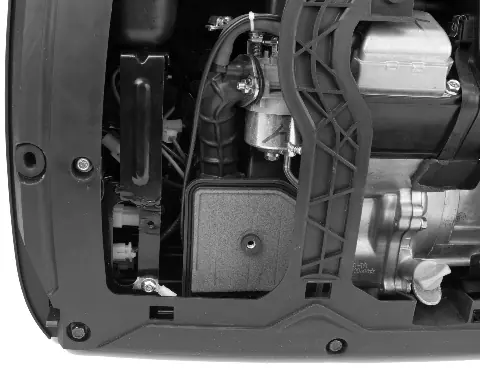

Air cleaner maintenance
Air cleaner maintenance

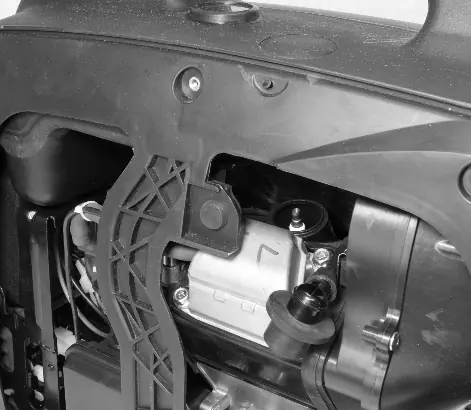

Spark plug location
Spark plug location
  • Engine Oil: Check level daily. Replace after the first 8 hours, then every 25-50 hours depending on usage.
  • Air Cleaner: Check and clean periodically. Replace if damaged.
  • Spark Plug: Inspect for wear or deposits. Gap should be 0.6-0.7 mm.
  • Fuel Tank: Drain before long-term storage (over 30 days).

Troubleshooting

If the generator fails to start, check the following:

  • Ensure the engine switch is not in the OFF position.
  • Check for contaminated or old fuel.
  • Verify oil level (low oil sensor will prevent starting).
  • Check if the air cleaner is dirty or the spark plug is fouled.
  • Ensure the generator is on a level surface.

Practical help

Common problems

Engine will not start

Check if the engine switch is in the CHOKE position, verify fuel quality, check oil level, clean/replace air cleaner, or clean/replace spark plug.

Engine stops during operation

Check fuel level, ensure the vacuum relief valve is in the ON position, or check for low oil level.

Generator overloaded

Turn off and unplug all devices, shut down the engine, wait several minutes, restart, and connect fewer devices.

Before use

  • Check oil level using the dipstick.
  • Check fuel level (use 87 octane unleaded).
  • Ensure the generator is on a level surface.
  • Ground the generator using the grounding nut.
  • Ensure all electrical devices are unplugged before starting.

Specs in practice

Rated Wattage
1600W - The continuous power the generator can supply.
Surge Wattage
2000W - The maximum power for short bursts (e.g., starting motors).
Oil Capacity
0.37 quarts (0.35 liters) of 30W 4-stroke oil.

Images and diagrams

  • The control panel diagram shows the location of the 3-in-1 switch, idle switch, and outlets.
  • The oil dipstick diagram illustrates the correct oil level check procedure.
  • The exploded views provide part numbers for maintenance and repair.

Model compatibility

  • Do not connect 50Hz loads.
  • For home backup, use a transfer switch installed by a qualified electrician.
  • Do not exceed the generator's rated wattage capacity.
