Assembly Instructions for Coaster Fine Furniture 205131F Full Bed

Step-by-step assembly guide for the Coaster Fine Furniture 205131F Full Bed. Includes parts list, hardware identification, and detailed installation steps for a 35-minute assembly.

Quick answers from the manual

Quick answer

  • The Coaster Fine Furniture 205131F Full Bed requires approximately 35 minutes to assemble. You will need a Phillips head screwdriver (not provided) in addition to the included Allen wrench. p. 2, 3

Key actions

  • Sort all hardware by size before beginning assembly. p. 2, 3
  • Assemble the headboard and footboard first. p. 4

First start

  • Check all boxes (B1, B2, B3) to ensure all parts and hardware are present. p. 2, 3

Technical specifications

Parameter Value Meaning Pages
Inner Size 54.50"W x 76.00"D Dimensions for the mattress area. p. 8

Where to find it in the PDF

  • Parts Identification p. 2
  • Hardware Identification p. 3
  • Assembly Steps p. 4, 5, 6, 7
  • Dimensions p. 8
Table of contents

Manual images

Click an image to enlarge
Steps 1-3: Headboard and Footboard assembly. Page 4 Steps 4-5: Connecting bed rails. Page 5 Steps 6-7: Center rail assembly. Page 6

Quick Guide

The Coaster Fine Furniture 205131F Full Bed is designed for home use only. The estimated assembly time is 35 minutes. Before beginning, ensure you have a Phillips head screwdriver, as it is not included in the package. Verify that all parts and hardware are present by sorting them according to the identification lists provided in the manual.

Parts Identification

The bed is shipped in three boxes (B1, B2, B3). Ensure you have all components before starting:

  • B1 (Box 1): Headboard Panel, Left Headboard Leg, Right Headboard Leg, Headboard Bottom Rail.
  • B2 (Box 2): Footboard Panel, Footboard Legs (2).
  • B3 (Box 3): Bed Rails (2), Center Rail, Center Rail Support with Leveler (2), Roll Slats (2 sets).

Hardware Identification

The hardware pack is located in box B3. Key items include:

  • Allen Wrench (M4 x 110mm)
  • Various bolts (Short, Medium, Long) with washers
  • Short and Long Flat Head Screws
  • Hex Nuts and U Brackets
  • Wrench (2 x 24.5 x 85)

Assembly Instructions

Follow these steps in the numbered sequence to ensure proper assembly:

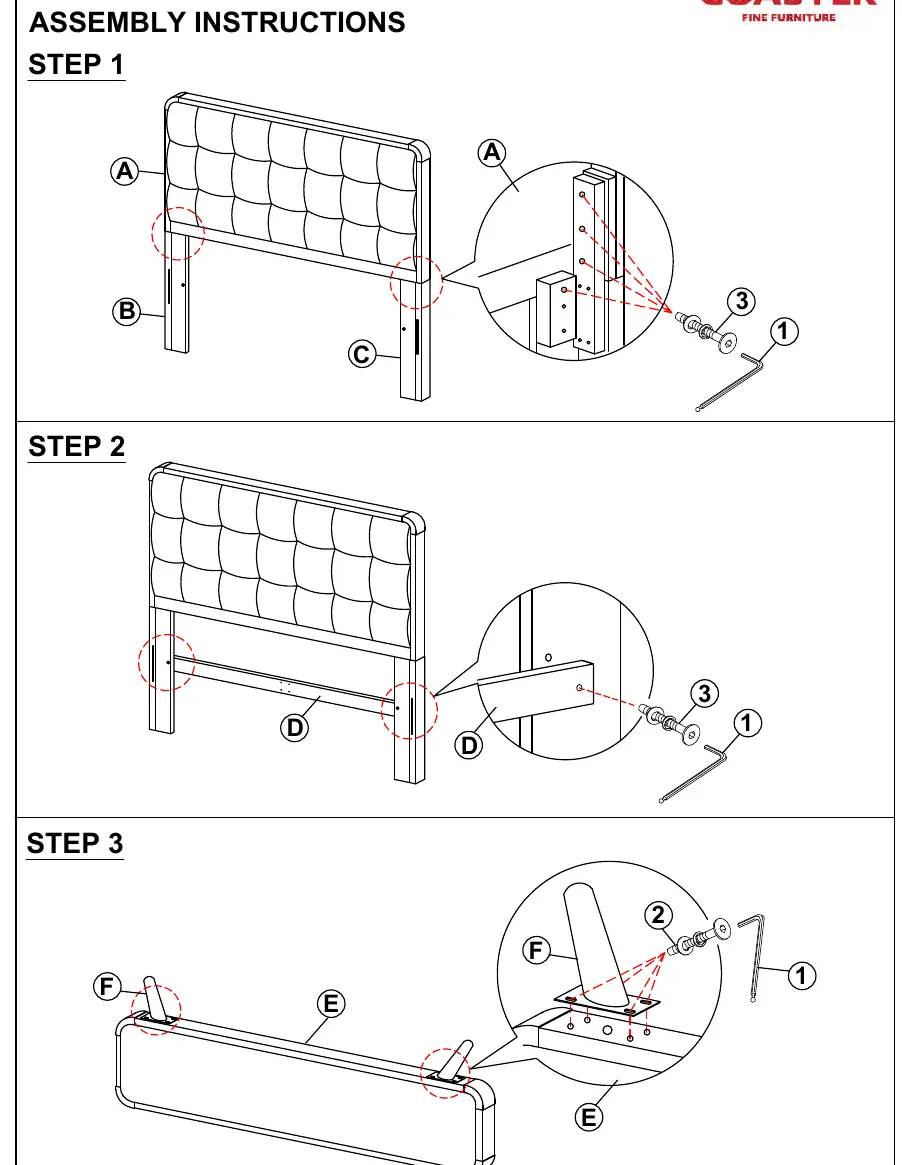

Steps 1-3: Headboard and Footboard assembly.
Steps 1-3: Headboard and Footboard assembly.

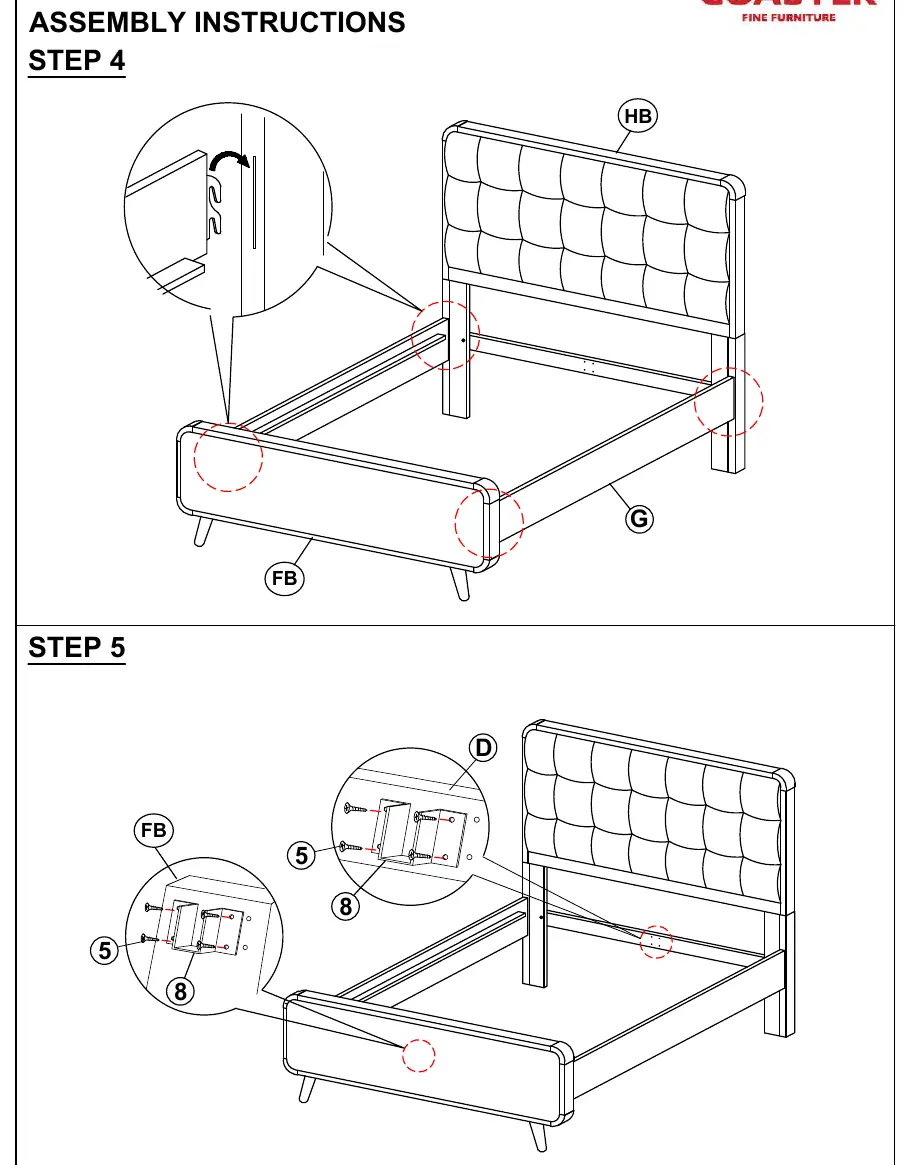

Steps 4-5: Connecting bed rails.
Steps 4-5: Connecting bed rails.

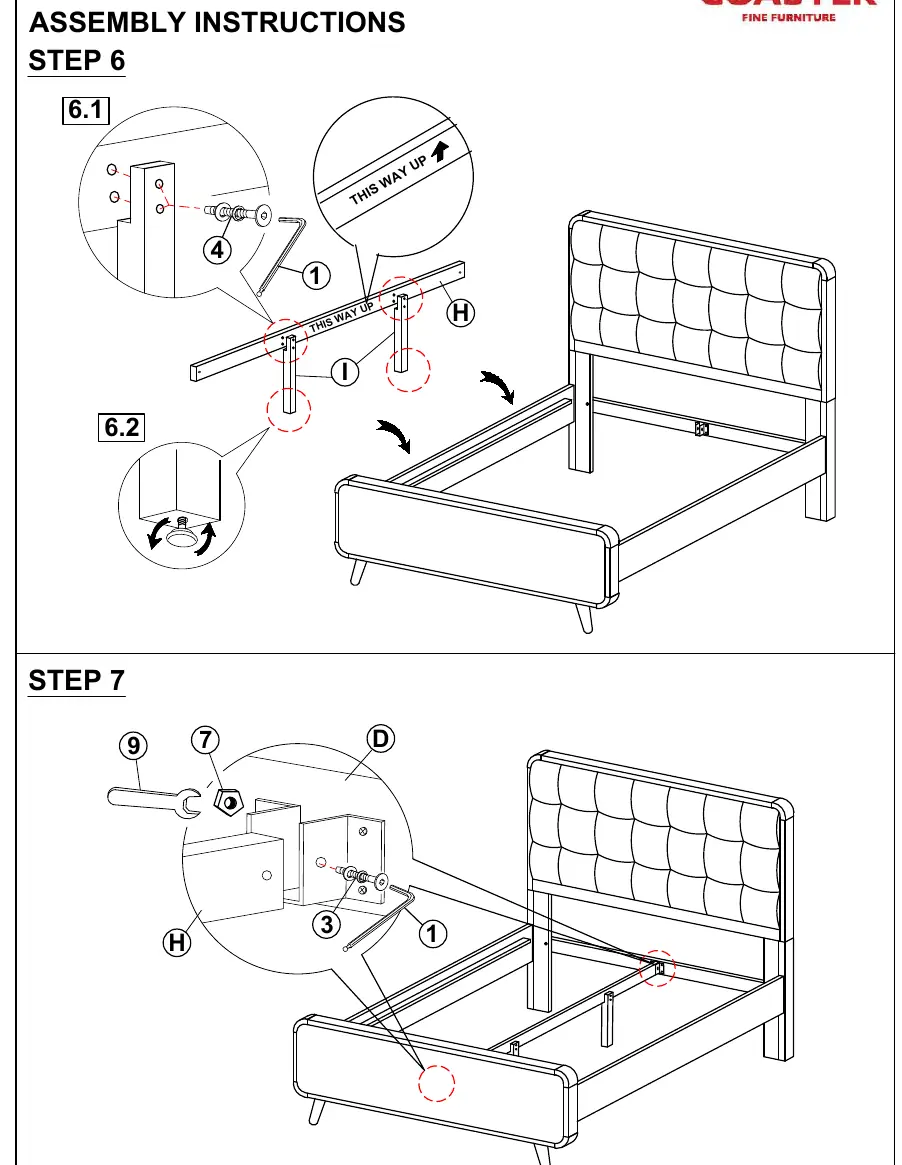

Steps 6-7: Center rail assembly.
Steps 6-7: Center rail assembly.
  1. Step 1: Attach the Left and Right Headboard Legs to the Headboard Panel using the provided bolts and Allen wrench.
  2. Step 2: Attach the Headboard Bottom Rail to the Headboard Legs.
  3. Step 3: Attach the Footboard Legs to the Footboard Panel.
  4. Step 4: Connect the Bed Rails to the Headboard and Footboard assemblies.
  5. Step 5: Secure the U Brackets to the Headboard and Footboard using the provided screws.
  6. Step 6: Assemble the Center Rail and Center Rail Support. Ensure the "THIS WAY UP" label is oriented correctly.
  7. Step 7: Attach the Center Rail assembly to the Headboard and Footboard using bolts and hex nuts.
  8. Step 8: Place the Roll Slats across the bed frame and secure them with the provided screws.
  9. Step 9: Verify all connections are tight and the bed is stable.

Dimensions

The inner size of the bed frame is 54.50 inches wide by 76.00 inches deep. Note that there is a dimension tolerance of ±5%.

Manufacturer information

Coaster Fine Furniture

Brand profile
Manufacturer website https://www.coasterfurniture.com Support https://www.coasterfurniture.com/support

Practical help

Common problems

Missing hardware or parts

Check all boxes (B1, B2, B3) and sort by size before starting. Contact the store if parts are defective or missing.

Assembly takes too long

Estimated assembly time is 35 minutes. Ensure you have a Phillips head screwdriver ready, as it is not provided.

Before use

  • Verify all parts are present according to the Parts Identification list.
  • Sort all hardware by size.
  • Ensure you have a Phillips head screwdriver (not included).
  • Clear enough space for assembly.
  • Check that the center rail support is oriented correctly with the 'THIS WAY UP' label.

Specs in practice

Assembly Time
Approximately 35 minutes for two people.

Images and diagrams

  • Steps 1-3 cover the assembly of the headboard and footboard.
  • Steps 4-5 involve connecting the bed rails to the headboard and footboard.
  • Steps 6-7 detail the installation of the center rail support.
  • Step 8 covers the placement of the roll slats.

Model compatibility

  • For home use only.
  • Not intended for commercial establishments.
