Assembly Instructions for Coaster Fine Furniture 193952NAT Side Chair
Quick assembly guide for the Coaster Fine Furniture 193952NAT Side Chair. Includes parts list, hardware identification, and step-by-step assembly instructions to complete the setup in approximately 20 minutes.
Quick answers from the manual
Quick answer
- The Coaster Fine Furniture 193952NAT Side Chair takes approximately 20 minutes to assemble. You will need a Phillips head screwdriver, which is not included. p. 2, 3
Key actions
- Assemble the leg frames and rails p. 4
- Attach the backrest and cushions p. 5, 6, 7
First start
- Sort hardware and verify all parts are present before starting assembly. p. 2, 3
Problems and fixes
Broken or defective parts
Do not attempt to repair or modify. Contact the store immediately.
p. 2Where to find it in the PDF
- Assembly Instructions p. 1, 8
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This document provides assembly instructions for the Coaster Fine Furniture 193952NAT Side Chair. The estimated assembly time is 20 minutes. Please ensure you have a Phillips head screwdriver available, as it is required but not provided.
Assembly tips
- Remove all hardware from the box and sort by size before starting.
- Verify that all parts and hardware are present.
- Follow the assembly steps in the numbered sequence provided.
- Warning: This product is for home use only and is not intended for commercial establishments. Do not attempt to repair or modify parts that are broken or defective; contact the store immediately.
Parts identification
Ensure you have the following parts before beginning:
- Right leg frame (A)
- Left leg frame (B)
- Front rail (long) (C)
- Back rail (short) (D)
- Front lower rail (long) (E)
- Backrest (F)
- Back cushion (small) (G)
- Seat cushion (big) (H)
Hardware identification
The following hardware is included:
- Allen wrench (M4 x 100mm)
- Bolts (M6 x 40mm)
- Lock washers (1/4")
- Long pan head screws (#8 x 1 1/2")
- Medium pan head screws (#8 x 1 1/4")
- Short pan head screws (#8 x 1")
- Cam bolts
- Wood dowel (M8 x 30mm)
Assembly steps
Follow the steps in order to assemble the chair:

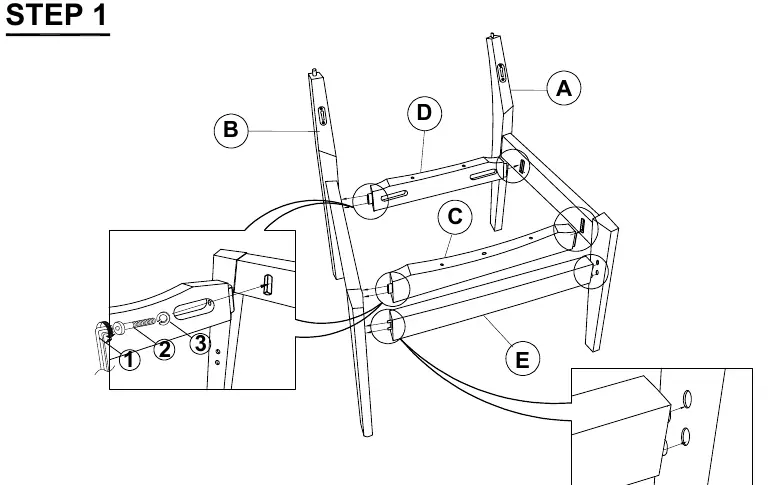

- Step 1-2: Connect the leg frames (A, B) with the rails (C, D, E) using the provided bolts and lock washers.

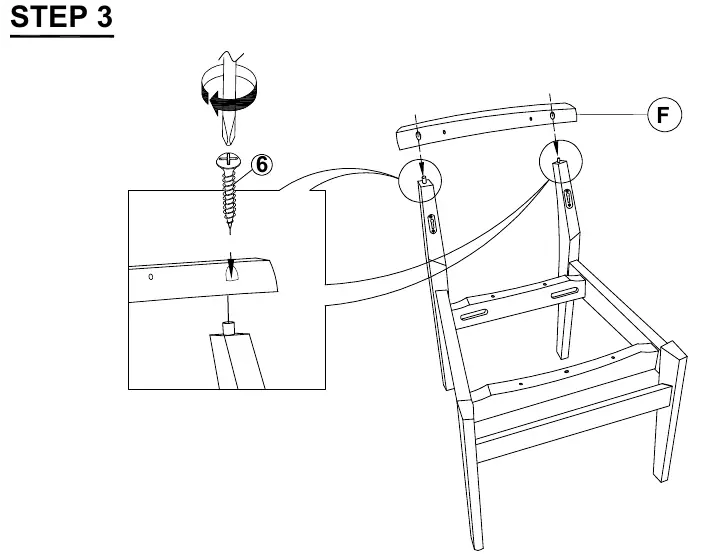

- Step 3: Attach the backrest (F) to the frame assembly.
- Step 4: Insert the wood dowel (8) into the designated spot.

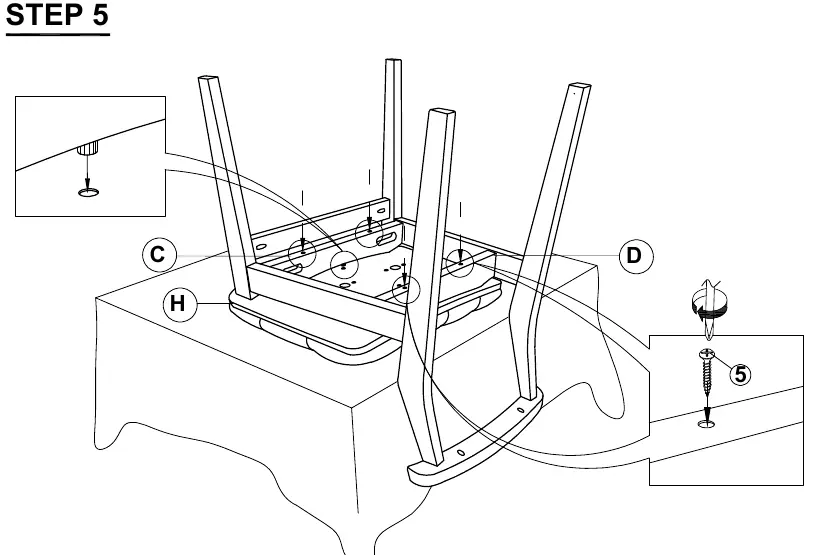

- Step 5-6: Attach the seat cushion (H) to the frame using the medium pan head screws (5). Attach the back cushion (G) using the short pan head screws (7).

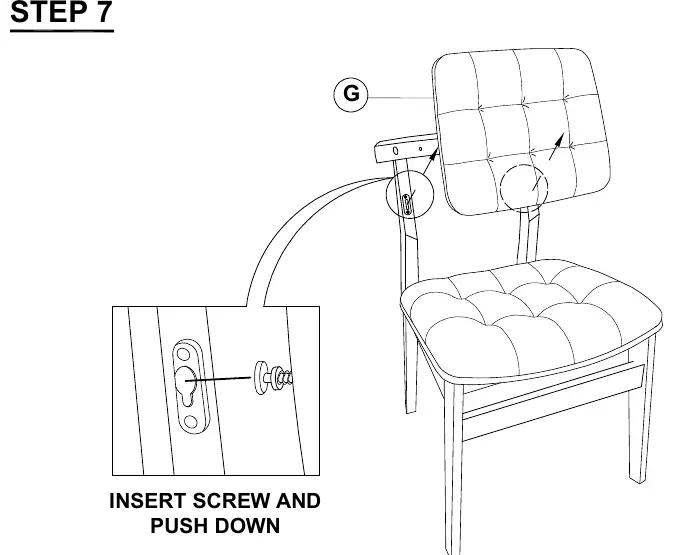

- Step 7-8: Secure the back cushion (G) by inserting the screw and pushing down.
- Step 9: Complete the assembly.
Manufacturer information
Coaster Fine Furniture
Practical help
Common problems
Broken or defective parts
Do not attempt to repair or modify the parts. Contact the store immediately.
Before use
- Sort all hardware by size.
- Verify all parts listed in the Parts Identification section are present.
- Ensure you have a Phillips head screwdriver (not provided).
Images and diagrams
- Steps 1-9 illustrate the sequential connection of the leg frames, rails, and cushions.
- The diagrams highlight specific screw locations and orientation for each component.
Model compatibility
- Product is for home use only.
- Not intended for commercial establishments.
