Assembly Instructions for Coaster Fine Furniture 215971KE Eastern King Bed
Quick assembly guide for the Coaster Fine Furniture 215971KE Eastern King Bed. Includes parts list, hardware identification, step-by-step assembly instructions, and dimensions.
Quick answers from the manual
Quick answer
- This document provides assembly instructions for the Coaster Fine Furniture 215971KE Eastern King Bed. It includes a parts list, hardware identification, and a 4-step assembly process. p. 1, 2, 3, 4
Key actions
- Assemble on a soft surface to prevent damage. p. 4
- Use a Phillips head screwdriver to fasten slats. p. 3, 5
First start
- Sort all hardware and parts before beginning assembly. p. 2, 3
Problems and fixes
Side rail warpage
This is a temporary condition that will resolve once the bed is fully assembled.
p. 5Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Inner Size | 77.00"W x 81.00"D | Mattress area dimensions | p. 6 |
Where to find it in the PDF
- Title Page p. 1
- Parts Identification p. 2
- Hardware Identification p. 3
- Assembly Steps p. 4, 5
- Dimensions p. 6
Table of contents
Manual images
Click an image to enlargeQuick Guide
This guide provides instructions for assembling the Coaster Fine Furniture 215971KE Eastern King Bed. Before starting, ensure you have a Phillips head screwdriver, as it is required but not provided. Assemble the bed on a soft surface to prevent damage to the finish. Note that the side rails may appear warped initially; this is a temporary condition that will resolve once the bed is fully assembled.
Parts Identification
Before beginning, verify that all parts are present:
- A: Headboard Panel (1PC)
- B: Footboard (1PC)
- C: Left Headboard Leg (1PC)
- D: Right Headboard Leg (1PC)
- E: Bed Slat (4PCS)
- F: Bed Slat Support with Leveler (8PCS)
- G: Bed Rail (2PCS)

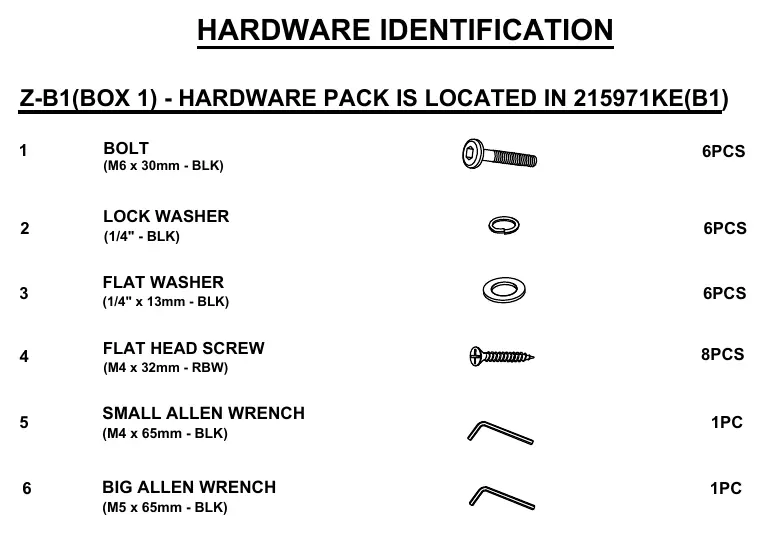

Hardware Identification
The hardware pack is located in box 215971KE(B1):
- 1: Bolt (M6 x 30mm) - 6PCS
- 2: Lock Washer (1/4") - 6PCS
- 3: Flat Washer (1/4" x 13mm) - 6PCS
- 4: Flat Head Screw (M4 x 32mm) - 8PCS
- 5: Small Allen Wrench (M4 x 65mm) - 1PC
- 6: Big Allen Wrench (M5 x 65mm) - 1PC
Assembly Instructions

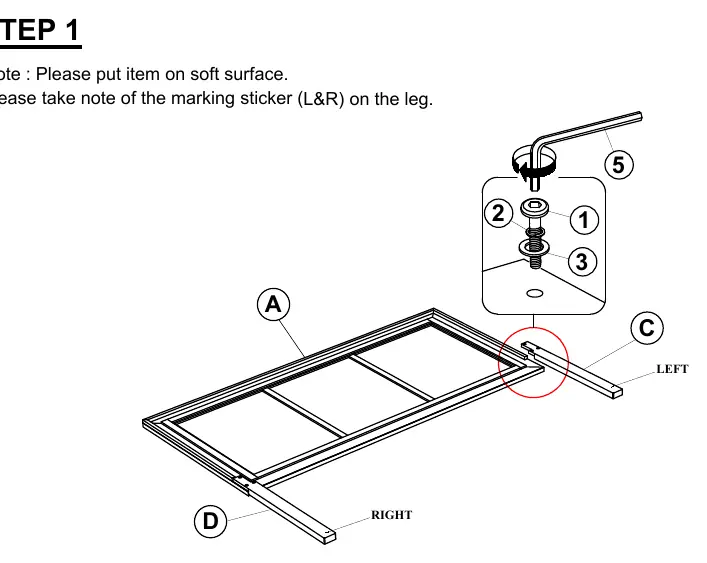

Step 1: Attach Legs to Headboard
Place the headboard panel (A) on a soft surface. Attach the left (C) and right (D) headboard legs to the headboard panel using bolts (1), lock washers (2), and flat washers (3). Use the small Allen wrench (5) to tighten. Note the L&R marking stickers on the legs.

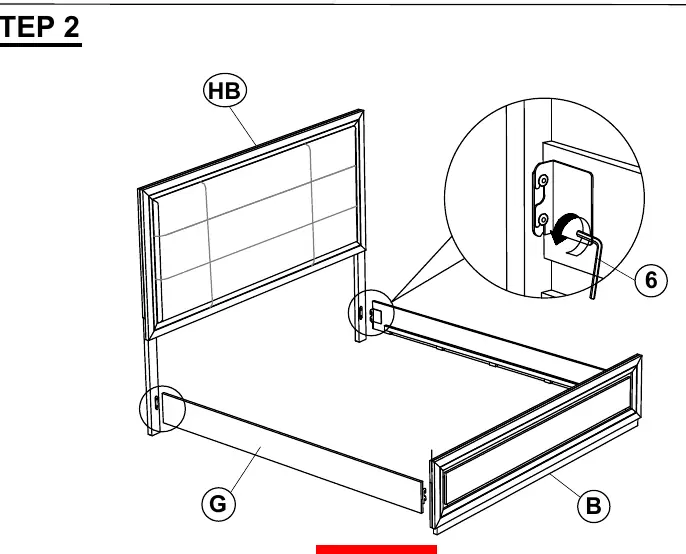

Step 2: Attach Rails
Attach the bed rails (G) to the headboard (HB) and footboard (B) using the provided hardware and the big Allen wrench (6).

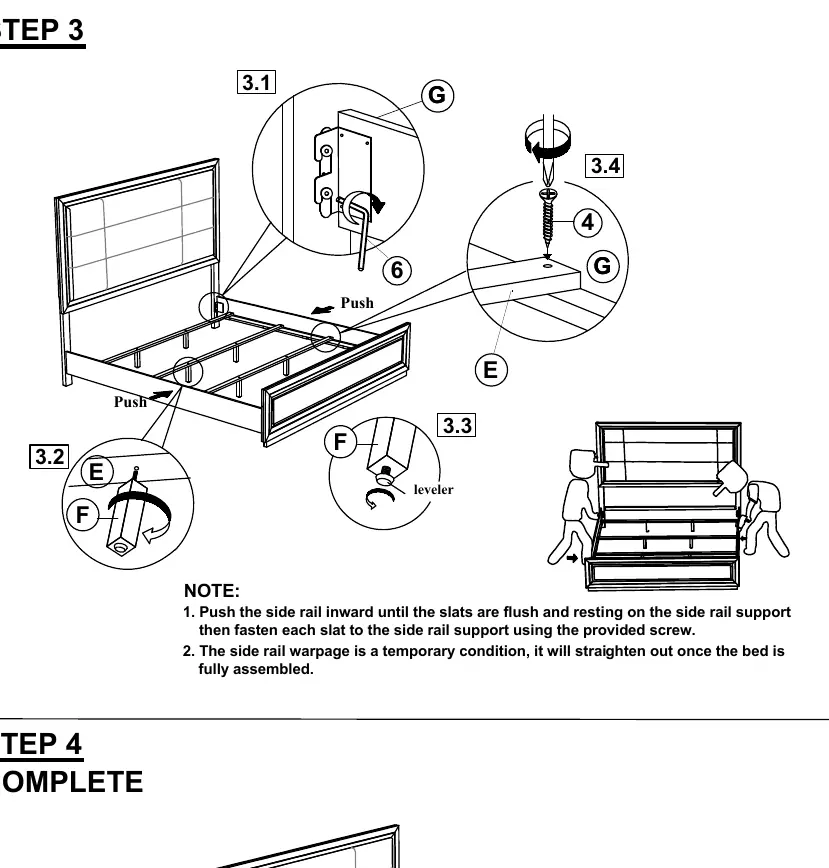

Step 3: Install Slats
Push the side rails inward until the slats (E) are flush and resting on the side rail support. Fasten each slat to the side rail support using the provided flat head screws (4) and a Phillips head screwdriver. Adjust the levelers on the slat supports (F) as needed.

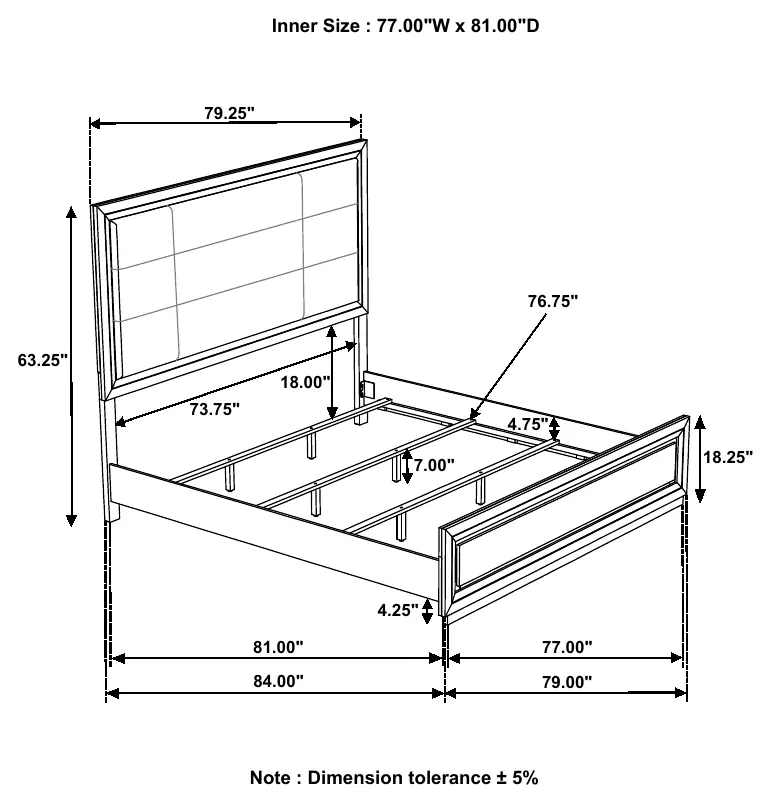

Dimensions
The inner mattress area dimensions are 77.00 inches wide by 81.00 inches deep. Please allow for a dimension tolerance of ± 5%.
Manufacturer information
Coaster Fine Furniture
Practical help
Common problems
Side rail warpage
This is a temporary condition; it will straighten out once the bed is fully assembled.
Before use
- Sort hardware by size
- Check all parts are present
- Prepare a soft surface for assembly
- Have a Phillips head screwdriver ready (not provided)
Images and diagrams
- Step 1: Attach legs to headboard
- Step 2: Attach rails to headboard and footboard
- Step 3: Install slats and supports
Model compatibility
- Designed for home use only
- Not intended for commercial establishments
