User Manual for Commercial Electric 16-Inch Turbo Fan SFD5-400B
Quick guide for the Commercial Electric 16-Inch Turbo Fan (SFD5-400B). Includes assembly instructions, wall mounting steps, operation settings, and maintenance tips.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This 16-inch high-velocity turbo fan is designed for indoor use. Before operating, ensure the fan is placed on a stable surface or securely mounted to a wooden wall. The fan features three speed settings and an adjustable tilt angle. If the fan stops unexpectedly, it may be due to the thermal protector; allow the motor to cool down before restarting.
Safety Information
- Unplug the fan before moving it or performing maintenance.
- Do not touch the fan with wet hands.
- Do not use the fan outdoors or with an extension cord.
- Do not insert objects into the guard or movable parts.
- Do not use with any solid-state speed control device.
- If the supply cord is damaged, it must be replaced by the manufacturer or a qualified service agent.
- Do not immerse the fan in water.

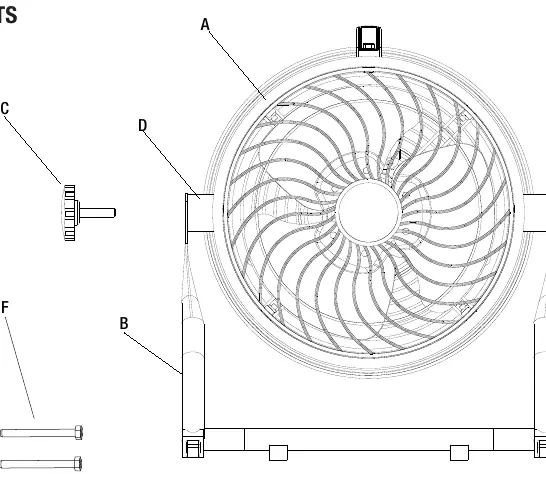

Package Contents
Ensure all parts are present before assembly:
- A: Fan head
- B: Stand
- C: Locking knob (x2)
- D: Rubber pad (x2)
- E: Washer for wall-mounted (x2)
- F: Screw for wall-mounted (x2)
Assembly

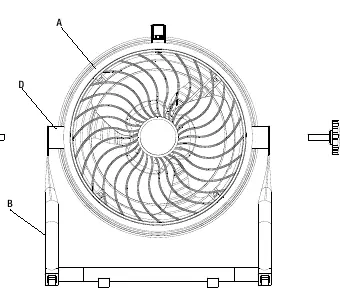

Assembling the fan
- Position a rubber pad (D) between the fan head (A) and one side of the stand (B), aligning with the pre-drilled holes.
- Secure the stand (B) to the fan head (A) by inserting a locking knob (C) through the stand, rubber pad, and into the fan head. Repeat for the other side.
Mounting the fan to a wall
- Mark hole locations and drill pilot holes.
- Mount the stand (B) to the wall using the provided washers (E) and screws (F).
- Warning: Mount on a wooden wall only. Ensure the location can support the fan weight.
Operation

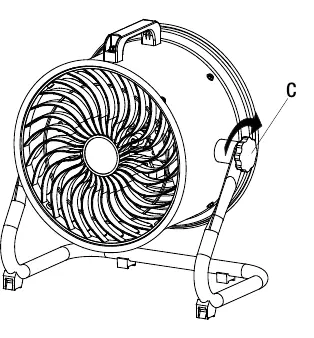

Adjusting the fan tilt angle
Loosen the locking knobs (C) on both sides by turning counterclockwise, tilt the fan head (A) to the desired angle, and tighten the knobs clockwise to secure.
Turning the fan On/Off and adjusting airflow
Plug the power cord into an outlet. Turn the switch to the desired speed setting:
- 0: Off
- I: Low
- II: Medium
- III: High
Maintenance and Cleaning
Thermal Protector: If the fan stops working due to overheating, wait several minutes for the motor to cool down, then restart.
Cleaning: Unplug the fan before cleaning. Do not immerse in water. Wipe surfaces with a slightly moistened cloth. To remove dust from the grill, use a vacuum cleaner or remove the front grill by releasing the securing clip.
Manufacturer information
Commercial Electric
Practical help
Common problems
Fan stops working during operation
The thermal protector may have tripped due to overheating. Wait several minutes for the motor to cool down, then restart the fan.
Dust buildup on the grill
Use a vacuum cleaner to remove dust, or remove the front grill by releasing the securing clip on the edge of the grill.
Before use
- Ensure the fan is unplugged before assembly or maintenance.
- Check that the power cord and plug are free from damage.
- Verify that the front and rear guard screws are completely tightened.
- If wall mounting, ensure the surface is wood and can support the fan's weight.
- Confirm the switch is in the '0' (off) position before plugging in.
Images and diagrams
- Locking knobs (C) are located on the sides of the fan head to secure the tilt angle.
- The switch on the back controls the three speed settings.
Model compatibility
- Wall mounting is recommended for wooden walls only.
- Do not use with any solid-state speed control device.
- Do not use with an extension cord.
