Product Specification for Corning ALTOS Lite 048TUC-T4190D20 Fiber Optic Cable
Technical specifications and installation guidelines for the Corning ALTOS Lite 048TUC-T4190D20 armored fiber optic cable. Includes mechanical, optical, and environmental data for direct-buried and aerial installations.
Table of contents
Manual images
Click an image to enlargeKey Information and Product Overview
The Corning ALTOS Lite 048TUC-T4190D20 is a gel-free, single-jacket, single-armored fiber optic cable designed for campus backbones. It is suitable for various environments, including aerial, duct, and direct-buried installations. The cable features a loose tube design that provides stable transmission parameters for voice, data, video, and imaging applications.
Key Features:
- Gel-free waterblocking technology: Simplifies cable preparation and requires no cleaning.
- Corrugated steel tape armor: Provides rodent resistance for direct-buried applications.
- Polyethylene jacket: Rugged and durable, offering protection against UV radiation, fungus, and abrasion.
- SZ-stranded loose tube design: Isolates fibers from installation and environmental rigors.

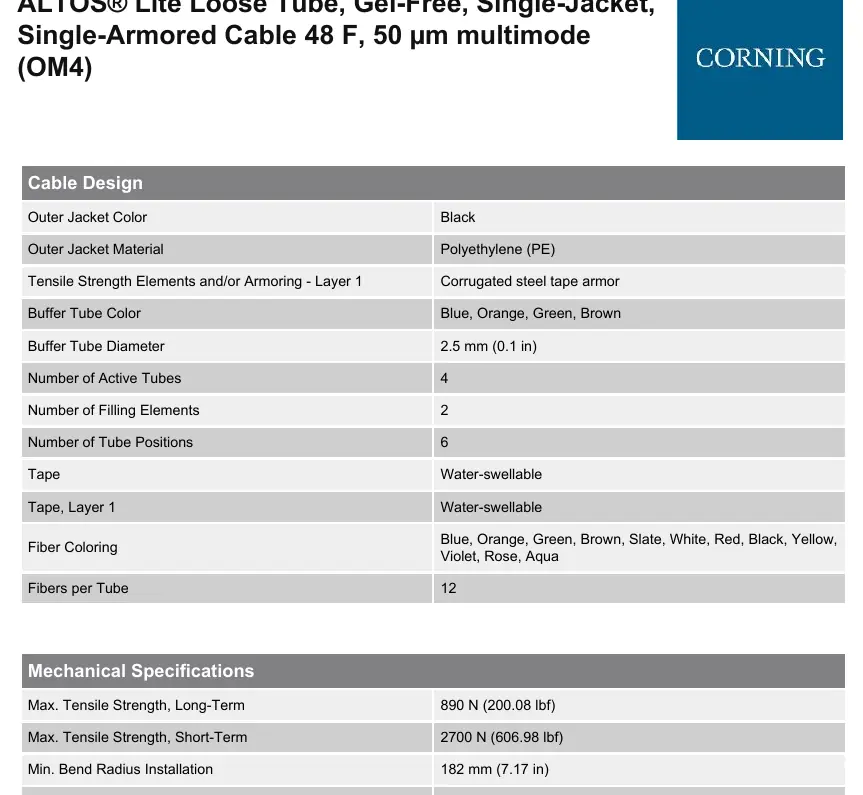

Cable Construction and Design
The cable is constructed with a dielectric central element and 48 fibers organized into buffer tubes. The design includes water-swellable tape and corrugated steel armor for protection.
- Outer Jacket: Black Polyethylene (PE).
- Buffer Tube Color Coding: Blue, Orange, Green, Brown.
- Fiber Coloring: Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, Aqua.
- Number of Ripcords: 2.
- Nominal Outer Diameter: 12.1 mm (0.48 in).
Environmental and Installation Conditions
Proper handling and environmental control are essential for maintaining cable integrity during installation.
- Installation Temperature Range: -30 °C to -30 °C (-22 °F to -22 °F).
- Operation Temperature Range: -40 °C to 70 °C (-40 °F to 158 °F).
- Storage Temperature Range: -40 °C to -40 °C (-40 °F to -40 °F).
- Recommendation: Store the cable in a proper temperature environment prior to installation to ensure it meets the installation temperature range specifications.
- Indoor Installation: Permitted when installed according to National Electrical Code (NEC) Article 770.
Mechanical and Optical Specifications
The cable is designed to withstand specific mechanical stresses and meet high-performance optical standards.
- Max. Tensile Strength (Long-Term): 890 N (200.08 lbf).
- Max. Tensile Strength (Short-Term): 2700 N (606.98 lbf).
- Min. Bend Radius (Installation): 182 mm (7.17 in).
- Min. Bend Radius (Operation): 121 mm (4.76 in).
- Fiber Category: 50 µm Multimode (OM4).
- Wavelengths: 850 nm / 1300 nm.
- Maximum Attenuation: 3.0 dB/km / 1.0 dB/km.
Manufacturer information
Corning Optical Communications
Practical help
Common problems
Exceeding minimum bend radius during installation
Ensure the cable is not bent tighter than 182 mm during the installation process to prevent fiber damage.
Improper storage temperature
Store the cable in a temperature-controlled environment before installation to ensure it meets the required installation temperature range of -30 °C.
Before use
- Verify the part number is 048TUC-T4190D20.
- Ensure the installation environment temperature is -30 °C.
- Confirm the conduit or aerial path can accommodate the 12.1 mm outer diameter.
- Check that the installation method complies with NEC Article 770 if installing indoors.
Specs in practice
- Corrugated steel tape armor
- Provides mechanical protection against crushing and rodent damage.
Images and diagrams
- The cross-section diagram illustrates the internal structure, including the central dielectric element, buffer tubes, water-swellable tape, corrugated steel armor, and the outer polyethylene jacket.
Model compatibility
- Suitable for aerial, duct, and direct-buried outdoor applications.
- Indoor use is restricted to installations compliant with NEC Article 770.
