Assembly Instructions for Crystorama 2265-PN Lighting Fixture
A complete assembly and installation guide for the Crystorama 2265-PN lighting fixture. Includes step-by-step mounting instructions, a detailed parts list, bulb requirements, and essential safety warnings.
Quick answers from the manual
Quick answer
- The Crystorama 2265-PN is a ceiling-mounted lighting fixture. Assembly requires connecting the chain, wiring the fixture to the outlet box, installing three medium-base bulbs, and securing the glass diffuser with the provided hardware. p. 1
Key actions
- Turn off power before starting installation. p. 1
- Adjust chain length to desired hanging height. p. 1
First start
- Install 3 Medium Base bulbs (not included) into the sockets before attaching the glass diffuser. p. 1
Show 2 more answers Show less
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Bulb Type | 3x Medium Base | Standard E26 base bulbs | p. 1 |
| Max Wattage | 100W per bulb | Maximum power rating per socket | p. 1 |
Where to find it in the PDF
- Assembly Instructions p. 1
- Parts List p. 2
Table of contents
Manual images
Click an image to enlargeImportant Safety Information
Before beginning installation, ensure the power is turned off at the circuit breaker. All electrical components must be installed by a licensed electrician in accordance with the National Electric Code and appropriate local electrical codes. This fixture is Dry rated and should not be installed in damp or wet locations.
Bulb Requirements
This fixture requires 3 Medium Base bulbs. It is recommended to use 60 Watts per bulb, with a maximum capacity of 100 Watts per bulb. The use of LED bulbs is recommended for extended use.

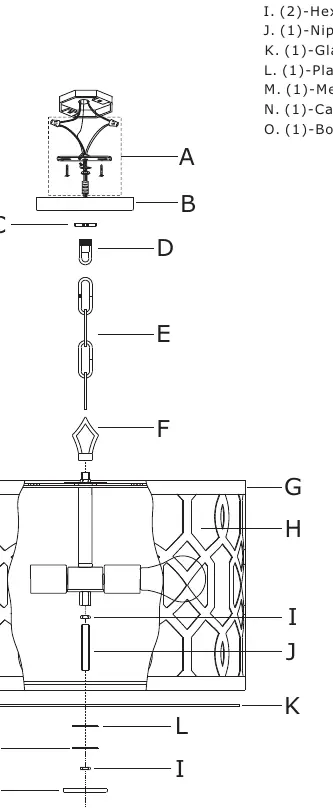

Parts List
The fixture includes the following components:
- Mounting hardware
- Canopy (W6" x H3/4")
- Collar ring and Collar loop
- Chain (72", 4mm thick)
- Loop
- Metal frame
- Fabric shade (W17-1/2" x H11-1/4")
- Glass diffuser
- Nipple, Hex nuts, Plastic washer, Metal washer, Cap, and Bottom finial
Installation Steps
- Prepare the frame: Slip the loop along the wire and thread it onto the nipple located on the top of the metal frame.
- Adjust height: Determine the preferred hanging height and adjust the chain to the required length.
- Wiring: Connect the fixture wires to the supply wires in the outlet box.
- Mounting: Install the fixture onto the outlet box.
- Bulbs: Install 3 Medium Base bulbs (not included) into the sockets.
- Glass assembly: Thread the nipple onto the coupling and adjust the length to fit the glass. Tighten with a hex nut.
- Diffuser installation: Slide the glass diffuser, plastic washer, and metal washer over the nipple, then secure with the hex nut.
- Final assembly: Slide the cap over the nipple and secure it with the bottom finial.
Manufacturer information
Crystorama
Practical help
Common problems
Fixture not hanging at the desired height
Adjust the chain length before connecting the fixture wires to the outlet box.
Glass diffuser does not fit properly
Ensure the nipple is threaded correctly onto the coupling and adjusted to the proper length to accommodate the glass thickness.
Before use
- Turn off power at the circuit breaker
- Verify all parts (A-O) are present
- Ensure you have 3 Medium Base bulbs
- Hire a licensed electrician for installation
Show more Show less
Specs in practice
- 60W Recommended
- Optimal wattage for brightness and heat management; do not exceed 100W per bulb.
Images and diagrams

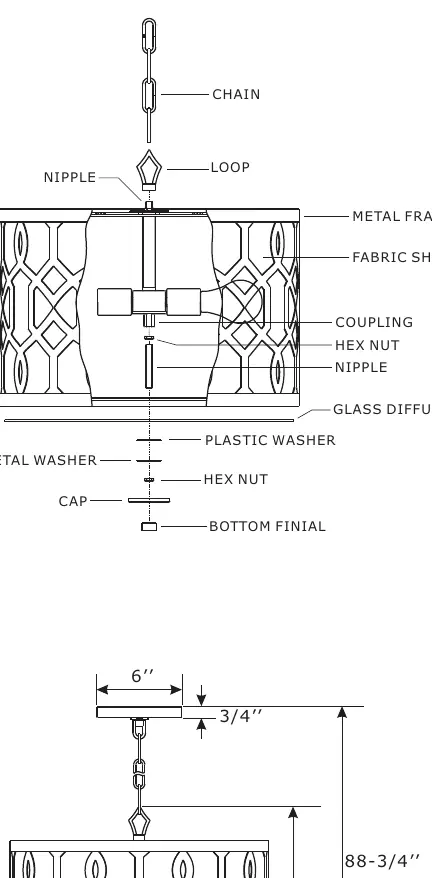

- The assembly diagram illustrates the order of components from the ceiling canopy down to the bottom finial.
- The parts list (A-O) identifies every component required for assembly.
Model compatibility
- Requires 3 Medium Base bulbs.
- Fixture is Dry rated only.
