Assembly Instructions for Crystorama 2266-AG Jennings Five Light Chandelier
Quick assembly guide for the Crystorama 2266-AG Jennings Five Light Chandelier. Includes installation steps, parts list, bulb requirements, and safety warnings.
Quick answers from the manual
Quick answer
- The Crystorama 2266-AG is a five-light chandelier. It requires 5 Medium Base bulbs (60W recommended, 100W max) and must be installed by a licensed electrician. p. 1
Key actions
- Install the fixture p. 1
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Bulb Base | Medium Base | Standard bulb socket type | p. 1 |
| Max Wattage | 100W | Maximum wattage per bulb | p. 1 |
| Rating | Dry rated | Indoor use only | p. 1 |
Show 1 more answers Show less
Where to find it in the PDF
- Assembly Instructions p. 1
- Parts List p. 2
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Crystorama 2266-AG is a five-light chandelier designed for indoor use. It must be installed by a licensed electrician in accordance with the National Electric Code and local electrical codes. The fixture is dry-rated.
Important Safety Information
- Electrical Danger: Always turn off power at the circuit breaker before beginning installation.
- Lead Warning: This product contains lead, which is known to the state of California to cause cancer and/or birth defects or reproductive harm.
- Installation: Must be performed by a licensed electrician.
Bulb Requirements
- Quantity: 5 bulbs
- Base Type: Medium Base
- Wattage: 60 Watts recommended, 100 Watts maximum per bulb.
- Recommendation: Use LED bulbs for extended use.
How to install
- Slip the loop along the wire and thread it onto the nipple located on the top of the metal frame.
- Determine the preferred hanging height and adjust the chain to the required length.
- Connect the fixture wires to the supply wires in the outlet box.
- Install the fixture onto the outlet box.
- Install the bulbs (not included) into the sockets.
- Thread the nipple onto the coupling and adjust the length of the nipple to fit with the glass. Tighten it with the hex nut.
- Slide the glass diffuser, the plastic washer, and the metal washer over the nipple, then secure with the hex nut.
- Slide the cap over the nipple, then secure with the bottom finial.
Parts List
The following parts are included with the fixture:
- Mounting hardware
- Canopy (W6" x H3/4")
- Collar ring and Collar loop
- Chain (72", 4mm thick)
- Loop
- Metal frame
- Fabric shade (W23-1/2" x H14-1/8")
- Hex nuts (2)
- Nipple
- Glass diffuser
- Plastic washer
- Metal washer
- Cap
- Bottom finial
Manufacturer information
Crystorama
Practical help
Common problems
Fixture not hanging at the desired height
Determine the preferred hanging height and adjust the chain length before connecting the fixture wires to the supply wires.
Glass diffuser does not fit correctly
Thread the nipple onto the coupling and adjust the length of the nipple to ensure it fits properly with the glass before securing it with the hex nut.
Before use
- Ensure power is turned off at the circuit breaker.
- Verify you have 5 Medium Base bulbs (not included).
- Ensure the installation location is dry-rated.
- Check that all parts (A-O) are present according to the parts list.
- Ensure a licensed electrician is available for installation.
Show more Show less
Images and diagrams

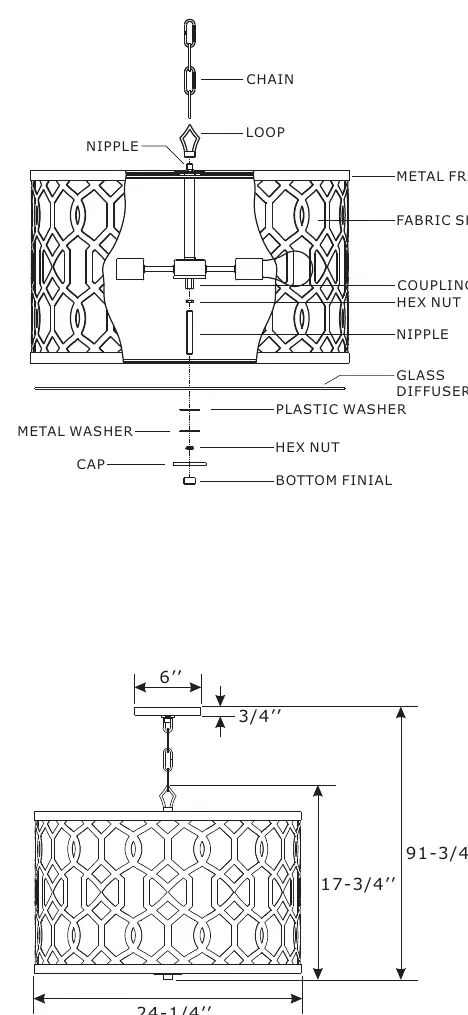

- The assembly diagram on page 1 illustrates the sequence of parts from the ceiling canopy down to the bottom finial.

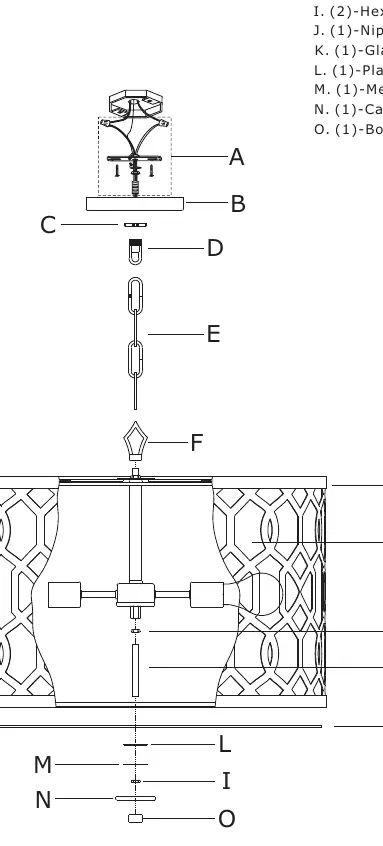

- The exploded view on page 2 provides a clear identification of all hardware components (A-O) for assembly.
