Assembly Instructions for Crystorama 2266-PN Chandelier
A comprehensive assembly and installation guide for the Crystorama 2266-PN Jennings Five Light Chandelier. Includes step-by-step installation instructions, a detailed parts list, bulb requirements, and essential safety warnings.
Quick answers from the manual
Quick answer
- This document provides assembly and installation instructions for the Crystorama 2266-PN chandelier, including a parts list and safety warnings. p. 1, 2
Key actions
- Install the fixture p. 1
First start
- Ensure power is off, install bulbs, and mount to the outlet box. p. 1
Show 2 more answers Show less
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Bulb Type | 5x Medium Base | Standard socket | p. 1 |
| Max Wattage | 100W per bulb | Maximum power rating | p. 1 |
Where to find it in the PDF
- Assembly Instructions p. 1
- Parts List p. 2
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
This document provides instructions for the assembly and installation of the Crystorama 2266-PN chandelier. Please read all safety warnings before beginning. Installation must be performed by a licensed electrician in accordance with the National Electric Code and local electrical codes.
- Safety: Turn off power at the circuit breaker before starting. This fixture is dry-rated and should not be used in damp or wet locations.
- Bulb Requirements: Requires 5 Medium Base bulbs. Recommended wattage is 60W, with a maximum of 100W per bulb. LED bulbs are recommended for extended use.

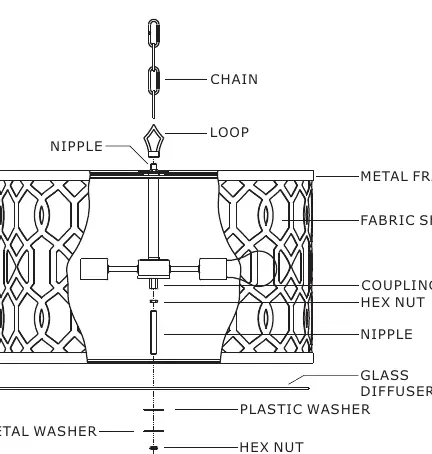

Installation Steps
- Slip the loop along the wire and thread it onto the nipple located on the top of the metal frame.
- Determine the preferred hanging height and adjust the chain to the required length.
- Connect the fixture wires to the supply wires in the outlet box.
- Install the fixture onto the outlet box.
- Install the bulbs (not included) into the sockets.
- Thread the nipple onto the coupling and adjust the length of the nipple to fit with the glass. Tighten it with the hex nut.
- Slide the glass diffuser, the plastic washer, and the metal washer over the nipple, then secure with the hex nut.
- Slide the cap over the nipple, then secure with the bottom finial.
Parts List
The following parts are included with the fixture:
- A: Mounting hardware
- B: Canopy (W6" x H3/4")
- C: Collar ring
- D: Collar loop
- E: Chain (72", 4mm thick)
- F: Loop
- G: Metal frame
- H: Fabric shade (W23-1/2" x H14-1/8")
- I: Hex nut (2)
- J: Nipple
- K: Glass diffuser
- L: Plastic washer
- M: Metal washer
- N: Cap
- O: Bottom finial
Technical Specifications
- Fixture Dimensions: 24-1/4" width, 17-3/4" height (fixture body).
- Total Height: 91-3/4".
- Bulb Base: Medium Base.
- Max Wattage: 100W per bulb.
- Rating: Dry rated.
Manufacturer information
Crystorama
Practical help
Common problems
Fixture not hanging at the desired height
Adjust the length of the chain (Part E) before connecting the fixture wires to the outlet box.
Glass diffuser does not fit properly
Adjust the length of the nipple (Part J) threaded onto the coupling until it fits correctly with the glass diffuser.
Before use
- Turn off power at the circuit breaker
- Ensure you have 5 Medium Base bulbs
- Verify all parts (A-O) are present
- Hire a licensed electrician for installation
Show more Show less
Images and diagrams

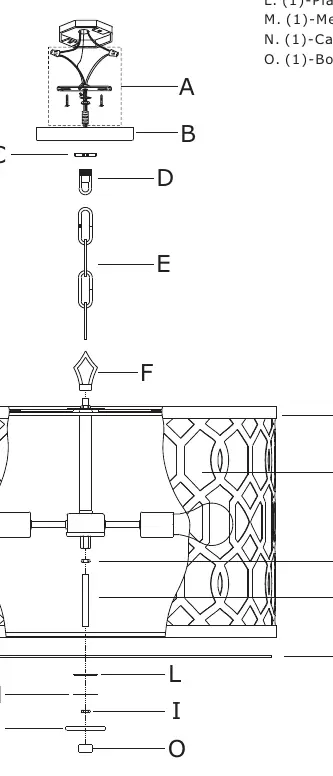

- The parts diagram shows the assembly order from the ceiling canopy down to the bottom finial.
- The dimensions diagram provides the total height and width of the fixture.
Model compatibility
- Requires 5 Medium Base bulbs.
- Not suitable for damp or wet locations.
