Assembly Instructions for Crystorama 2264-AG-LED Bathroom Vanity Light
Quick guide for installing the Crystorama 2264-AG-LED bathroom vanity light. Includes mounting instructions, safety warnings, dimensions, and parts list.
Quick answers from the manual
Quick answer
- The Crystorama 2264-AG-LED is a damp-rated bathroom vanity light that can be mounted vertically or horizontally. Installation requires a licensed electrician and involves securing a mounting plate, backplate, glass shade, and metal frame. p. 1
Key actions
- Install mounting plate p. 1
- Secure backplate p. 1
- Attach glass shade and frame p. 1
Maintenance and reset
- Replace LED module p. 1
Show 2 more answers Show less
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Power | 26 Watts | LED Module power consumption | p. 1 |
| Rating | Damp rated | Suitable for bathroom use | p. 1 |
| Length | 23-5/8" | Total fixture length | p. 1 |
Where to find it in the PDF
- Installation and Specs p. 1
- Parts List p. 2
Table of contents
Manual images
Click an image to enlargeQuick Guide
This document provides assembly and installation instructions for the Crystorama 2264-AG-LED bathroom vanity light. Important: All electrical components must be installed by a licensed electrician in accordance with the National Electric Code and appropriate local electrical codes. Always turn off the power before beginning installation.
Installation Instructions
- Place the mounting plate over the outlet box and mark two points on the wall at the center of the keyholes on the mounting plate.
- Drill two holes at the marked points and insert the wall anchors.
- Place the mounting plate over the outlet box and secure it with outlet box screws. Insert and tighten the anchor screws into the wall anchors until snug.
- Install the backplate onto the mounting plate and secure it with the mounting screws.
- Place the glass shade inside the metal frame and secure it with the clips.
- Install the metal frame onto the backplate and secure it with the side screws.
This fixture can be mounted both vertically and horizontally.
LED Replacement
To replace the LED module, remove the metal frame and the screws holding the assembly in place.
Technical Specifications
- Light Source: 1 LED Module, 26 Watts (Bulb included).
- Rating: Damp rated (suitable for bathroom environments).
- Dimensions: 23-5/8" length, 4-1/2" width, 4" depth.

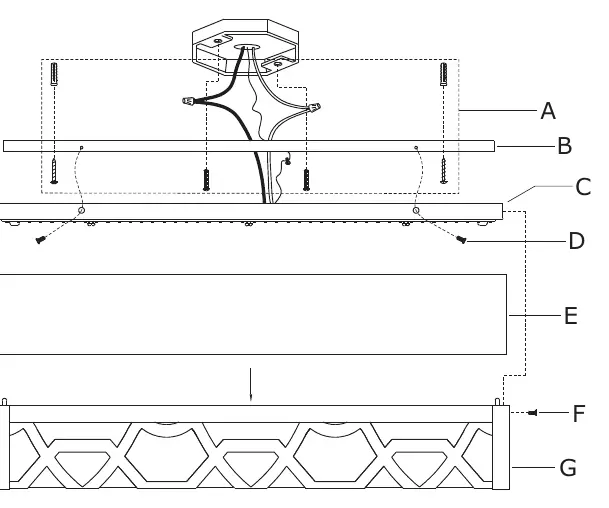

Parts List
- Mounting hardware
- Mounting plate
- Backplate
- Mounting screws
- Glass shade
- Side screws
- Metal frame
Manufacturer information
Crystorama
Practical help
Common problems
LED replacement
Remove the metal frame and screws to access and replace the LED module.
Mounting orientation
The fixture is designed to be mounted either vertically or horizontally.
Before use
- Turn off the main power supply before starting installation.
- Ensure installation is performed by a licensed electrician.
- Verify the wall surface is suitable for the mounting plate and anchors.
- Check that the damp rating is appropriate for your installation location.
Show more Show less
Specs in practice
- 26W LED Module
- The fixture comes with a pre-installed 26-watt LED light source.
Images and diagrams
- The installation diagram shows the sequence of mounting the plate, backplate, glass shade, and metal frame.
- The dimensions diagram provides the exact length, width, and depth for planning the installation space.
- The parts diagram identifies components A through G for easy assembly reference.
Model compatibility
- Requires a standard electrical outlet box.
- Must comply with National Electric Code.
