Assembly Instructions for Crystorama 2265-AG Chandelier
A comprehensive assembly and installation guide for the Crystorama 2265-AG Jennings Three Light Chandelier. Includes parts list, bulb requirements, and step-by-step mounting instructions.
Quick answers from the manual
Quick answer
- This document provides assembly and installation instructions for the Crystorama 2265-AG chandelier, including a parts list and safety warnings. p. 1, 2
Key actions
- Install the fixture p. 1
Problems and fixes
Glass diffuser fitment
Adjust the length of the nipple on the coupling to fit with the glass.
p. 1Show 2 more answers Show less
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Bulb Type | 3x Medium Base | Standard socket type | p. 1 |
| Max Wattage | 100W | Maximum power per bulb | p. 1 |
Where to find it in the PDF
- Assembly Instructions p. 1
- Parts List p. 2
Table of contents
Important Information
This document contains assembly and installation instructions for the Crystorama 2265-AG chandelier. All electrical components must be installed by a licensed electrician in accordance with the National Electric Code and appropriate local electrical codes. This fixture is dry rated.
Parts List
- Mounting hardware
- Canopy
- Collar ring and loop
- Chain (72 inches)
- Metal frame
- Fabric shade
- Glass diffuser
- Washers (plastic and metal)
- Hex nuts
- Nipple
- Cap and bottom finial
Installation Steps
- Slip the loop along the wire and thread it onto the nipple located on the top of the metal frame.
- Determine the preferred hanging height and adjust the chain to the required length.
- Connect the fixture wires to the supply wires in the outlet box.
- Install the fixture onto the outlet box.
- Install the bulbs (not included) into the sockets.
- Thread the nipple onto the coupling and adjust the length of the nipple to fit with the glass. Tighten it with the hex nut.
- Slide the glass diffuser, the plastic washer, and the metal washer over the nipple, then secure with the hex nut.
- Slide the cap over the nipple, then secure with the bottom finial.
Technical Specifications
Bulb Requirements: 3 Medium Base bulbs. 60 Watts recommended, 100 Watts maximum. LED bulbs are recommended for extended use.
Manufacturer information
Crystorama
Practical help
Common problems
Fixture not hanging at desired height
Adjust the chain length before connecting the fixture to the outlet box.
Glass diffuser not fitting correctly
Adjust the length of the nipple on the coupling to ensure proper fit with the glass before securing with the hex nut.
Before use
- Turn off power at the circuit breaker
- Ensure you have 3 Medium Base bulbs
- Verify all parts are present using the parts list
- Hire a licensed electrician for installation
Show more Show less
Specs in practice
- 60 Watts Recommended
- Optimal wattage for brightness and heat management; do not exceed 100W per bulb.
Images and diagrams

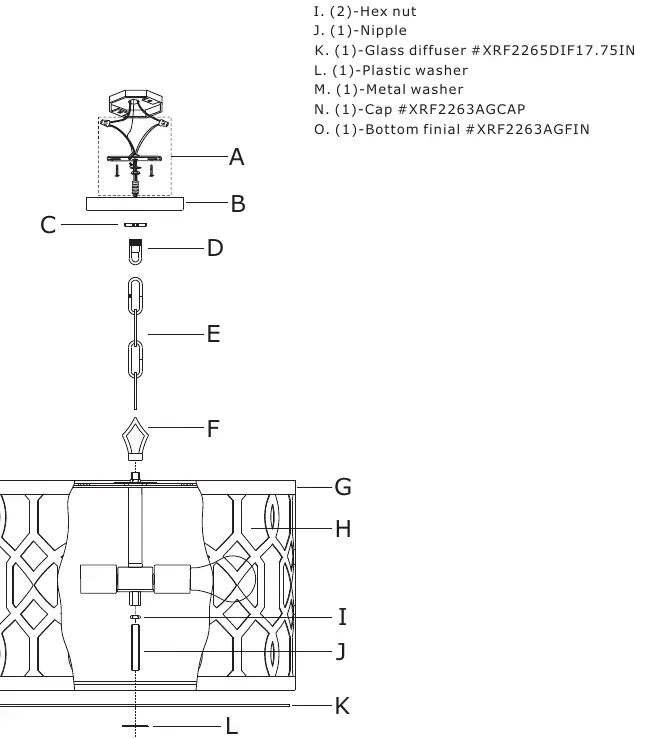

- The assembly diagram illustrates the order of components from the ceiling canopy down to the bottom finial.
- The parts list provides a breakdown of all included hardware and components with their specific identifiers.
Model compatibility
- Requires 3 Medium Base bulbs
- Compatible with LED bulbs for extended use
