Operator's Manual for Cub Cadet 10M Push Mower

Quick guide from the manual

This manual provides essential instructions for the safe operation and maintenance of the Cub Cadet 10M push mower. Important safety warnings: Never operate on slopes greater than 15 degrees, keep children at least 75 feet away, and never operate the mower in wet grass. Always wear safety glasses and sturdy, closed-toe shoes. Do not use E85 gasoline; use fresh, unleaded gasoline with a minimum of 87 octane.

Assembly and Set-Up

The mower is shipped without oil or gasoline. Before first use, you must assemble the handle and service the engine.

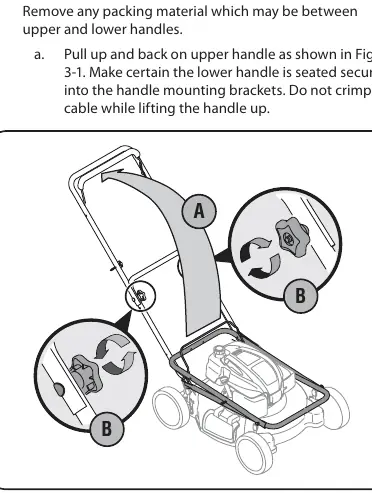

• Handle Assembly: Remove packing material, pull the upper handle up and back, and secure it to the lower handle using the star knobs. Ensure the lower handle is seated in the mounting brackets and secure with hairpin clips.
• Rope Guide: Attach the rope guide to the right side of the upper handle, then thread the starter rope through it.
• Side Discharge Chute: To convert from mulching to side discharge, lift the mulching plug and slide the chute hooks under the hinge pin.

Controls and Features

• Blade Control: Located on the upper handle. Squeeze against the handle to operate; release to stop the engine and blade.
• Choke Control: Located on the left side of the handle. Pull to activate for cold starts; push in once the engine warms up.

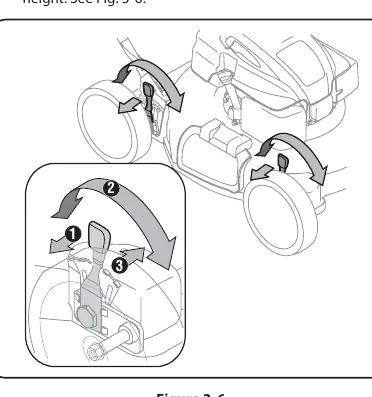

• Cutting Height Adjustment: Each wheel has a lever to adjust the cutting height. Ensure all four wheels are set to the same position for a uniform cut.

Operation

Starting the Engine:

1. Pull out the choke knob (if the engine is cold).
2. Stand behind the mower and hold the blade control against the upper handle.
3. Pull the recoil starter rope lightly until resistance is felt, then pull rapidly.
4. Once the engine warms up, push in the choke knob.

Stopping the Engine: Simply release the blade control handle.

Maintenance

• Lubrication: Lubricate pivot points on the blade control, wheel pivot arms, and mulch plug torsion spring at least once a season with light oil.
• Deck Care: Clean the underside of the deck after each use. Tip the mower with the air cleaner facing up. Do not use a pressure washer or garden hose.

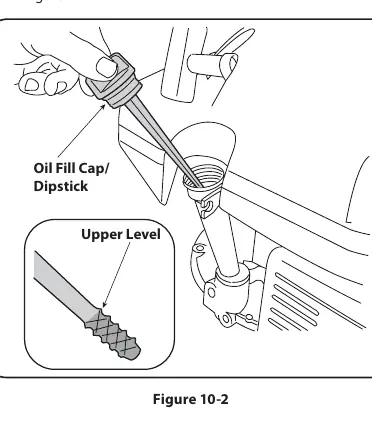

• Engine Care: Maintain oil levels, service the air cleaner every 25 hours (or more often in dusty conditions), and clean the spark plug once a season.

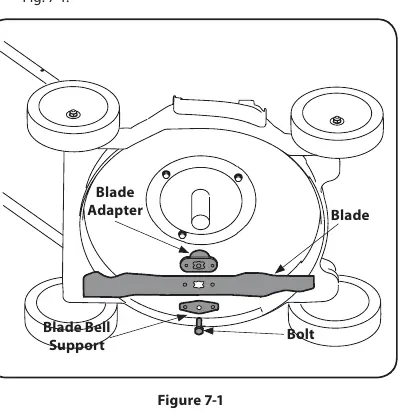

• Blade Care: Periodically inspect the blade for damage or dullness. If sharpening, ensure the blade remains balanced.

Troubleshooting

If the engine fails to start, check that the blade control is engaged, the spark plug boot is connected, and the fuel tank is filled with fresh gasoline. If the mower vibrates excessively, check for a loose or bent blade. For uneven cuts, ensure all wheels are set to the same height.

Storage

To prepare for off-season storage, clean and lubricate the mower thoroughly. Drain the fuel system if storing for over 30 days, or use a gasoline stabilizer. Store in a clean, dry, and well-ventilated area.
