Danfoss 032F2339 Overhaul Kit Installation Guide for EVRA and EVRS Size 20 Valves
Installation guide for the Danfoss 032F2339 overhaul kit, designed for EVRA and EVRS size 20 valves. Includes exploded view diagrams and a complete parts list with component dimensions.
Table of contents
Manual images
Click an image to enlargeQuick Guide for Overhaul Kit 032F2339
This document provides the installation and parts identification guide for the Danfoss 032F2339 Overhaul Kit. This kit is specifically designed for the maintenance and repair of EVRA and EVRS valves, size 20. Users should utilize the provided exploded view diagrams to identify the correct placement of all 11 components during the assembly or repair process.
Valve Compatibility
The 032F2339 overhaul kit is compatible with the following valve models:
- EVRA (size 20)
- EVRS (size 20)
Assembly and Parts Identification

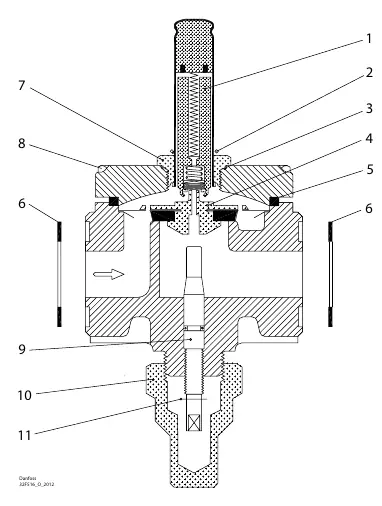

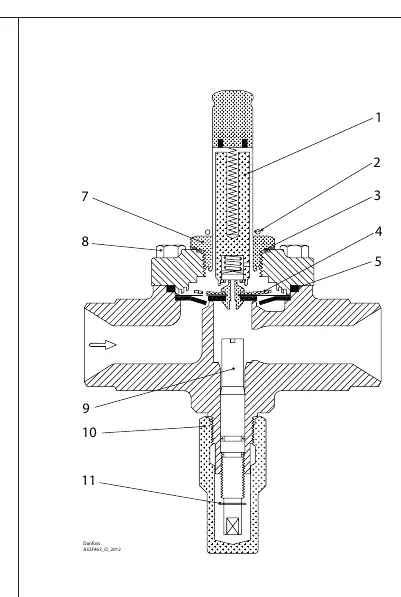

The kit contains 11 distinct parts. The installation guide provides two separate exploded view diagrams—one for the EVRA valve and one for the EVRS valve—to assist in the correct positioning of each component. Ensure that all parts are accounted for before beginning the installation.
Component Specifications

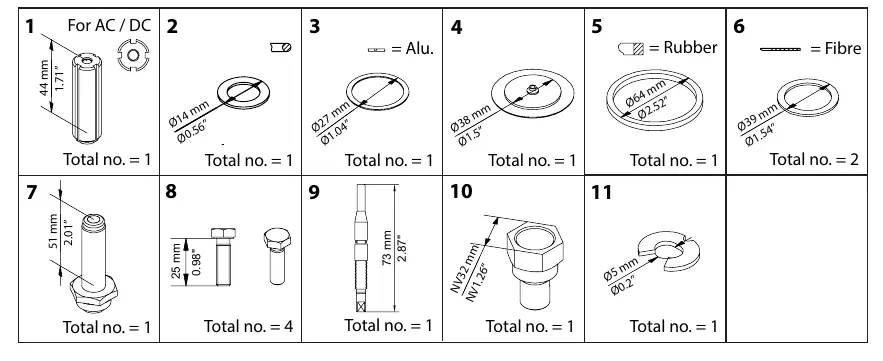

The kit includes components made from various materials, including Aluminum (Alu), Rubber, and Fibre. Below are the key dimensions for the parts included in the kit:
- Part 1: 44 mm (1.71")
- Part 2: 14 mm (0.56")
- Part 3: 27 mm (1.04")
- Part 4: 38 mm (1.5")
- Part 5: 64 mm (2.52") - Rubber
- Part 6: 39 mm (1.54") - Fibre
- Part 7: 51 mm (2.01")
- Part 8: 25 mm (0.98")
- Part 9: 73 mm (2.87")
- Part 10: NV32 mm (NV1.26")
- Part 11: 5 mm (0.2")
