Danfoss CTR 20 Electric 3-Way Valve

Installation and service guide for the Danfoss CTR 20 electric 3-way valve. Includes technical specifications, brazing and welding procedures, electrical connection details, and maintenance instructions.

Table of contents

Manual images

Click an image to enlarge

Quick guide from the manual

The Danfoss CTR 20 electric 3-way valve is delivered in a half-opened position, which is required for brazing and welding. Important: Do not connect the valve directly to an AC/DC power source; it must be connected to an appropriate controller or driver. Do not operate the valve while assembling or disassembling.

Technical specifications

  • Main application: Heat reclaim
  • Refrigerant: R44 (contact Danfoss for others)
  • Ambient temperature: -40 °C to 60 °C (-40 °F to 140 °F)
  • Fluid temperature: 0 °C to 150 °C (32 °F to 302 °F)
  • Max working pressure: 140 Bar / 2030 psig
  • Stepper motor type: Bipolar
  • Phase Current: 100 mA RMS / 141 mA Peak
  • Coil resistance: 52 Ohm ±10% (25 °C)
  • Total full steps: 6600
  • Step rate: 75 stp./sec.

Flow direction

The valve supports two flow configurations:

Flow direction configurations A and B
Flow direction configurations A and B
  • A: 1 in, 2 outs
  • B: 2 in, 1 out

Mounting and installation

The valve can be mounted in various orientations. Do not disassemble the valve before brazing or welding. Ensure the valve remains in the middle position during these processes.

Mounting direction
Mounting direction

Brazing

  • Max temperature: 700 °C / 1300 °F
  • Keep valve body below 75 °C / 167 °F
  • Use recommended filler metals (e.g., Silver-Flo 55 or 56). Do not use filler metals containing Phosphor (e.g., BS: CP 1 / DIN L-Ag 15P).

Welding

  • Max temperature: 75 °C / 167 °F
  • Recommendation for TIG welding: Use Argon shield gas, approximately 60A power, and 2 mm thick stainless steel alloy material.

Electrical connections

The valve uses an M12 connection. Pinout configuration:

M12 electrical connection pinout
M12 electrical connection pinout
  • A1 and A2: Coil I
  • B1 and B2: Coil II

Service and maintenance

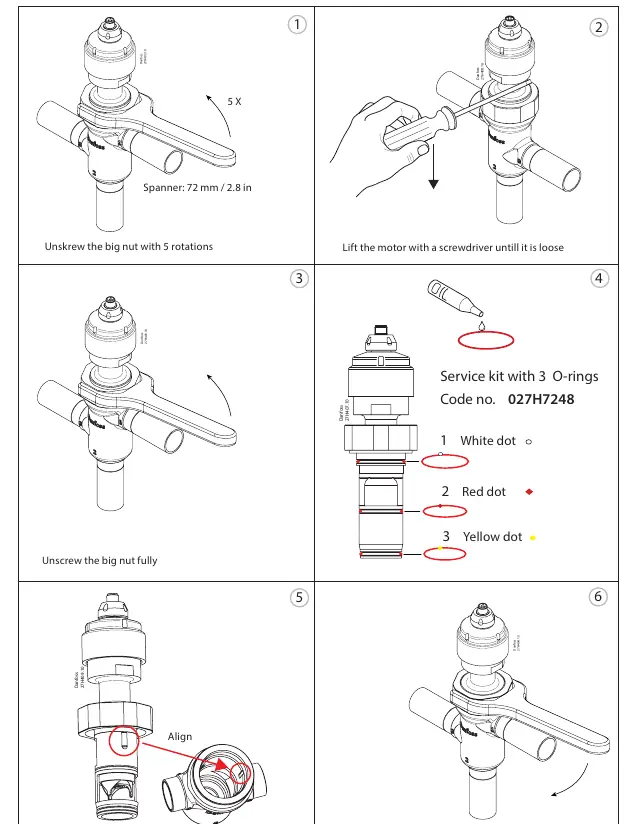

If service is required, a service kit (Code no. 027H7248) is available, containing 3 O-rings (White, Red, Yellow). Use a 72 mm spanner to unscrew the big nut. Ensure the fixing pin is correctly aligned in the gap during reassembly. Max torque for the nut is 130 Nm / 95.9 ft-lbf.

Service and O-ring replacement
Service and O-ring replacement

Manufacturer information

Danfoss A/S

Brand profile

Practical help

Common problems

Valve not operating correctly

Ensure it is connected to an appropriate controller/driver, not directly to an AC/DC power source.

Leakage after brazing/welding

Ensure the valve was not disassembled before brazing/welding and that the valve body temperature did not exceed 75°C.

Before use

  • Verify the valve is in the half-opened position (as delivered).
  • Ensure the controller/driver is compatible with the bipolar stepper motor.
  • Check that the refrigerant is R744 (contact Danfoss for others).
  • Prepare brazing/welding equipment with appropriate temperature controls.
  • Ensure the fixing pin is aligned during any reassembly.

Specs in practice

Phase Current
100 mA RMS / 141 mA Peak.
Coil resistance
52 Ohm ±10% at 25°C.
Max working pressure
140 Bar / 2030 psig.
Ambient temperature
-40°C to 60°C.

Images and diagrams

  • Flow direction A: 1 in, 2 outs.
  • Flow direction B: 2 in, 1 out.
  • Electrical connection: M12 connector with A1/A2 (coil I) and B1/B2 (coil II).

Model compatibility

  • Designed for R744 refrigerant; contact Danfoss for other refrigerants.
  • Requires an appropriate controller/driver; do not connect directly to power.
