Installation Guide for Danfoss 032F2337 Overhaul Kit
Quick installation and parts reference guide for the Danfoss 032F2337 Overhaul Kit. Includes exploded view diagrams for EVRA and EVRS valves (size 10) and a complete parts list with dimensions.
Table of contents
Manual images
Click an image to enlargeQuick Guide for Overhaul Kit
This document serves as the official parts list and assembly reference for the Danfoss 032F2337 Overhaul Kit. This kit is specifically designed for the maintenance and repair of Danfoss EVRA and EVRS valves, size 10. Before beginning any maintenance, ensure the system is depressurized and safe to work on.
Parts List and Specifications

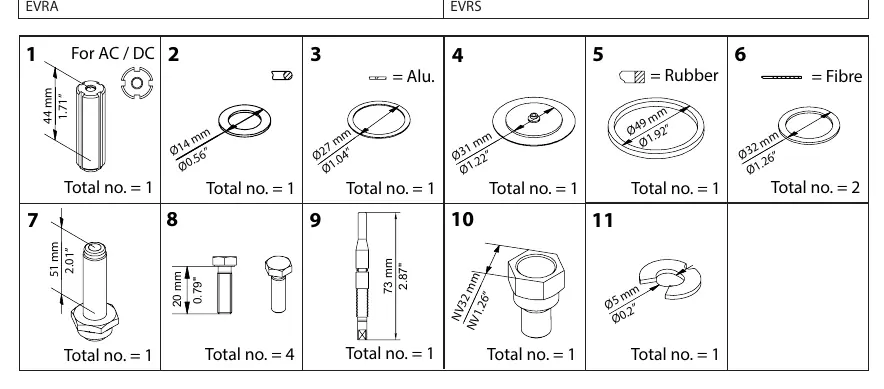

The kit contains 11 distinct components. Verify all parts are present before starting the assembly:
- Part 1: 44 mm (1.71") length, for AC/DC
- Part 2: 14 mm (0.56") diameter
- Part 3: 27 mm (1.04") diameter, Aluminum
- Part 4: 31 mm (1.22") diameter
- Part 5: 49 mm (1.92") diameter, Rubber
- Part 6: 32 mm (1.26") diameter, Fibre (Total: 2)
- Part 7: 51 mm (2.01") length
- Part 8: 20 mm (0.79") length (Total: 4)
- Part 9: 73 mm (2.87") length
- Part 10: NV32 mm (NV1.26")
- Part 11: 5 mm (0.2") diameter
Assembly Diagrams

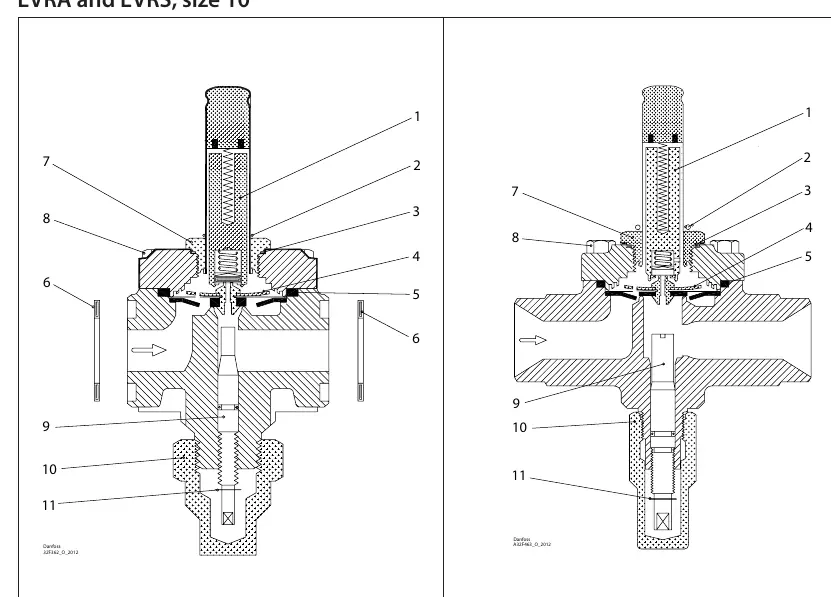

The manual provides exploded view diagrams for both EVRA and EVRS valve types. Use these diagrams to identify the correct placement of parts 1 through 11 during the overhaul process. Ensure that the orientation of the internal components matches the provided schematics to maintain proper valve function.
Manufacturer information
Danfoss A/S
Practical help
Common problems
Valve leakage after assembly
Verify that all seals (specifically rubber and fibre parts) are seated correctly and not pinched during installation.
Incorrect part orientation
Refer to the exploded view diagrams for EVRA and EVRS to ensure the internal components are aligned according to the valve type.
Incompatibility
This kit is strictly for EVRA and EVRS valves, size 10. Do not attempt to use these parts on other valve sizes or models.
Before use
- Confirm the valve model is EVRA or EVRS.
- Verify the valve size is 10.
- Ensure the system is depressurized and isolated before starting maintenance.
- Check that all 11 parts listed in the kit are present.
- Clean the valve body thoroughly before installing new parts.
Specs in practice
- Part 6 (Fibre)
- Includes 2 units, 32 mm (1.26") diameter.
- Part 5 (Rubber)
- Rubber component, 49 mm (1.92") diameter.
Images and diagrams
- The diagrams show an exploded view of the valve assembly.
- Numbers 1 through 11 correspond to the parts list provided in the kit.
- Separate diagrams are provided for EVRA and EVRS configurations to highlight specific assembly differences.
Model compatibility
- Compatible only with EVRA and EVRS valves, size 10.
