Deante KON 007S Linear Slot Drain Installation Guide
A comprehensive installation guide for the Deante KON 007S, KON 008S, and KON 009S linear slot drains, covering assembly, leveling, waterproofing, and tiling procedures.
Table of contents
Manual images
Jump to the sectionQuick guide from the manual
This document provides installation instructions for the Deante KON series linear slot drains (models 007S, 008S, 009S). The installation requires careful leveling to ensure proper water drainage and professional waterproofing to prevent leaks. The process involves assembling the drain body, setting the slope, applying waterproofing foil, and finishing with tiles and silicone sealant.
Assembly
Begin by attaching the mounting brackets to the drain body. Secure the brackets using the provided wing nuts and bolts. Ensure all components are aligned correctly before proceeding to the installation site.
Installation and Leveling
Place the drain in the designated area. Use a spirit level to ensure the drain is positioned with a slope of 2-3% to facilitate water flow. The drainage pipe must also maintain a minimum slope of 2.5% to ensure efficient drainage. Verify the stability of the drain body before proceeding to the next steps.
Waterproofing and Finishing
Apply a waterproofing foil layer around the drain and up the adjacent walls (up to 1.5m height). Ensure the foil is applied evenly. After tiling, apply silicone sealant around the edges of the drain to create a watertight seal. Allow the silicone to cure for at least 24 hours before using the shower.
Maintenance
Regularly clean the drain channel and the trap to prevent blockages. Ensure the grate is properly seated after cleaning to maintain the aesthetic and functional integrity of the installation.
Manufacturer information
Deante
Practical help
Common problems
Water pooling in the shower area
Check if the drain slope is set correctly (2-3%) and ensure the drainage pipe has at least a 2.5% slope.
Leakage around the drain edges
Ensure the waterproofing foil was applied correctly and that the silicone sealant was allowed to cure for at least 24 hours.
Before use
- Verify the drain is level with a 2-3% slope.
- Ensure the drainage pipe has a minimum 2.5% slope.
- Apply waterproofing foil up to 1.5m on walls.
- Allow silicone sealant to cure for 24 hours before first use.
Specs in practice
- Waterproofing height
- Foil must be applied up to 1.5m on the wall surface.
Images and diagrams
- Step 1: Assembly of brackets and leveling feet.

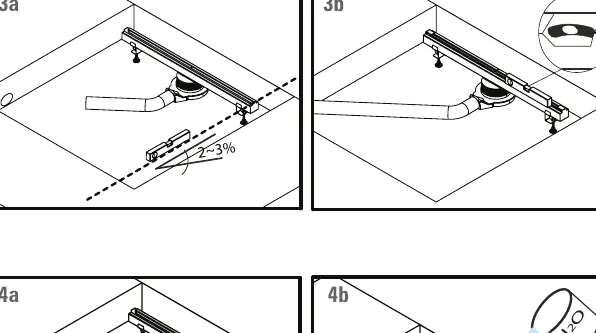

- Step 3: Checking the slope with a spirit level.
- Step 4: Testing drainage flow with water.

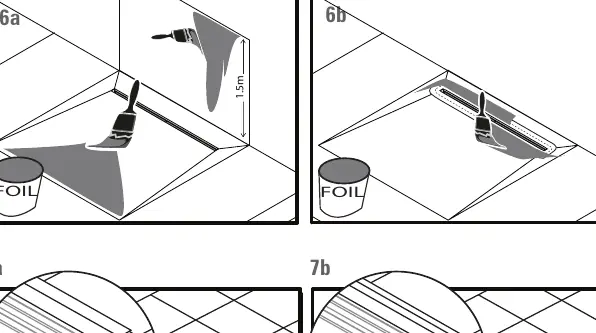

- Step 6: Applying waterproofing foil.
- Step 8: Applying silicone sealant.
Model compatibility
- Instructions apply to models KON 007S, KON 008S, and KON 009S.
