User Manual for Decathlon Domyos Run 100E-B Treadmill
Quick guide for the Decathlon Domyos Run 100E-B treadmill. Includes assembly instructions, folding and unfolding procedures, console operation, maintenance tips, and program details.
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Decathlon Domyos Run 100E-B is a treadmill designed for domestic use (up to 5 hours per week). Before starting, ensure the treadmill is plugged in, the master switch is set to 'I', and the safety key is attached to your clothing and inserted into the console. The screen will light up and display 'GO' when ready.
Assembly

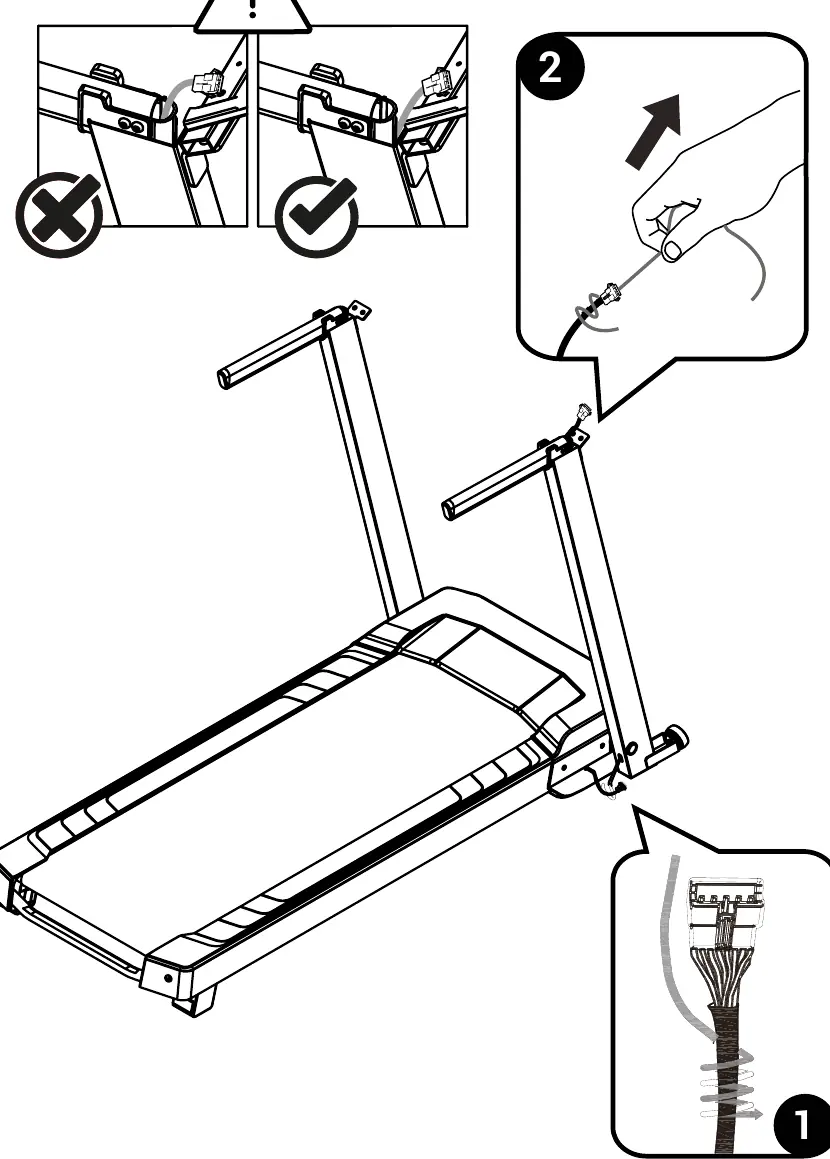

Follow the assembly steps provided in the manual using the included tools. Ensure all bolts are tightened securely. Refer to the specific diagrams for wiring connections and bolt placement. The assembly process requires two people.
Folding and Unfolding
The treadmill can be folded for storage. Follow the numbered steps in the manual to safely fold and unfold the unit, ensuring the locking mechanism is engaged. Always be careful of pinch points during this process.
Console Operation
The console displays time, distance, speed, rhythm, calories, and heart rate. Use the START/PAUSE button to begin. Speed can be adjusted using the + and - buttons. The safety key acts as an emergency stop; removing it will immediately stop the treadmill.
Programs
There are 30 pre-installed programs categorized into Calorie Burn, Endurance, and Interval Training. Select a program when the treadmill is stopped. You can adjust the maximum speed of a selected program using the + and - buttons.
Maintenance
Perform maintenance every 200 km. If the console displays 'GO SERVICE', check belt tension, lubrication, and screw tightness. To reset the service message, insert the safety key and hold the STOP and + buttons for three seconds.
Walking Belt Tension
The tension of the running belt should be 1.7 (+/- 0.1). If the value is lower, tighten the two rear roller screws clockwise. If higher, reduce the tension by turning them anticlockwise. A half turn of the key equals 0.03.
Manufacturer information
Decathlon
Practical help
Common problems
Console displays 'GO SERVICE'
Perform maintenance (belt tension, lubrication, screw tightness). Reset by holding STOP and + for 3 seconds with safety key inserted.
Belt tension incorrect
Verify tension (1.7 +/- 0.1). Adjust using rear roller screws (clockwise to tighten, anticlockwise to loosen).
Before use
- Plug in power cord.
- Set master switch near power cord to 'I'.
- Stand on the treadmill footrest.
- Attach safety key clip to your garment.
- Insert safety key into the console slot.
Specs in practice
- Max User Weight
- 130 kg (286.6 lbs).
- Running Surface
- 45 cm x 120 cm.
- Power Consumption
- 750 to 850 watts (at 90kg user, 14 km/h).
Images and diagrams

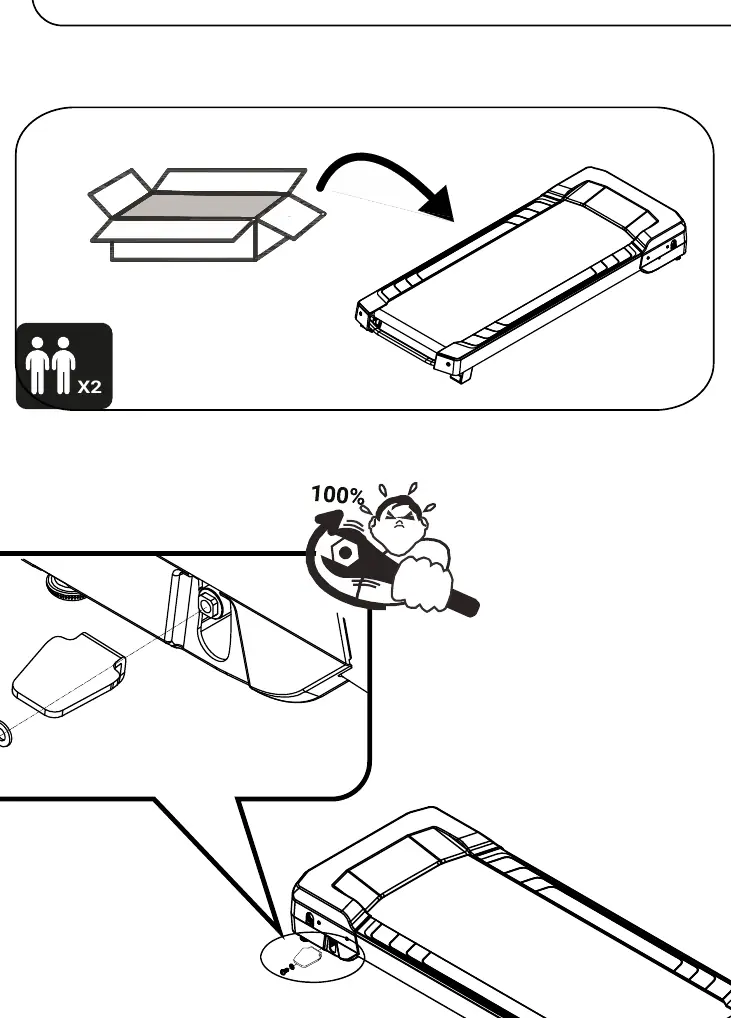

- Assembly steps 1-5 show bolt locations and tool usage.

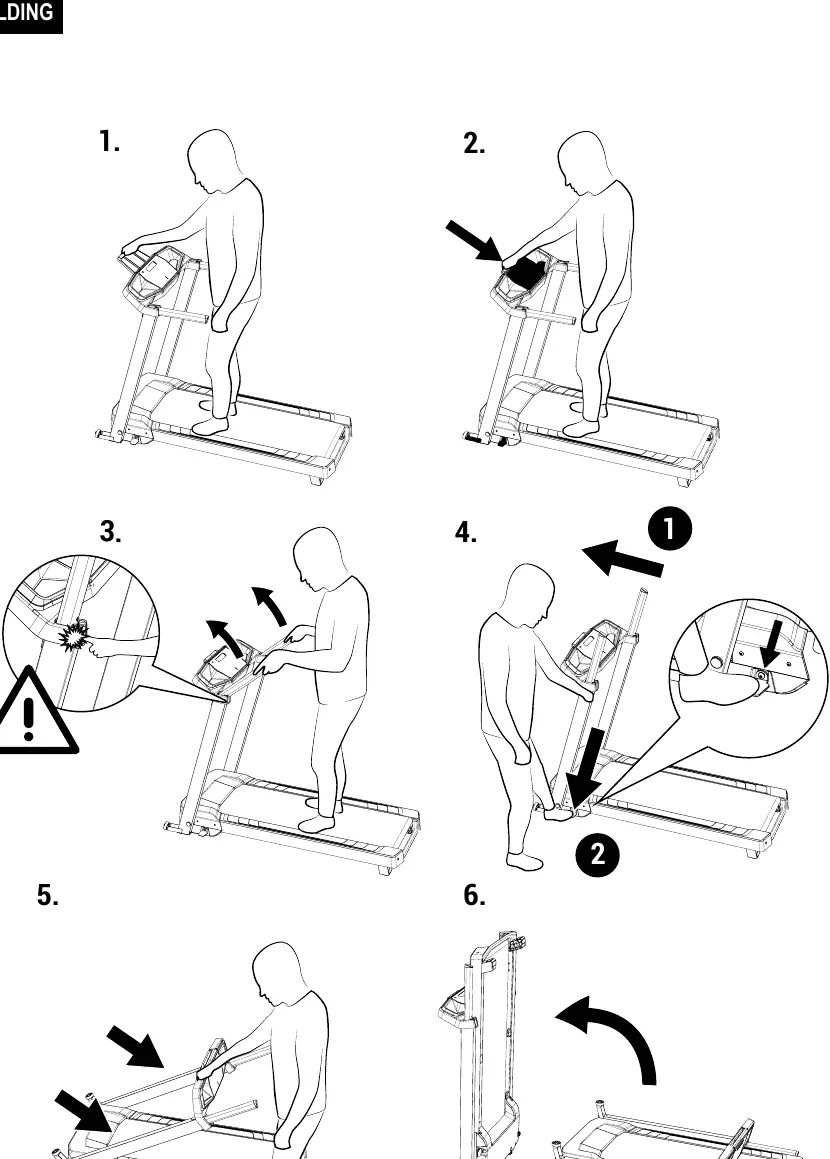

- Folding/Unfolding diagram illustrates the locking mechanism.
- Manual inclination shows the adjustment lever at the base.
Model compatibility
- Compatible with Domyos E-Connected application via Bluetooth.
- Compatible with heart rate monitor straps (sold separately).
