Delta Charmaine 19962TZ-SD-DST Faucet Parts Diagram
Access the official parts diagram and replacement component list for the Delta Charmaine 19962TZ-SD-DST faucet. Identify specific parts for maintenance, including the solenoid assembly, sprayer, and mounting hardware.
Table of contents
Quick Guide to Parts and Maintenance
This document serves as the official parts diagram for the Delta Charmaine 19962TZ-SD-DST faucet. It is intended to help users identify specific components for repair or replacement. Always ensure the water supply is shut off before performing any maintenance on the faucet.
Faucet Components
The primary faucet assembly includes the following key components:
- Handle & Screw (RP82233): Controls water flow and temperature.
- Cartridge Assembly (RP74836): The core valve mechanism for water control.
- Sprayer Assembly (RP93631): Features ShieldSpray technology.
- Mounting Hardware (RP92714): Includes the mounting bracket, nut, and wrench for installation.
- Soap Dispenser (RP50781): Integrated dispenser assembly.
Electronic and Accessory Components
The faucet includes electronic features requiring specific components:
- Solenoid Assembly (EP92546): Controls the electronic touch activation. Note that the part number may vary based on the faucet finish (e.g., EP92546 vs EP92546XX).
- Battery Box (RP78389): Powers the electronic system.
- Power Supply (EP102157): Optional 9-volt power supply for the electronic system.
- Check Valves (RP53468): Prevents backflow.
Replacement Parts Ordering
When ordering replacement parts, verify the finish of your faucet. Some components, particularly the solenoid assembly, have specific part numbers corresponding to different finishes (CZ, PC, SS, AR, KS vs BL, MW, RB, SP). Always refer to the part numbers listed in the diagrams to ensure compatibility.
Practical help
Common problems
Faucet leaking from the handle
Inspect the cartridge assembly (RP74836) and O-rings (RP13938) for wear or damage.
Electronic touch feature not working
Check the battery box (RP78389) for fresh batteries or inspect the solenoid assembly (EP92546) for connection issues.
Low water flow or spray issues
Check the aerator (RP90248) for debris or inspect the sprayer assembly (RP93631) and hose (RP62057).
Before use
- Identify the specific finish of your faucet to order the correct replacement parts.
- Ensure the water supply is turned off before attempting any repairs.
- Verify if the issue is related to the mechanical faucet parts or the electronic solenoid system.
- Have the correct tools ready, such as the included wrench (RP92714) for mounting hardware.
Images and diagrams

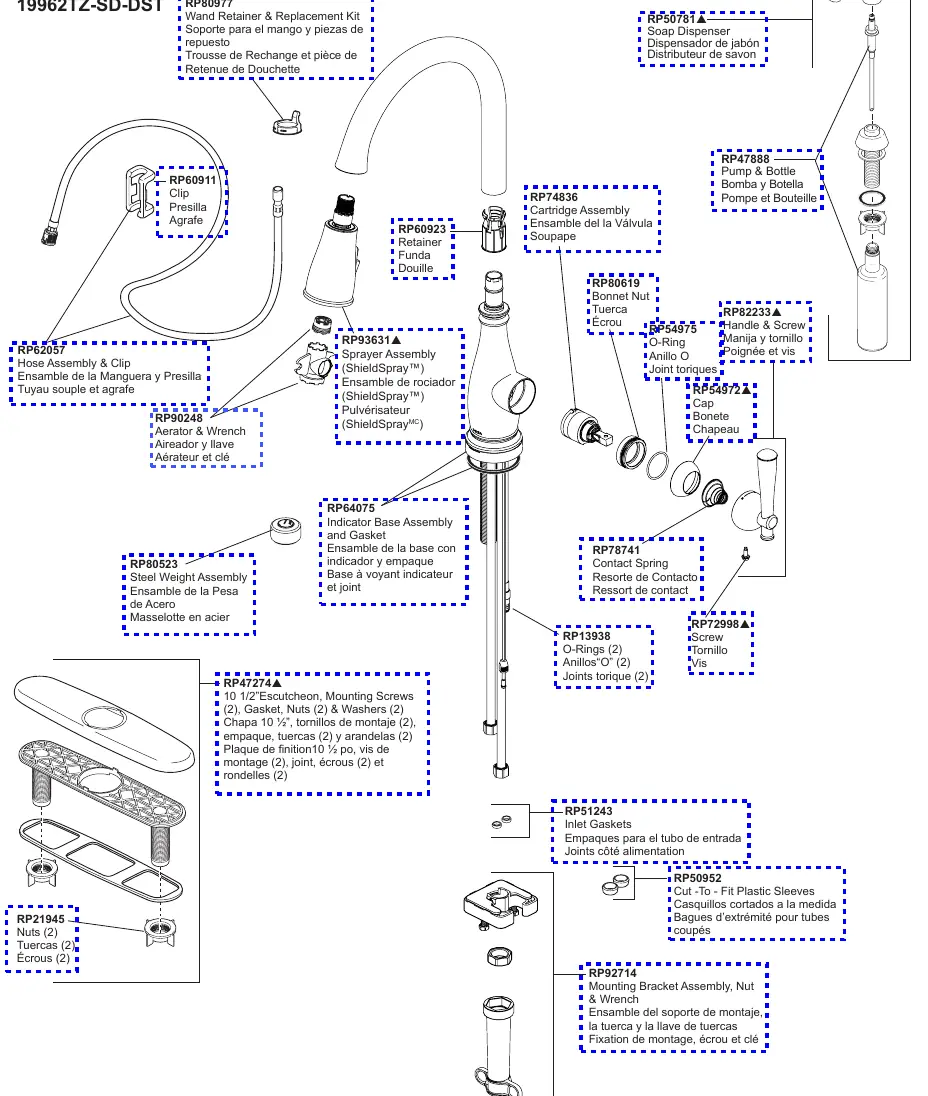

- Page 1 provides an exploded view of the main faucet body, handle, sprayer, and mounting hardware.
- Page 2 details the electronic components, including the solenoid, battery box, and power supply.
Model compatibility
- Solenoid assembly (EP92546) part number varies by finish; check your specific model finish before ordering.
- Adapters (RP63263, RP63264, RP63265) are available as separate accessories for different connection types.
