Parts Diagram for Delta 19814Z-SD-DST Kitchen Faucet
Access the official parts diagram for the Delta 19814Z-SD-DST pull-down kitchen faucet. Identify replacement part numbers for the wand, hose, cartridge, and mounting hardware to assist with repairs and maintenance.
Table of contents
Parts Identification Guide

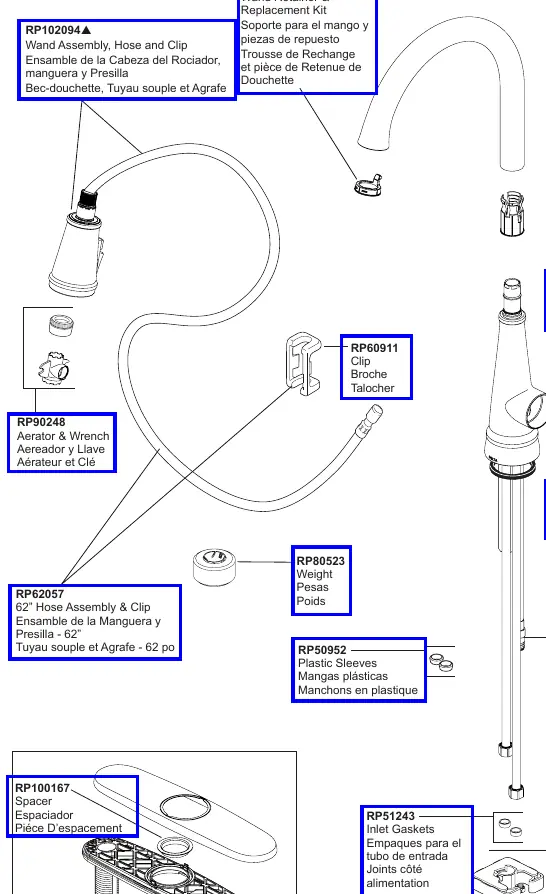

This document serves as the official parts diagram for the Delta 19814Z-SD-DST pull-down kitchen faucet. It provides an exploded view of the faucet assembly, allowing users to identify specific components for maintenance, repair, or replacement. Each part is labeled with a unique RP (Replacement Part) number, which should be used when ordering components from authorized Delta retailers.
How to Use This Diagram
To identify a part for replacement, locate the component on the exploded view diagram. The lines pointing to specific items correspond to the RP numbers listed in the text. Ensure you verify the finish of your faucet, as some parts may have specific finish codes (indicated by a triangle symbol in the diagram).
Key Components
- Wand Assembly (RP102094): Includes the spray head, hose, and clip.
- Hose Assembly (RP62057): 62-inch hose with clip.
- Cartridge Assembly (RP73000): The core valve mechanism controlling water flow and temperature.
- Mounting Hardware: Includes the mounting nut assembly (RP92714), spacer (RP100167), and escutcheon plate (RP47274).
- Aerator (RP90248): Located at the tip of the wand; includes a wrench for removal.
Accessories and Adapters
The diagram also lists optional accessories and connection adapters that may be purchased separately:
- Soap Dispenser (RP50781): Available as a separate accessory.
- Adapters: Various adapters are available for different connection requirements, such as 3/8"-24 UNEF to 1/2"-20 UN or 1/2"-14 NPSM.
Practical help
Common problems
Low water flow from the spray head
Check the aerator (RP90248) for mineral buildup or debris. Use the included wrench to remove and clean it.
Leaking at the faucet handle
The cartridge assembly (RP73000) or the O-rings (RP13938) may need replacement. Inspect these components for wear.
Hose does not retract properly
Ensure the weight (RP80523) is correctly positioned on the hose assembly (RP62057) under the sink.
Before use
- Verify the model number (19814Z-SD-DST) on your faucet to ensure part compatibility.
- Identify the specific RP number for the part you need to replace.
- Check if the part requires a specific finish (look for the triangle symbol in the diagram).
- Ensure you have the necessary tools for disassembly, such as an adjustable wrench.
Images and diagrams
- The exploded view shows the vertical assembly of the faucet from the handle down to the mounting hardware.
- Lines indicate the correct order of assembly for O-rings, bonnet nuts, and clips.
- The diagram distinguishes between the main faucet body and optional accessories like the soap dispenser.
Model compatibility
- Accessories like the soap dispenser (RP50781) are not included with the faucet and must be purchased separately.
- Multiple adapter kits (RP63263, RP63264, RP63265) are available to adapt the 3/8"-24 UNEF supply lines to 1/2" connections.
