User Manual for Sanela SLUN 07E Stainless Steel Wall Hung Double Sink
Quick guide for the Sanela SLUN 07E stainless steel wall-hung double sink. Includes installation steps, electrical connection requirements, sensor settings, and maintenance instructions.
Table of contents
Manual images
Jump to the sectionImportant Information

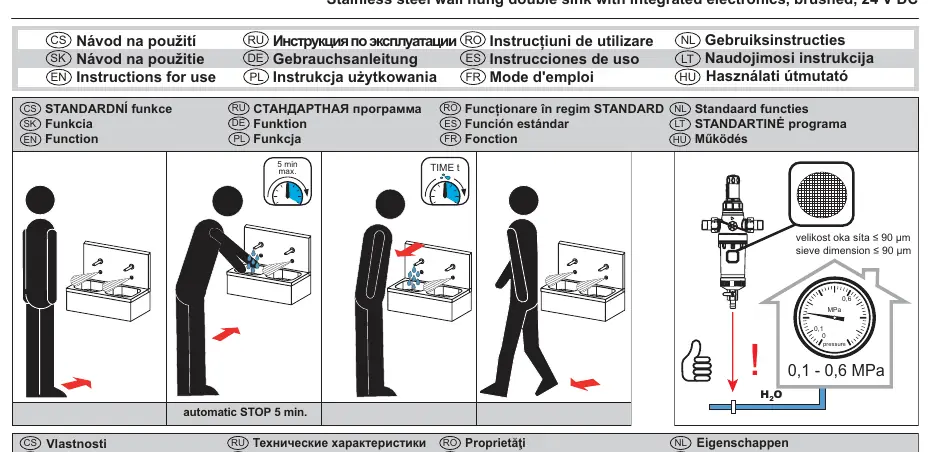

The Sanela SLUN 07E is a stainless steel wall-hung double sink with integrated electronics. Crucial: The unit requires a constant 24V DC power supply. Do not connect the power supply behind a light switch, as this will cause malfunctions. The sensor detection range is adjustable between 0.1 and 0.3 meters. The automatic stop function is set to 5 minutes by default.
Installation Requirements
- Water Pressure: Must be between 0.1 and 0.6 MPa.
- Water Inlet: G 1/2" connection.
- Waste Pipe: Diameter of 40 mm.
- Mounting Height: The top edge of the sink should be 850 mm above the ground.
- Sieve Dimension: Must be ≤ 90 µm.
Installation Steps
- Ensure the power supply is disconnected before starting.
- Drill holes according to the technical drawing (8 mm diameter).
- Install the mounting hardware (screws and anchors).
- Connect the water supply (Hot/Cold) and the waste pipe.
- Connect the 24V DC power supply to the electronics.
- Verify all connections and test the sensor operation.
Settings and Adjustments
Parameters such as the hygienic flush interval and duration can be adjusted using the SLD 03 remote control (sold separately). Available settings include:
- Hygienic Flush Interval: OFF, 6, 8, 12, 24, 48, 72, or 168 hours.
- Hygienic Flush Duration: 5 to 1200 seconds.
- Factory Settings: 0.25s flush duration, 300s safety shut-off.
Maintenance
To maintain optimal performance, clean the aerator regularly. If the water flow is restricted, unscrew the aerator, clean it, or replace it if necessary. Ensure the power supply remains constant at all times.
Manufacturer information
SANELA spol. s r. o.
Practical help
Common problems
Sensor not activating water flow
Check if the 24V DC power supply is active and ensure it is not connected behind a light switch.
Water flow stops unexpectedly
The automatic stop function is active (default 5 minutes). Ensure the sensor is not blocked.
Before use
- Verify 24V DC power supply is available.
- Ensure water pressure is between 0.1 - 0.6 MPa.
- Check that the sieve dimension is ≤ 90 µm.
- Confirm the unit is connected to a constant voltage source.
- Ensure the installation height is 850 mm.
Images and diagrams

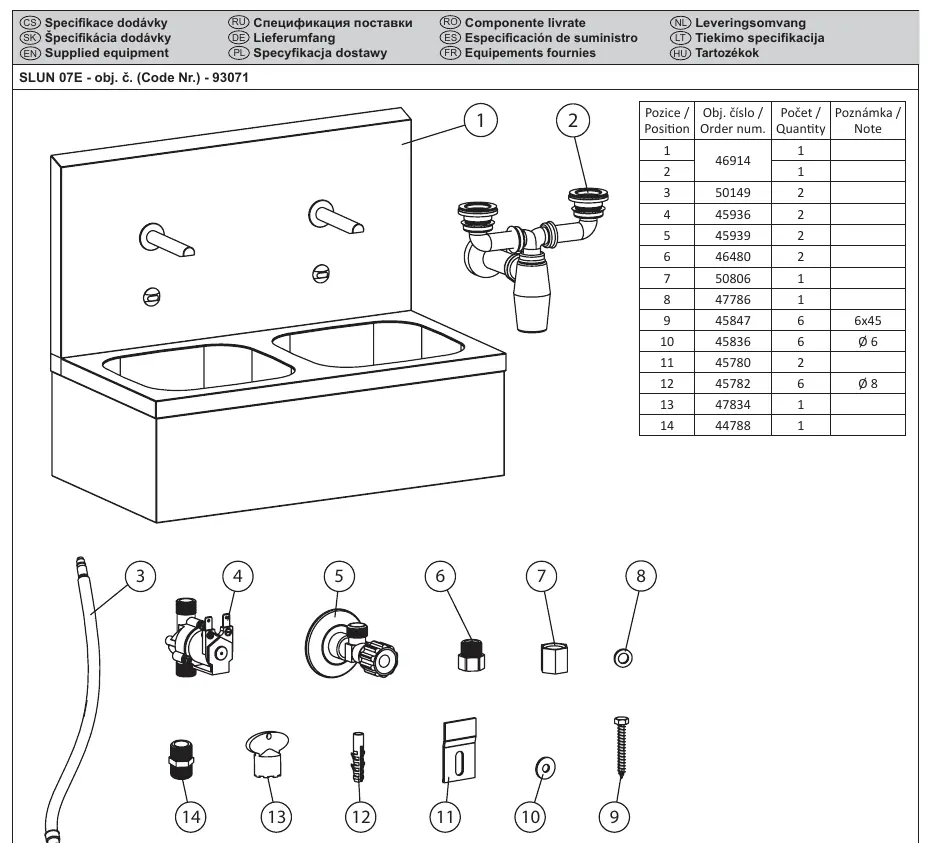

- Page 2 provides an exploded view of the sink and a parts list.

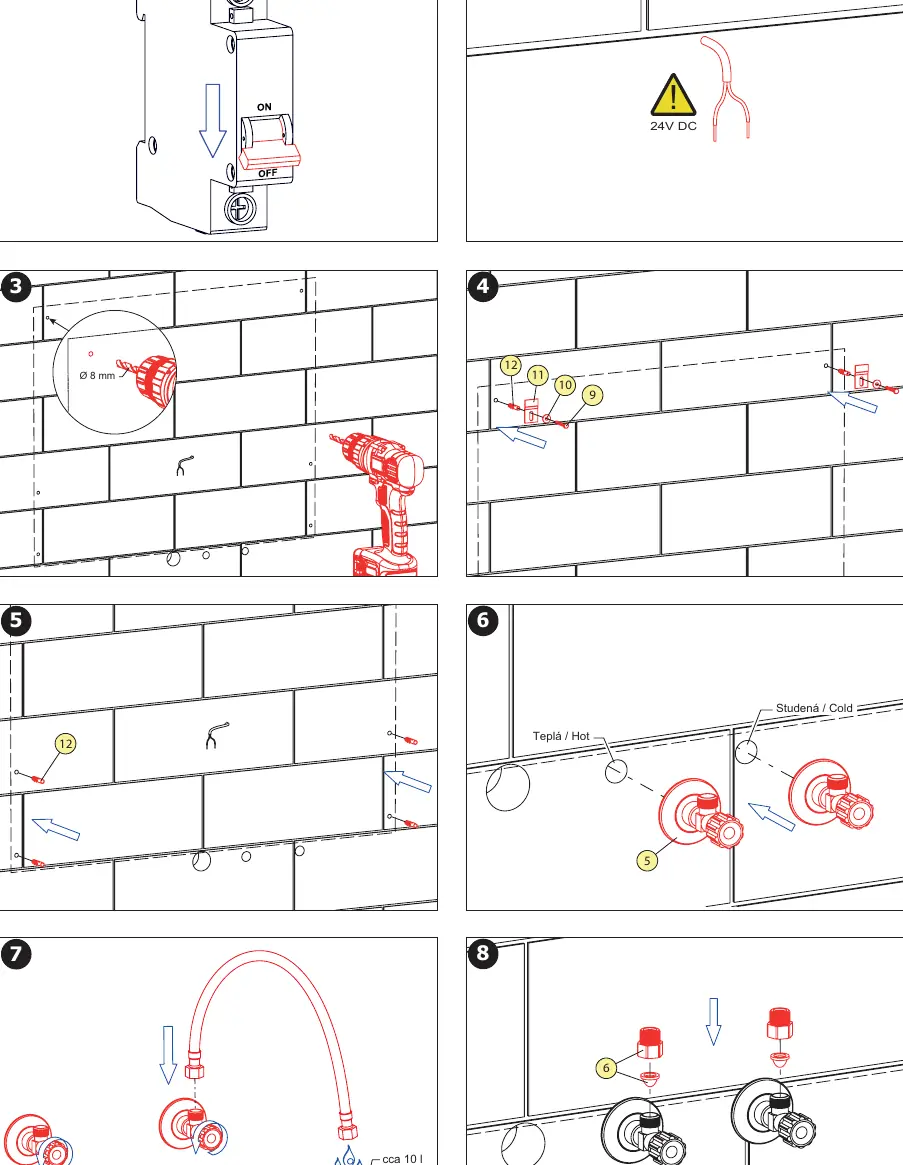

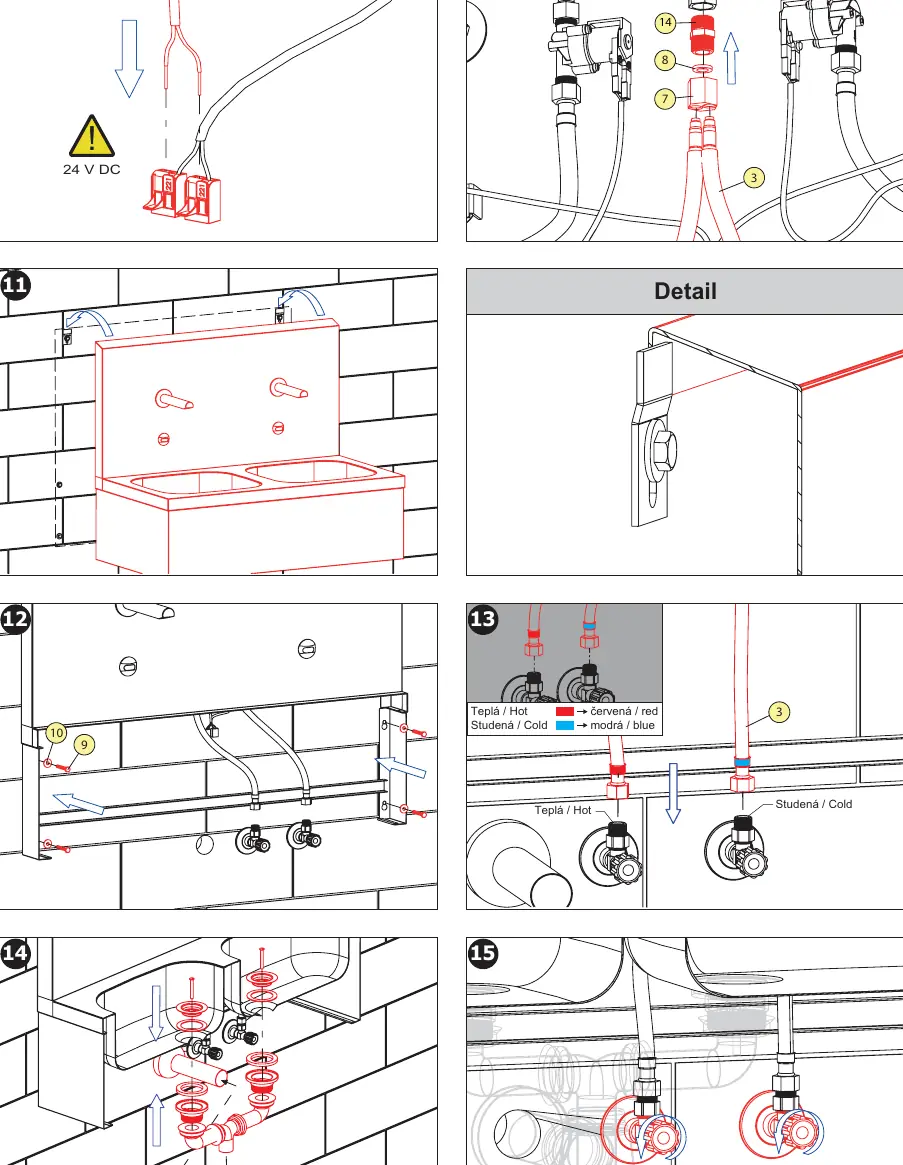

- Page 4 and 5 detail the step-by-step mounting and wiring process.
- Page 7 illustrates the aerator replacement procedure.
Model compatibility
- Requires SLD 03 remote control for parameter adjustments.
- Compatible with standard 24V DC power supplies.
