DEWALT Pure110+ Adhesive Anchoring System Technical Bulletin
Quick guide to the DEWALT Pure110+ Adhesive Anchoring System, covering installation methods with DustX+ automatic dust extraction, bond strength reduction factors, and compliance standards.
Table of contents
Quick Guide to Pure110+ Installation
The Pure110+ Adhesive Anchoring System requires specific drilling and cleaning methods to ensure proper bond strength. The use of the DEWALT DustX+ system allows for simultaneous drilling and cleaning, eliminating the need for manual hole cleaning steps. Always ensure the drilling method matches the requirements for the specific adhesive anchor system.
DustX+ System Components
The DustX+ system integrates several components to ensure a clean hole during the drilling process:
- DEWALT Hammer-drill
- Hollow Drill Bit (HDB)
- DEWALT HEPA Vacuum (DWV012 & DWV015)
- Pure110+ Adhesive
- Steel Rod or Rebar Anchor
Installation Methods and Bond Strength
The bond strength of the installed anchor is directly affected by the drilling and cleaning method used. The following methods are supported:
- Hammer-drilling with standard carbide drill bits: Requires a traditional cleaning process (Blow 2x, Brush 2x, Blow 2x). This uses baseline bond strength values.
- Hammer-drilling with hollow drill bits (DustX+): The system cleans the hole during drilling. No extra cleaning steps are necessary. The bond strength reduction factor is 1.0 (no reduction).
Compliance and Standards
All installations must adhere to the following standards:
- ACI 318-19 Chapter 17 and ACI 318-14 Chapter 17.
- ACI 355.4/ASTM E488 (tension tests in dry cracked and uncracked normal weight concrete).
- ANSI B212.15 (requirements for standard carbide and hollow drill bits).
- ICC-ES ESR-3298 (compliance for hole drilling).
Contact Information
For additional design and installation information, visit anchors.DEWALT.com or contact DEWALT at 701 East Joppa Road, Towson, MD 21286, or call (800) 524-3244.
Official resources from the manual
Manufacturer information
DEWALT
Practical help
Common problems
Dust accumulation in the drilled hole
Use the DustX+ system with a hollow drill bit and HEPA vacuum to clean the hole automatically while drilling.
Uncertainty regarding bond strength
Verify the drilling and cleaning method used. If using standard carbide bits, manual cleaning (blow/brush/blow) is required. If using DustX+, no reduction factor is applied.
Before use
- Verify the concrete type (dry cracked or uncracked normal weight concrete).
- Ensure drill bits meet ANSI B212.15 requirements.
- Confirm if using the DustX+ system or the traditional cleaning method.
- If using traditional method, ensure you have equipment for blowing and brushing the hole.
Specs in practice
- Bond Strength Reduction Factor (αhdb)
- A multiplier applied to the bond strength capacity based on the drilling and cleaning method used.
Images and diagrams

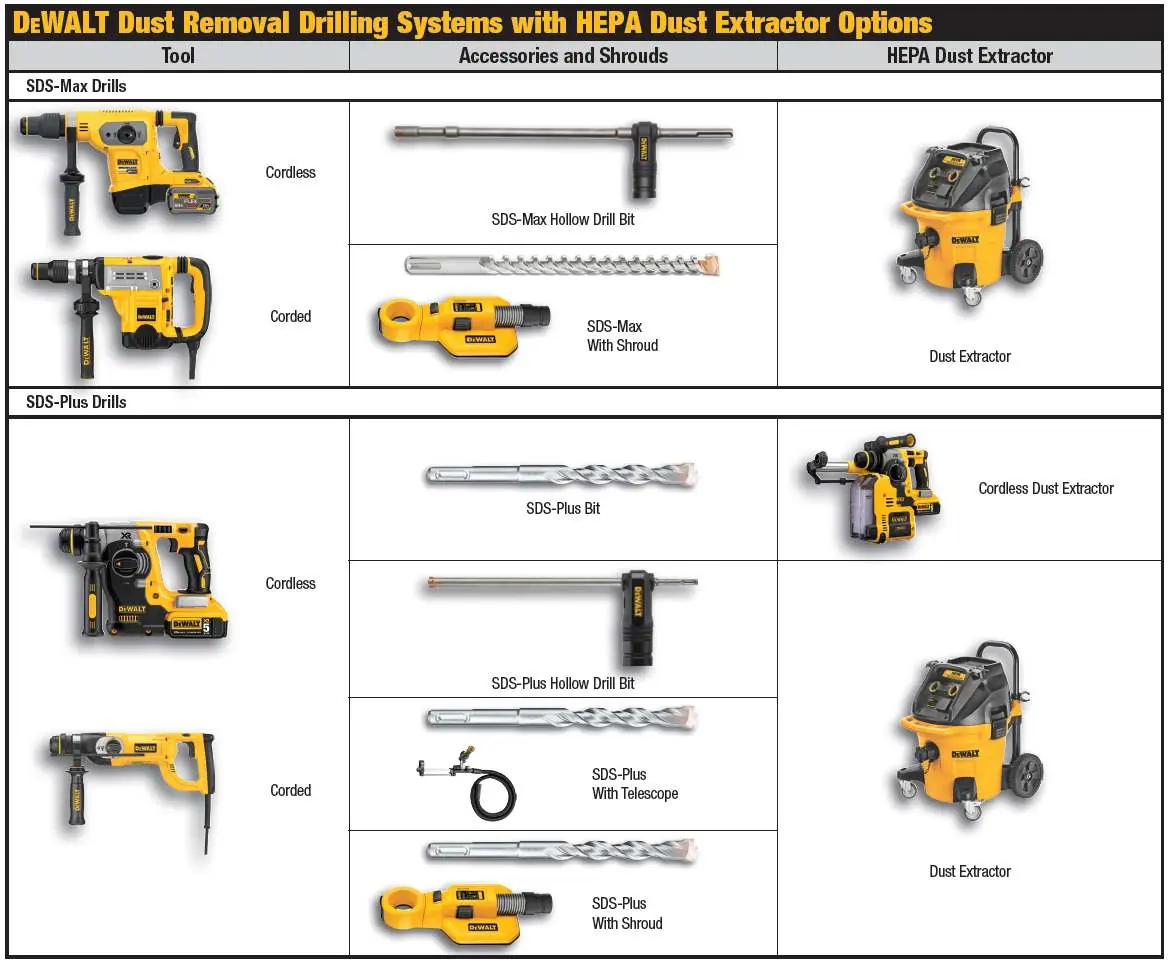

- The DustX+ system diagram illustrates the combination of a hammer-drill, hollow drill bit, HEPA vacuum, adhesive, and anchor required for the automatic dust extraction process.
Model compatibility
- DustX+ system is designed for use in dry concrete.
- Standard carbide drill bits and hollow drill bits must be ANSI B212.15 compliant.
