User Manual for DeWalt DXPW 001M and DXPW 002M High-Pressure Washer

Quick guide from the manual

This high-pressure washer is designed for domestic cleaning tasks such as washing vehicles, machines, boats, and masonry. It uses clean water and biodegradable chemical detergents to remove stubborn dirt.

Safety Rules

Warning: High-pressure jets can be dangerous if used incorrectly. Do not point the jet at people, animals, electrical equipment, or the unit itself. Always wear protective clothing (PPE) when operating the machine. Ensure the appliance is positioned on a firm, stable surface during operation.

Assembly and Installation

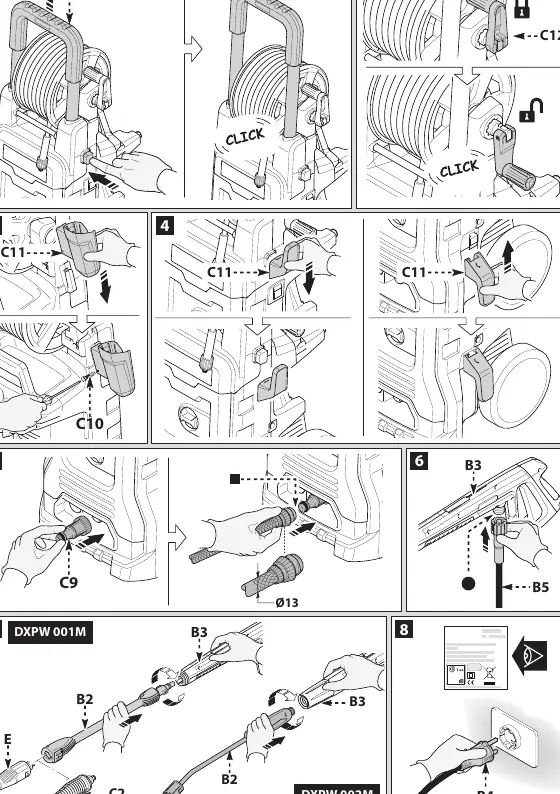

All installation and assembly operations must be performed with the appliance disconnected from the mains power supply. The assembly sequence is illustrated in the manual (Fig. 2).

Electrical and Water Connection

• Electrical: Ensure the electrical supply voltage and frequency correspond to those specified on the data plate. Use only approved electrical extension leads with suitable conductor cross-sections.
• Water: Only clean or filtered water should be supplied. The flow rate of the water inlet tap should be equal to the pump flow rate. If connecting to the mains drinking water supply, the hose must be fitted with a backflow preventer valve as per current regulations.

Operation

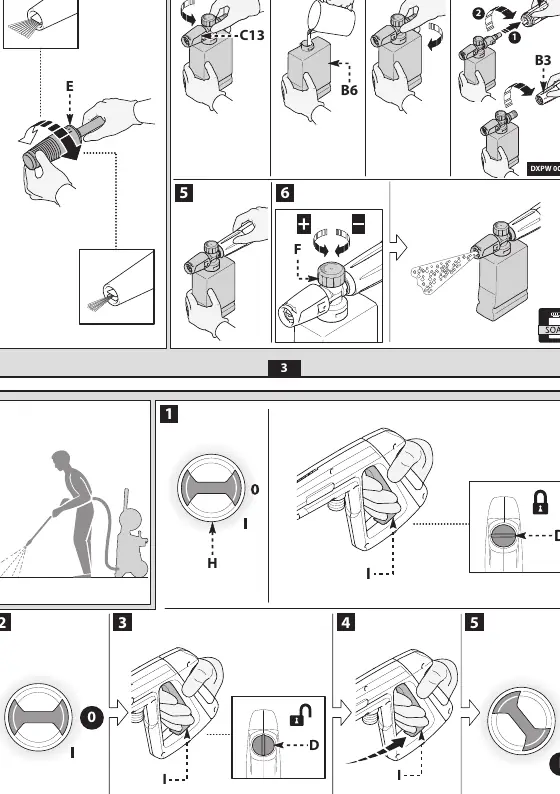

To start the machine: turn on the water supply tap fully, release the safety catch (D), depress the gun trigger for a few seconds, and start the appliance using the starter device (ON/I). To stop, set the starter device to (OFF/0), depress the gun trigger to discharge residual pressure, and engage the safety catch.

Maintenance and Storage

Always disconnect the plug from the power socket before carrying out any work on the appliance. Inspect the power cable, high-pressure hose, fittings, trigger gun, and lance at each use. Clean the nozzle and inlet filter regularly. Before end-of-season storage, run the machine with non-aggressive, non-toxic antifreeze and store in a dry place protected from frost.

How to Avoid Damaging Surfaces

High pressure is not always the best solution for cleaning, as it may damage some surfaces. Never point the high-pressure jet straight at tyres. Always use the lowest pressure setting when cleaning near wheels and tyres. Never use the "Turbo Lance" for washing any part of a vehicle.
