User Manual for Dogtra ARC E-Collar Training System
Comprehensive user guide for the Dogtra ARC e-collar training system. Includes setup, operation, charging instructions, safety warnings, and troubleshooting tips.
Quick answers from the manual
Quick answer
- The Dogtra ARC is an e-collar training system. To operate, turn on the transmitter and receiver, fit the receiver snugly on the dog's neck, and use the transmitter buttons to send stimulation (Nick/Constant) or vibration (Pager) to the dog. p. 9, 10, 12
Key actions
- Turn on the transmitter by holding the side button; turn on the receiver by touching the red dots together. p. 9
- Charge the unit for 2 hours using the provided charger. p. 15, 16
First start
- Charge the unit for 2 hours, fit the receiver properly, and test with the test light. p. 15, 20
Problems and fixes
Dog not reacting
Check fit, contact points, and intensity level.
p. 25Maintenance and reset
- Rinse the receiver and clean out dirt after use; store at room temperature. p. 24
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Range | 3/4 mile | Maximum operating distance. | p. 6 |
| Stimulation Levels | 0-127 | Intensity range. | p. 6 |
| Charging Time | 2 hours | Time to full charge. | p. 6 |
Where to find it in the PDF
- Components p. 5
- Operation p. 9, 10
- Charging p. 15, 16
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Dogtra ARC is an e-collar training system designed for dogs as small as 15 lbs. Before using the system, ensure the unit is fully charged (2 hours). The receiver must be fitted snugly so that the contact points touch the dog's skin. Always start with the lowest stimulation level and adjust based on your dog's temperament.
Product Overview
The system consists of a handheld transmitter and a receiver collar. The transmitter features a Rheostat Dial for stimulation levels (0-127), a Nick/Constant toggle switch, and dedicated buttons for stimulation and vibration (Pager).
Turning the system on and off
Transmitter: Hold down the button on the right side of the transmitter until the LCD screen illuminates to turn it on. Repeat to turn it off.
Receiver: Place the magnetic red dot on the back of the transmitter against the red dot on the receiver. Hold them together until the LED light on the receiver turns on. Repeat the procedure to turn the receiver off.
Receiver Fitting
The receiver should be fitted so that the surgical stainless steel contact points press firmly against the dog's skin. You should be able to fit two fingers underneath the collar strap. The best location is on either side of the dog's windpipe. Periodically reposition the receiver to prevent skin irritation.
Charging the Battery
The system uses a lithium polymer battery. Recharge the unit if the indicator light is red, the transmitter LCD shows only 1 bar, or the system will not stay on. Use only Dogtra-approved chargers. A full charge takes 2 hours. When not in use, disconnect the charger from the power source.
Transmitter Button Functions
- Nick: Emits a single pulse of electrical stimulation.
- Constant: Emits continuous stimulation for as long as the button is pressed (up to 12 seconds).
- Pager: Provides vibration for as long as the button is pressed (up to 12 seconds).
Maintenance
After each training session, inspect the unit for missing parts or damage. Rinse the receiver and clean out any dirt or debris. Ensure the rubber charging cap is securely in place when the receiver is in use. Store the unit at room temperature and fully charge it before storing for extended periods.
Troubleshooting
If the unit is malfunctioning, check the following: ensure the receiver and transmitter are turned on, verify the collar strap is tight enough, check if the contact points are too short for the dog's coat, or increase the intensity level. If the test light works but you feel no stimulation, check your own tolerance or the battery level.
Manufacturer information
Dogtra
Practical help
Common problems
Dog is not reacting to the receiver
Ensure the receiver is turned on, the collar strap is tight enough for contact points to touch the skin, or increase the intensity level.
Test light works, but no stimulation felt
Your tolerance may be higher than the dog's; test on your inner wrist. Also, check if the battery is low.
No range or stimulation is less when the dog is farther away
Check for damaged antenna, terrain interference (hills, trees), or electrical conductors (metal structures, cars) nearby.
Unit is not holding a charge
Check if the charging port is clean and the charging pin is intact. Ensure the charger and splitter are functioning.
Before use
- Charge the unit for 2 hours before the first use.
- Ensure the receiver is fitted properly (two fingers under the strap).
- Check that the contact points are touching the dog's skin.
- Test the unit using the provided test light.
- Ensure the rubber charging cap is securely in place.
Specs in practice
- Rheostat Dial
- Adjusts stimulation intensity from 0 to 127.
Images and diagrams

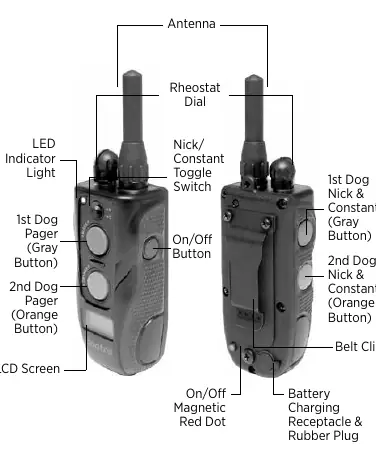

- Transmitter: Features Rheostat Dial, Nick/Constant toggle, and Pager buttons.
- Receiver: Features contact points, LED indicator, and charging port.
- Charging: Connect the splitter cable to the charging port and the wall charger.
Model compatibility
- For dogs as small as 15 lbs.
- Not intended for use with aggressive dogs.
- Use only Dogtra-approved chargers and accessories.
