User Manual for Draper 23722 12V 1200A Lithium Jump Starter and Tyre Inflator

Quick guide from the manual

This device is a portable 12V lithium jump starter with a built-in air compressor and flashlight. Important: You must charge the unit immediately after purchase and recharge it every 3 months to maintain battery performance. Do not use the jump starter to start damaged, bulging, or frozen car batteries. This unit is intended for 12V vehicles only (petrol engines up to 6L, diesel engines up to 4L).

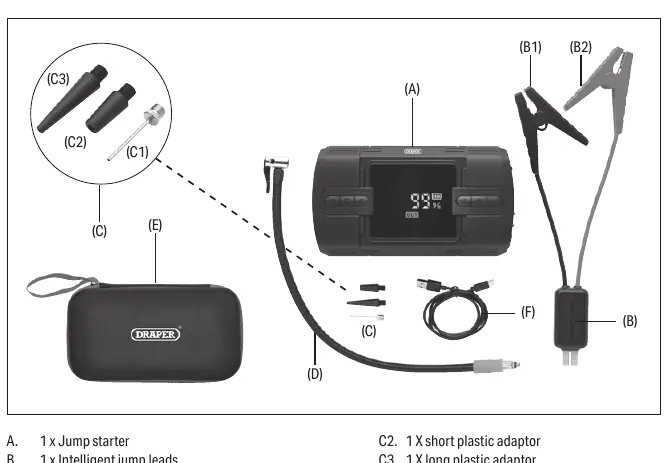

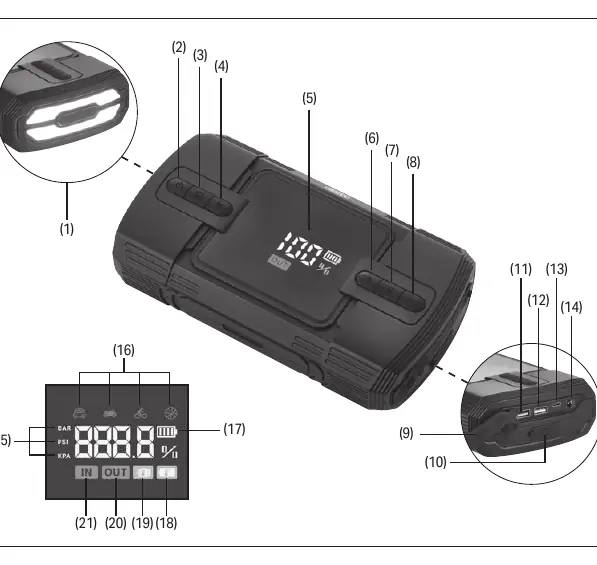

Product Overview

The device features a display screen, LED flashlight, and various ports. Key controls include the Power/light button, Tyre inflator button, Mode button, and pressure adjustment buttons (+/-). The unit includes a jump starter port, USB output ports for power bank functionality, and a USB-C input port for charging.

Charging the Product

To charge the jump starter, connect the provided USB-C cable to the USB-C input port and a suitable power supply. Charging takes approximately 3 to 3.5 hours. The 'IN' icon will flash during charging and stop when fully charged. Do not use the jump starter while it is charging.

Jump Starting the Vehicle

Before use, ensure the battery power is above 80%. 1. Insert the intelligent jump leads into the jump starter port. 2. With the engine off, connect the red clamp to the positive (+) terminal and the black clamp to the negative (-) terminal. 3. Press the Power button to turn on the unit. 4. Start the car engine. If unsuccessful after three attempts, stop and inspect the vehicle. 5. Once started, turn off the engine, remove the lead connector from the jump starter, and disconnect the clamps (negative first, then positive).

Air Compressor for Tyre Inflation

1. Connect the air hose to the socket on the jump starter and attach it to the tyre valve. 2. Turn on the unit and press the Mode button to select a preset or manually set the pressure using the +/- buttons. 3. Use the Unit button to switch between BAR, PSI, or KPA. 4. Press the Inflator button to start. The compressor will stop automatically when the preset pressure is reached.

Using the Flashlight

Press and hold the Power button for 3 seconds to turn on the light. Pressing the button repeatedly cycles through the modes: On/High, S.O.S, Strobe/flashing, and Orange light Flashing/Warning.

Maintenance and Troubleshooting

Keep the device clean and free from dust. Store in a dry, well-ventilated area, away from direct sunlight and out of reach of children. If the jump starter fails to start the engine, check that the battery level is above 80%, terminals are clean, and clamps are connected correctly. If the unit shows error indicators (e.g., solid red with beeping), refer to the troubleshooting section for specific protection modes like reverse polarity or over-heating.
