User Manual for Draper 90107 230V 15L Wet and Dry Vacuum Cleaner
Quick guide for the Draper 90107 230V 15L Wet and Dry Vacuum Cleaner. Includes assembly instructions, filter setup for wet/dry operation, maintenance tips, and troubleshooting.
Quick answers from the manual
Quick answer
- The Draper 90107 is a 15L wet and dry vacuum. For dry vacuuming, use the cloth filter (and optional paper bag). For wet vacuuming, use the foam filter. Always empty the tank when full or when switching modes. p. 4, 10, 11
Key actions
- Fitting castors p. 9
- Switching between wet and dry modes p. 11
First start
- Assemble castors, install correct filter, connect hose, and power on. p. 9, 10
Show 4 more answers Show less
Problems and fixes
Vacuum not operating
Check power supply, switch position, and tank fullness.
p. 13Maintenance and reset
- Clean filters with mild soap and water; empty tank after wet use. p. 13
Technical specifications
| Parameter | Value | Meaning | Pages |
|---|---|---|---|
| Rated Voltage | 230V/50Hz | Power supply requirement | p. 4 |
| Rated Input | 1250W | Power consumption | p. 4 |
| Tank Capacity | 15L | Total tank volume | p. 4 |
| Liquid Volume | 8L | Max liquid capacity | p. 4 |
Where to find it in the PDF
- Product Overview p. 7
- Assembly p. 9
- Operating Instructions p. 11
Table of contents
Manual images
Click an image to enlargeQuick guide from the manual
The Draper 90107 is a 15L wet and dry vacuum cleaner designed for workshop, garage, and home DIY use. Always ensure the correct filter is installed before operation: use the cloth filter (with optional paper bag) for dry vacuuming and the foam filter for wet vacuuming. Never use the cloth filter for liquids.

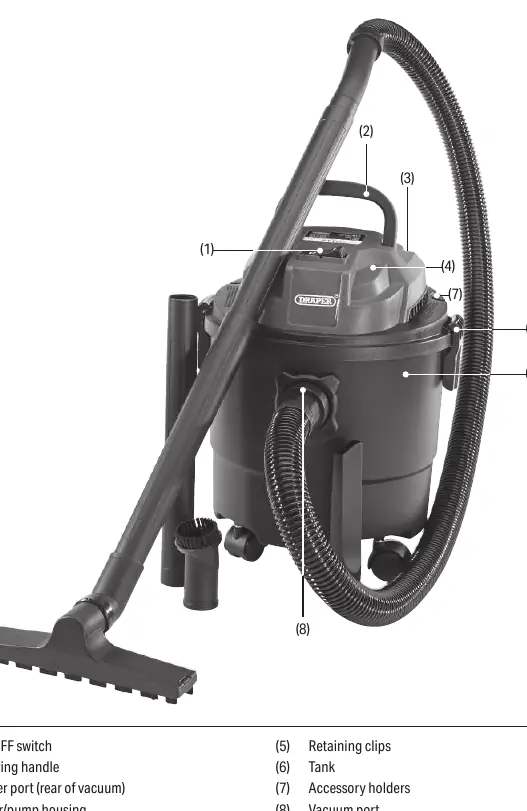

Product Overview
The vacuum consists of a motor/pump housing, a 15L tank, and various accessories. Key components include the ON/OFF switch, blower port, vacuum port, and retaining clips that secure the motor housing to the tank.
Assembly Instructions
Before assembly, ensure the unit is unplugged. Remove all accessories from inside the tank. To fit the castors, firmly press the four castors into the underside of the tank base.
Setting Up the Vacuum Cleaner
To prepare the vacuum for use:
- Release the retaining clips and lift off the motor housing.
- Install the appropriate filter: Cloth filter and paper bag for dry vacuuming; foam filter for wet vacuuming.
- Refit the motor housing and secure with the retaining clips.
- Push the flexible hose into the vacuum port, align the notch with the arrow, and turn anticlockwise to lock.
- Attach the required extension tubes and floor brush.
Operating Instructions
Dry Vacuuming
Fit the cloth filter over the filter cage, ensuring it is pushed down securely. For improved filtration, you may also fit a paper dust bag. Do not use the cloth filter for liquid vacuuming.
Wet Vacuuming
Remove the dust bag and cloth filter if fitted. Fit the foam filter by sliding the foam sleeve completely over the filter/float cage. When vacuuming large quantities of liquids, use the crevice tool and do not immerse the nozzle completely to maintain airflow. The vacuum features a float valve that will cause the motor to become noisier when the tank is full.
Blower Function
Ensure the vacuum is switched off and the tank is empty. Connect the flexible hose to the blower port at the rear of the vacuum, aligning the notch and turning anticlockwise to lock.
Maintenance and Troubleshooting
Always unplug the device before maintenance. Clean the cloth or foam filter with mild soap and water and allow to dry before refitting. Do not use abrasives or solvents. If the vacuum is not operating, check the power supply, the switch position, and ensure the tank is not full. If dust escapes from the motor housing, check that the cloth filter is correctly fitted or replaced.
Technical Specifications
- Rated Voltage: 230V/50Hz
- Rated Input: 1250W
- Tank Capacity: 15L
- Liquid Volume: 8L
- Maximum Vacuum Pressure: 15Kpa (150mbar)
- Protection Rating: IPX4
- Net Weight: 4.8kg
Manufacturer information
Draper Tools
Practical help
Common problems
Vacuum not operating
Check power supply, ensure switch is in 'I' position, and empty the collection tank if full.
Dust coming from motor housing
Check that the cloth filter is installed correctly or replace it if damaged.
Reduced efficiency and noisy motor
Empty the tank, check for blockages in the hose or tool, or clean/replace the filter.
Before use
- Ensure the vacuum is unplugged before assembly or maintenance.
- Remove all accessories from inside the tank.
- Install the correct filter (Cloth for dry, Foam for wet).
- Ensure the hose is locked into the port.
- Check that the tank is empty before using the blower function.
Show more Show less
Specs in practice
- Tank Capacity
- 15L total volume.
- Liquid Volume
- 8L maximum liquid capacity.
- Protection Rating
- IPX4 (splash-proof).
Images and diagrams
- Parts overview showing switch, handle, blower port, and tank.
- Filter installation steps for dry vs wet modes.
- Hose connection and locking mechanism.
Model compatibility
- Cloth filter is NOT suitable for wet vacuuming.
- Foam filter is NOT suitable for dry vacuuming.
- Use only recommended parts and attachments.
